Variable Gear Ratio Steering System









STEERING COLUMN: VARIABLE GEAR RATIO STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, proceed to the information for the respective "DTC No." in the following DTC chart.

Variable Gear Ratio Steering System

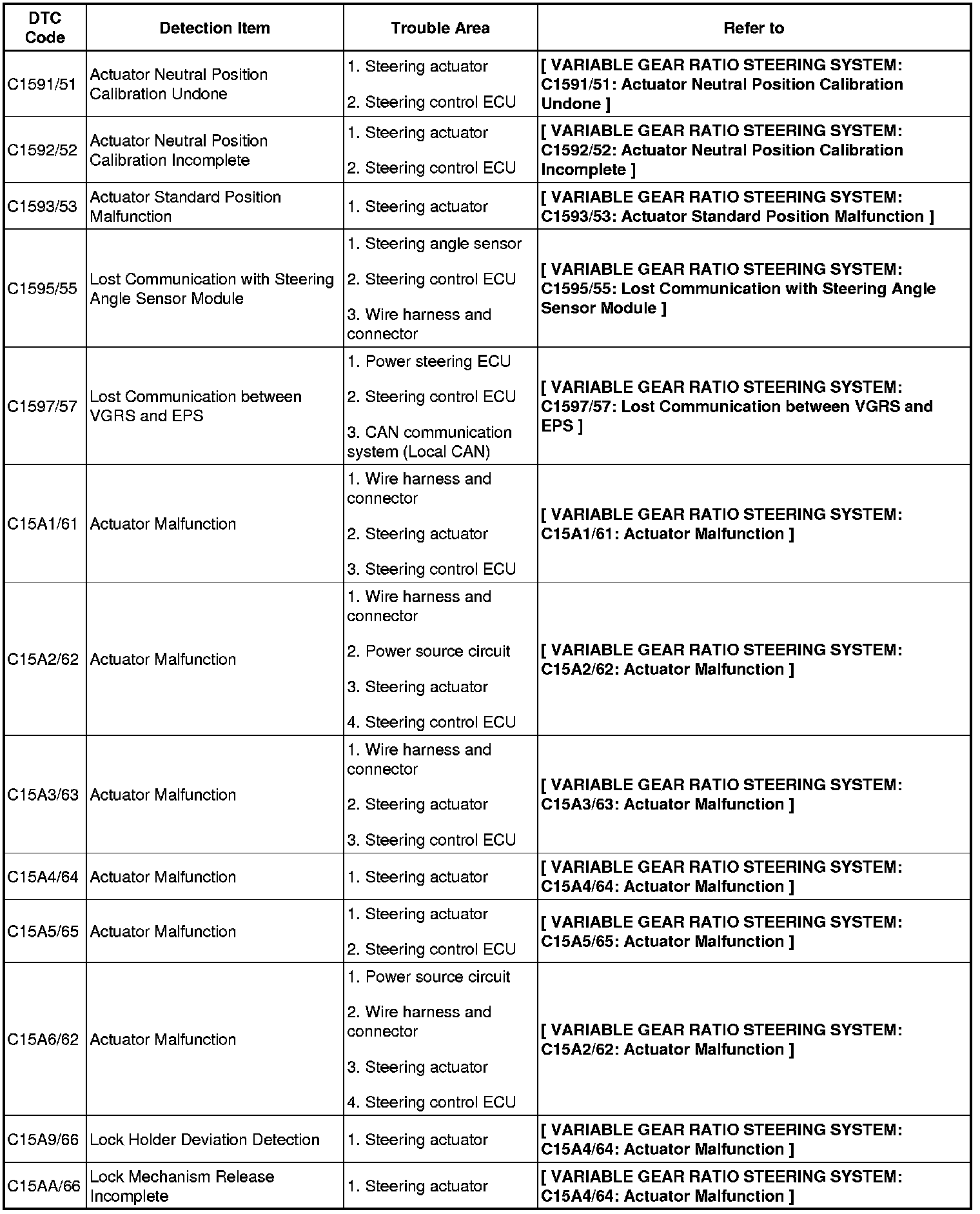

C1591/51 - C1597/57, C15A1/61 - C15AA/66:

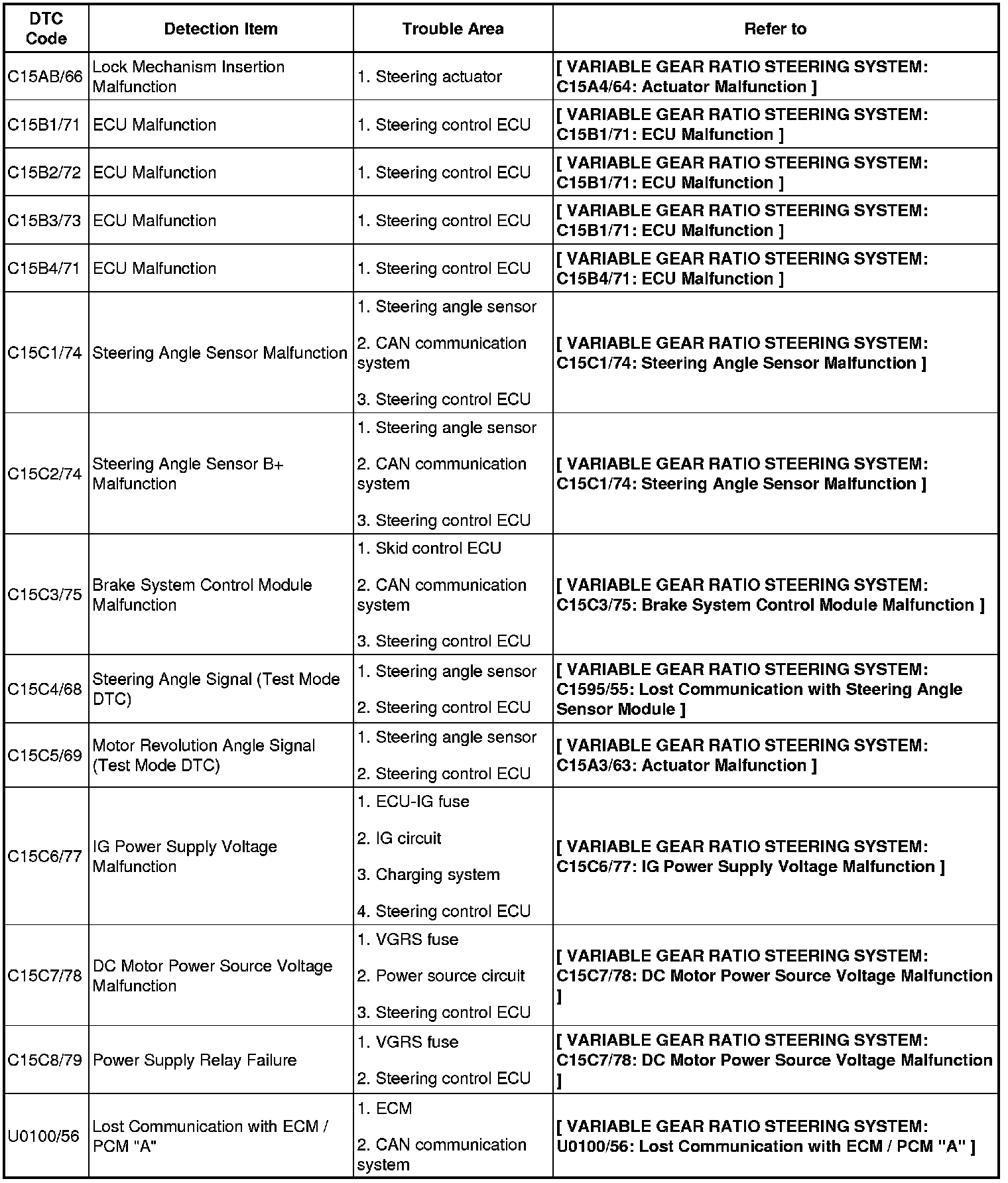

C15AB/66 - C15C8/79, U0100/56:

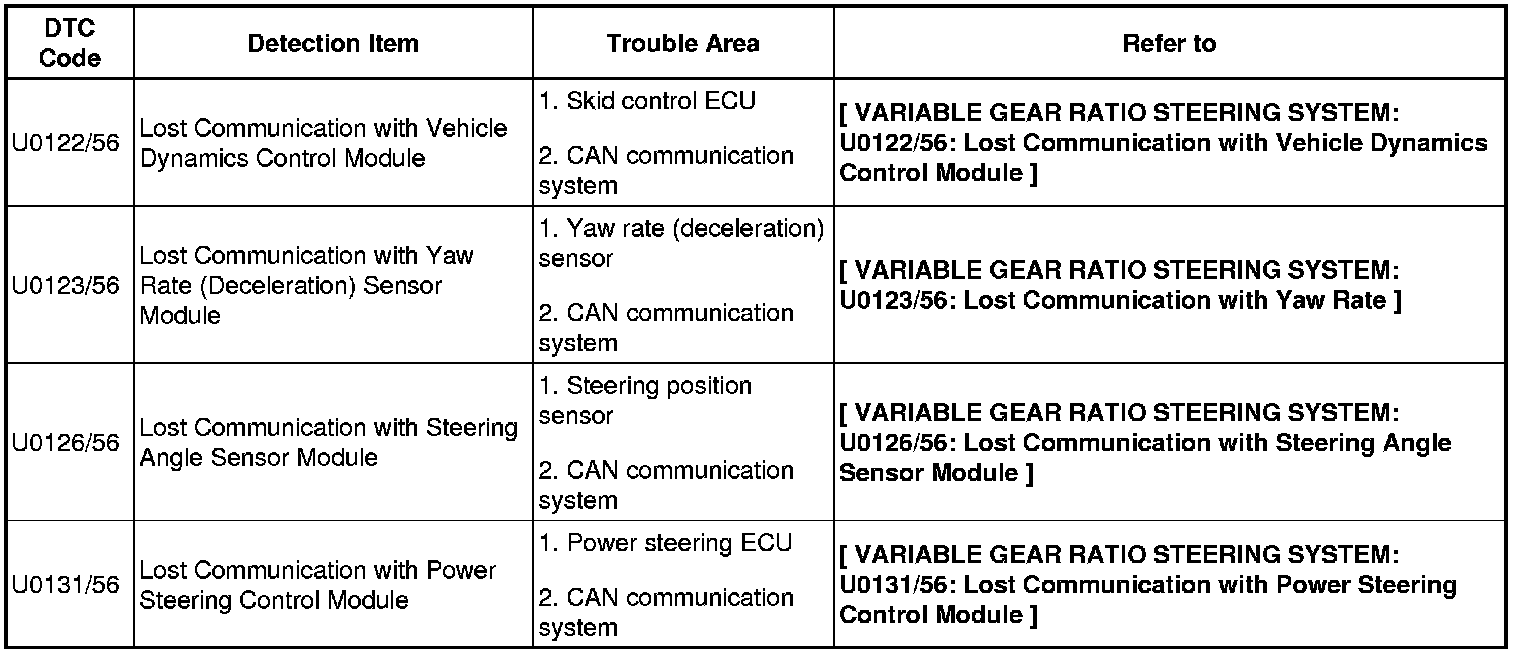

U0122/56 - U0131/56:
