Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
- If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to "See below" .
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

DTC chart of ABS:

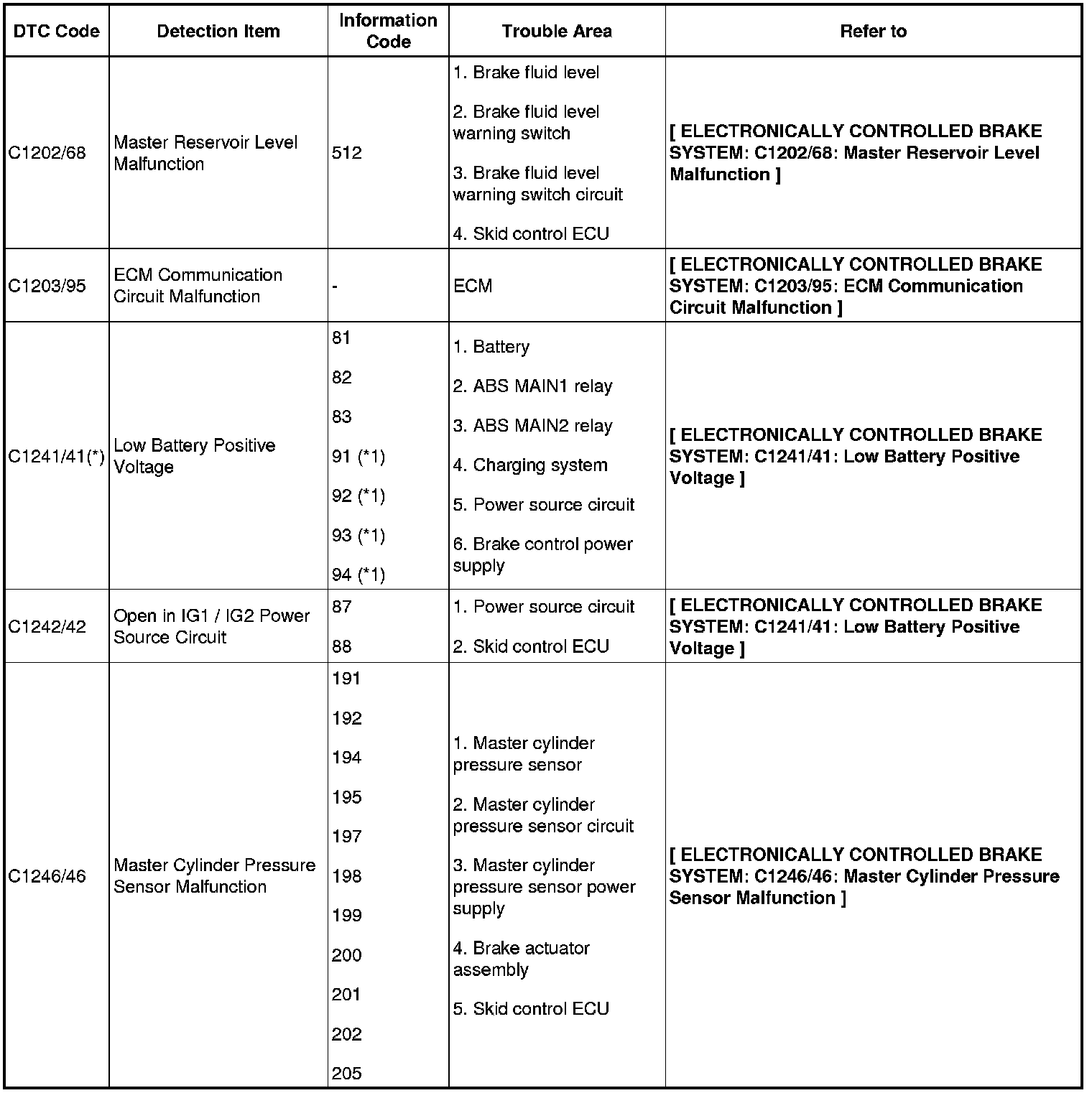

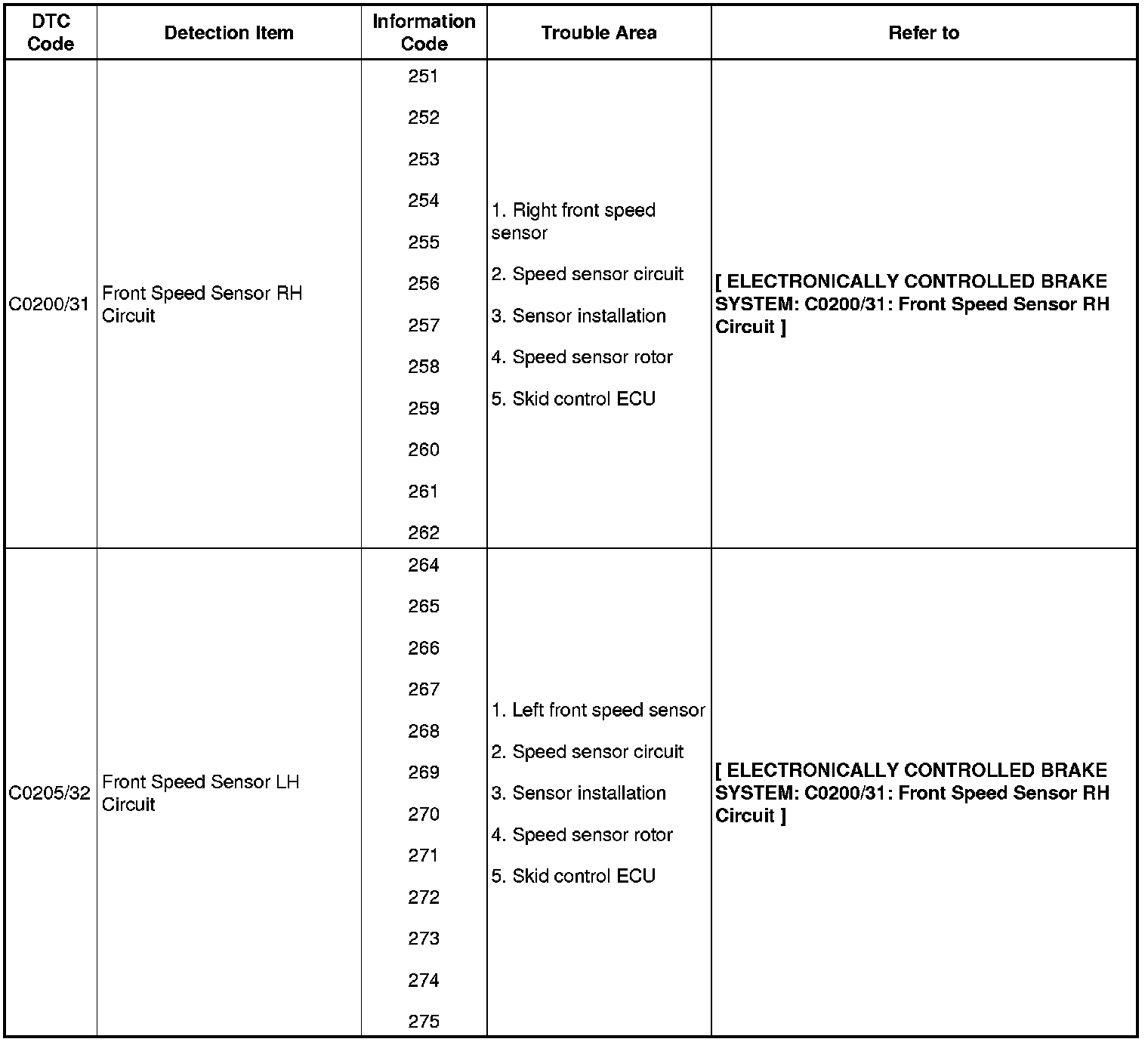

C0200/31 - C0205/32:

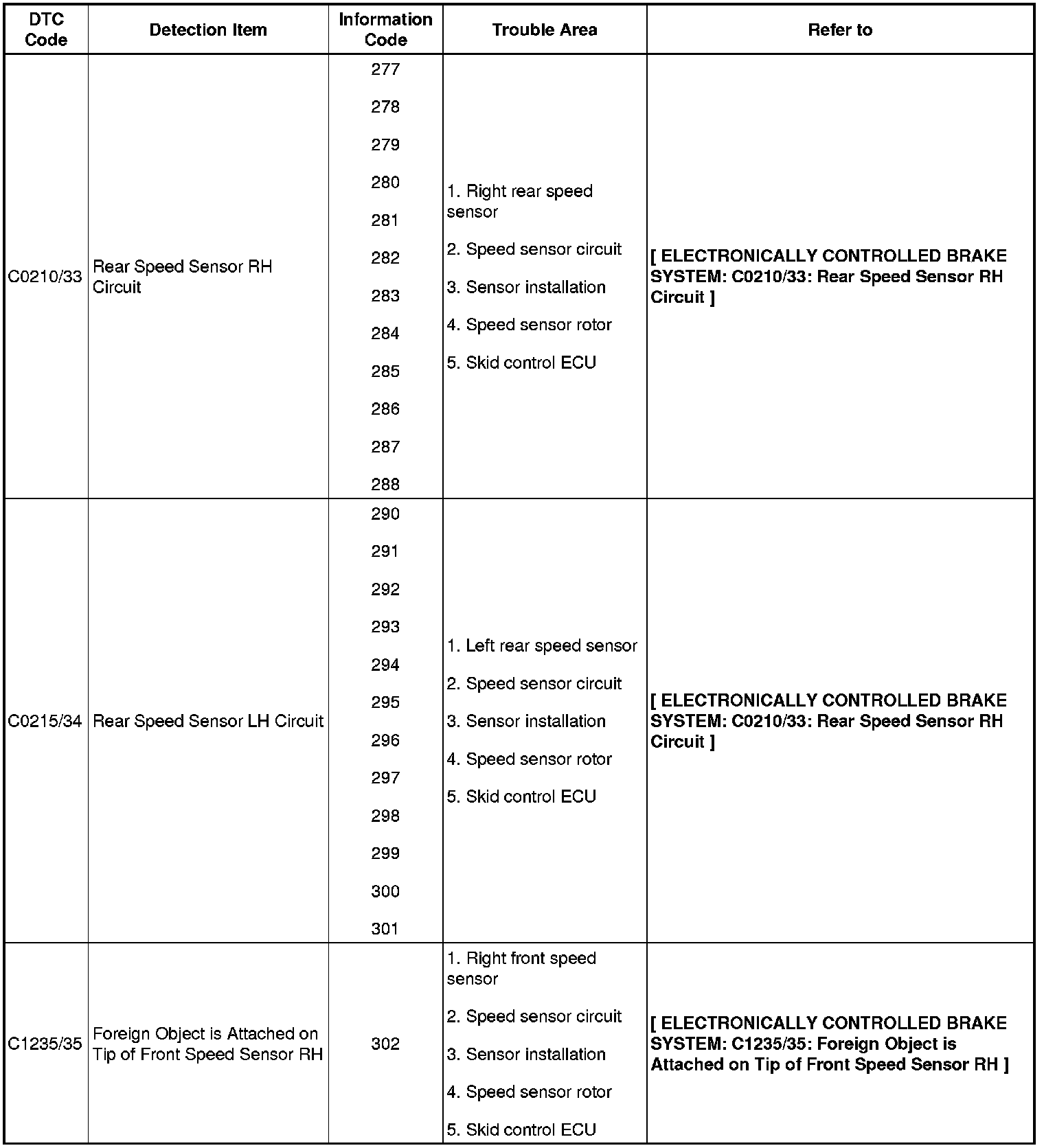

C0210/33 - C1235/35:

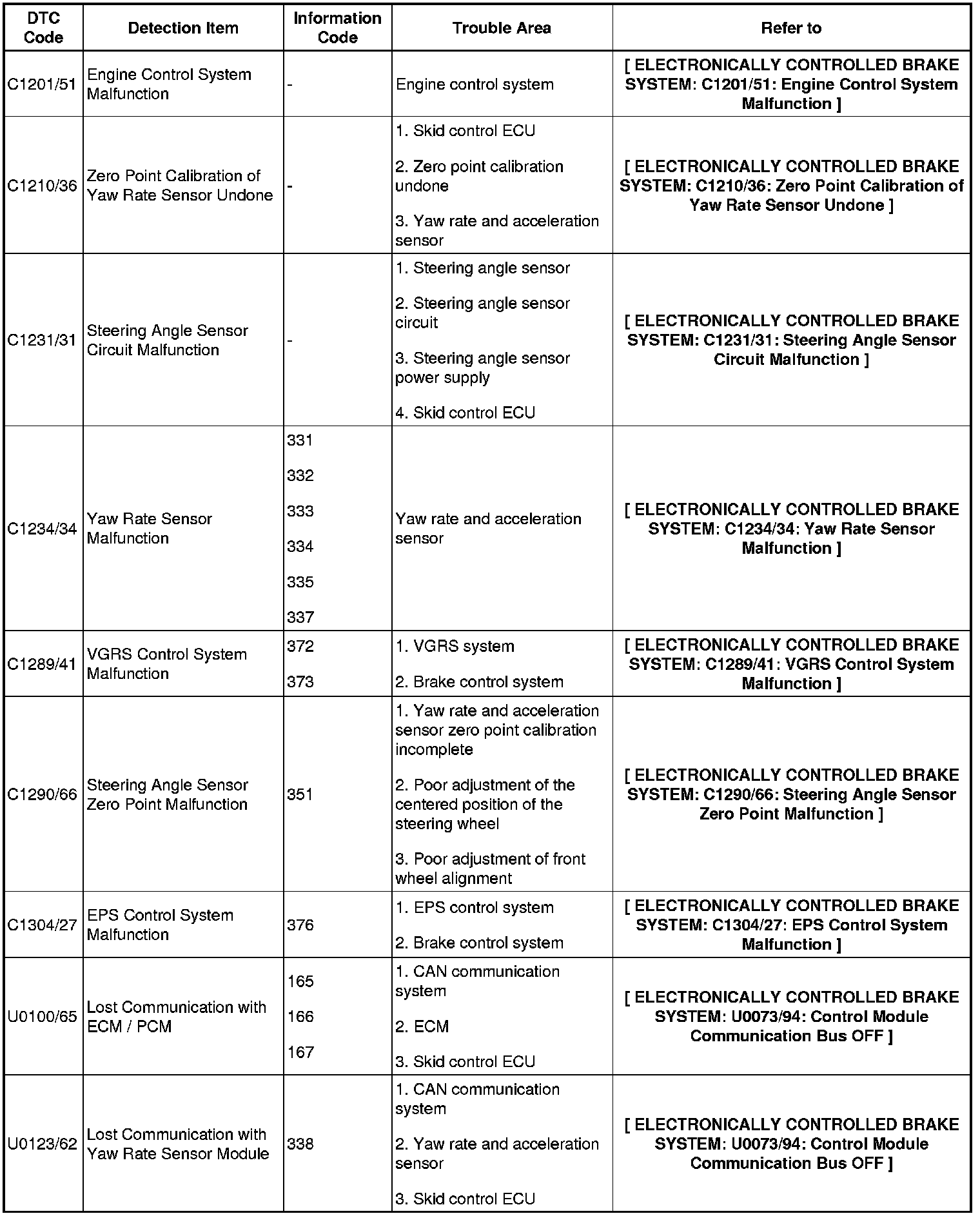

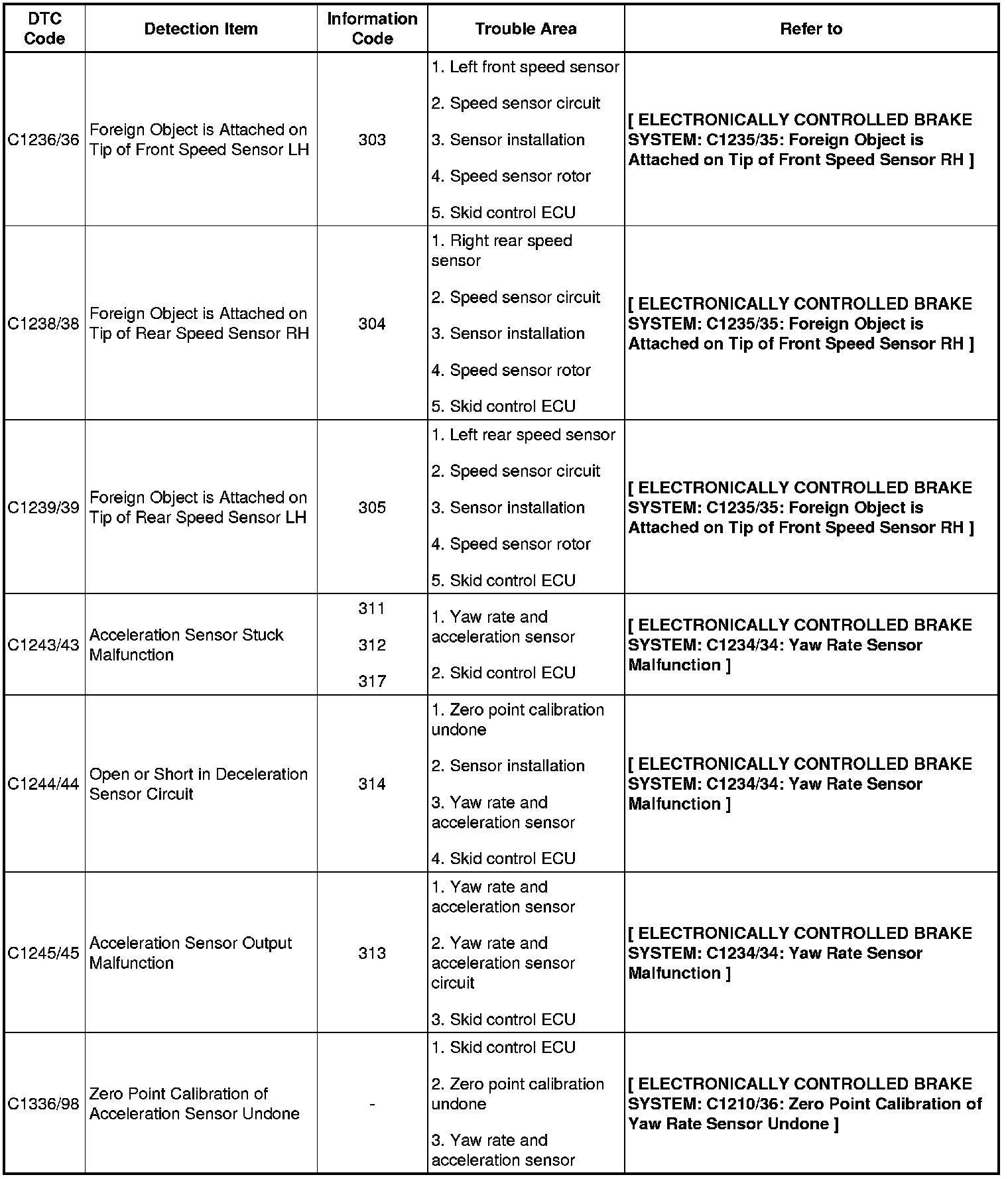

C1236/36 - C1336/98:

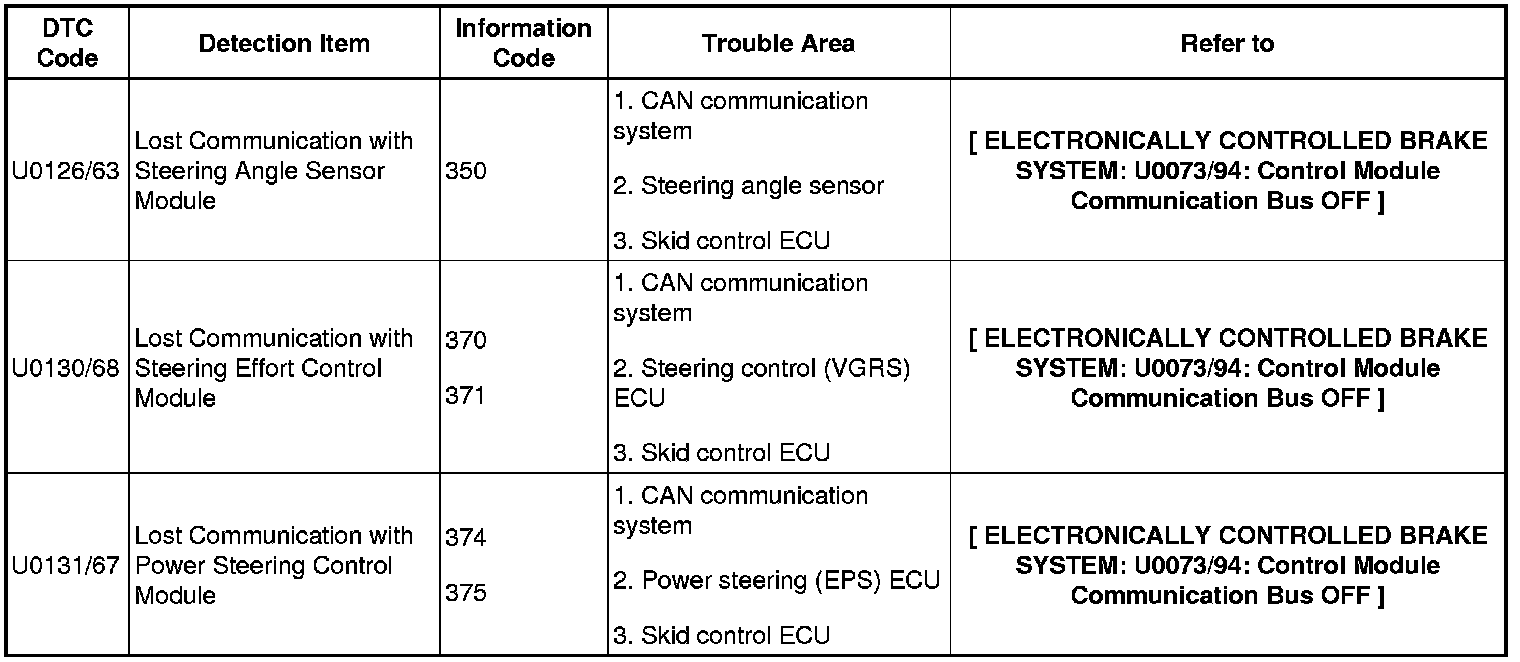

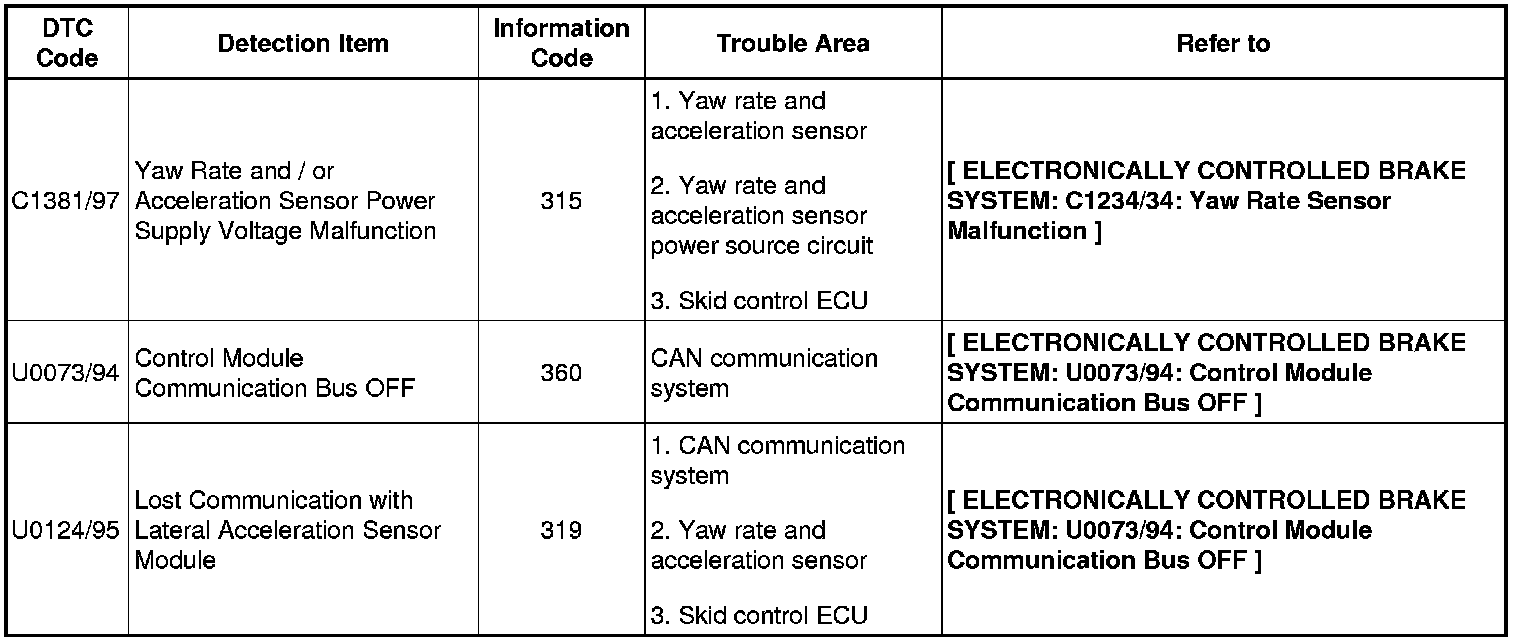

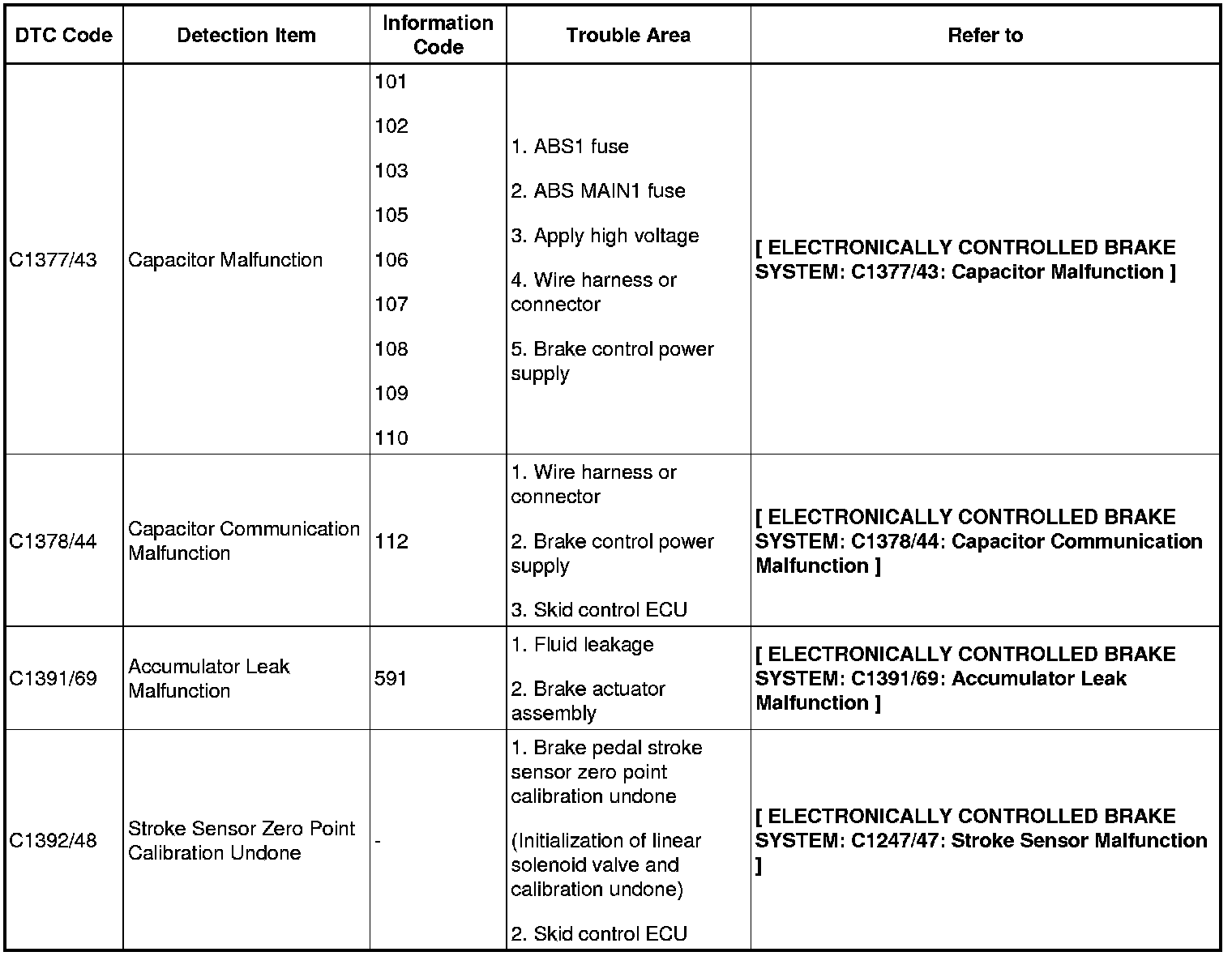

C1381/97, U0073/94 - U124/95:

1 Drive the vehicle at the speed of 50 km/h (31 mph) and depress the brake pedal strongly for approximately 3 seconds.
2 Repeat the above operation 3 times or more and check that the ABS warning light goes off.
3 Clear the DTC.
HINT:
- In some cases, the Techstream cannot be used when the ABS warning light remains on.
- When U0073/94, U0100/65, U0123/62, U0124/95, U0126/63, U0130/68 or U0131/67 is output, inspect and repair the trouble areas indicated by these codes first.

DTC chart of VSC:

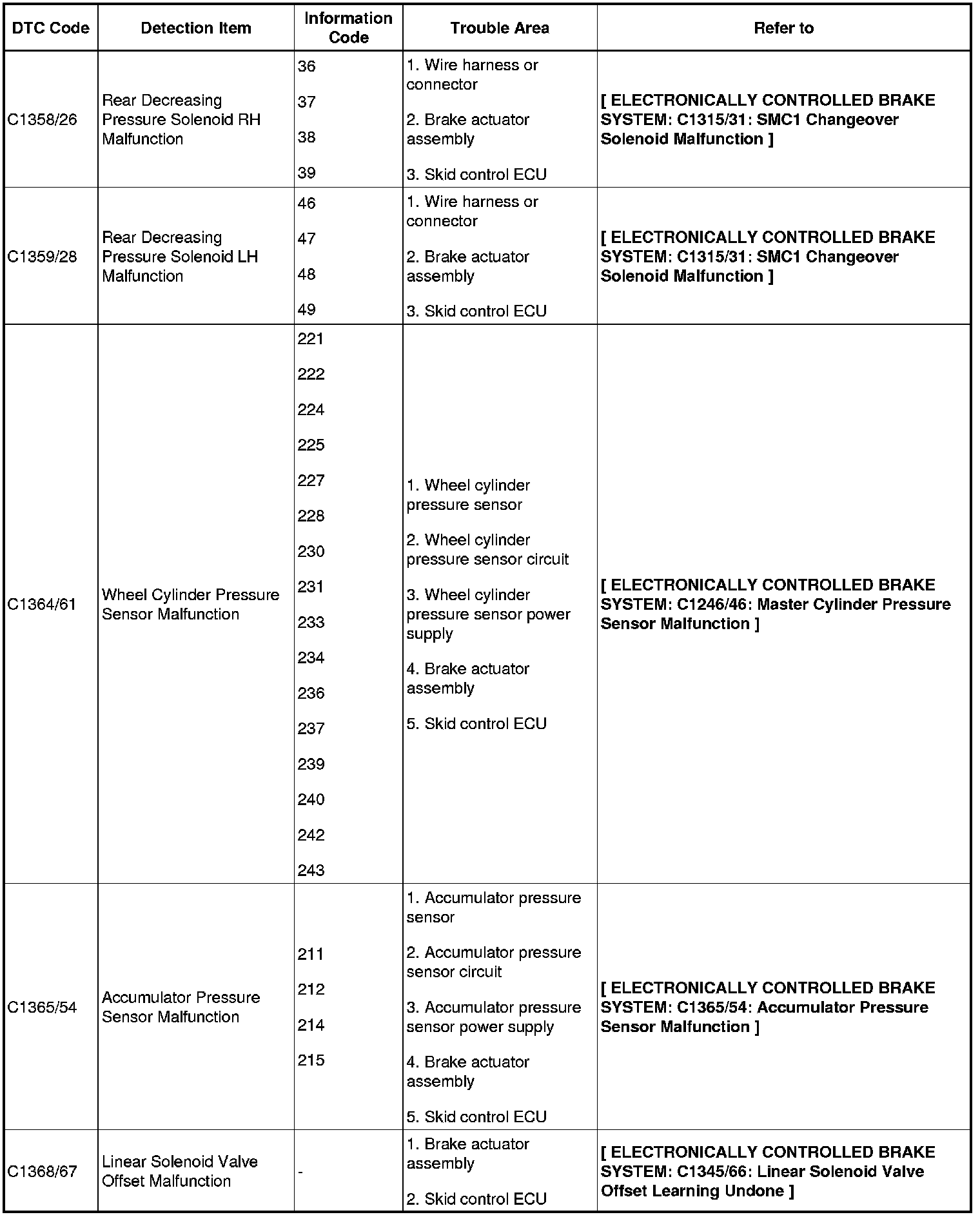

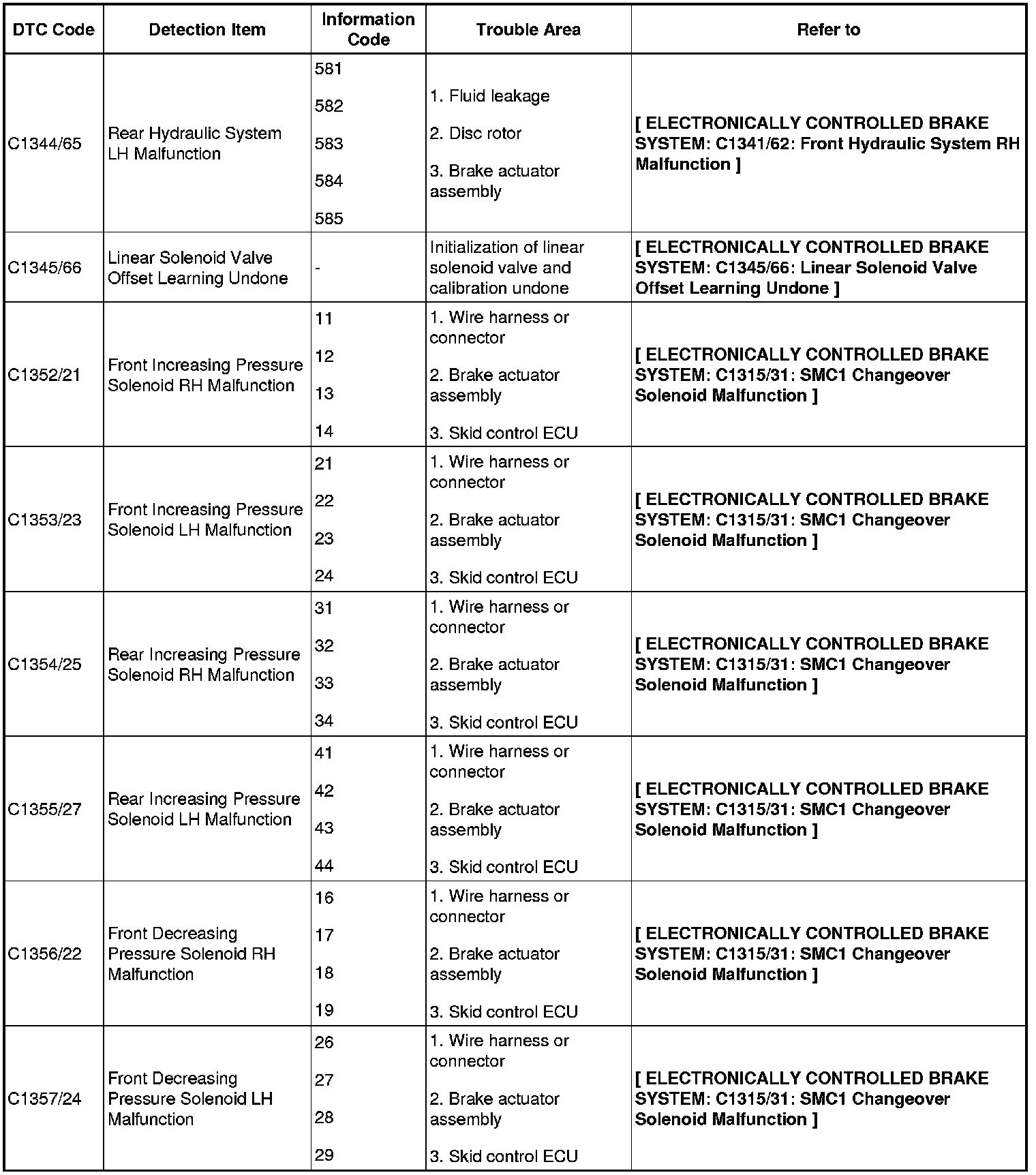

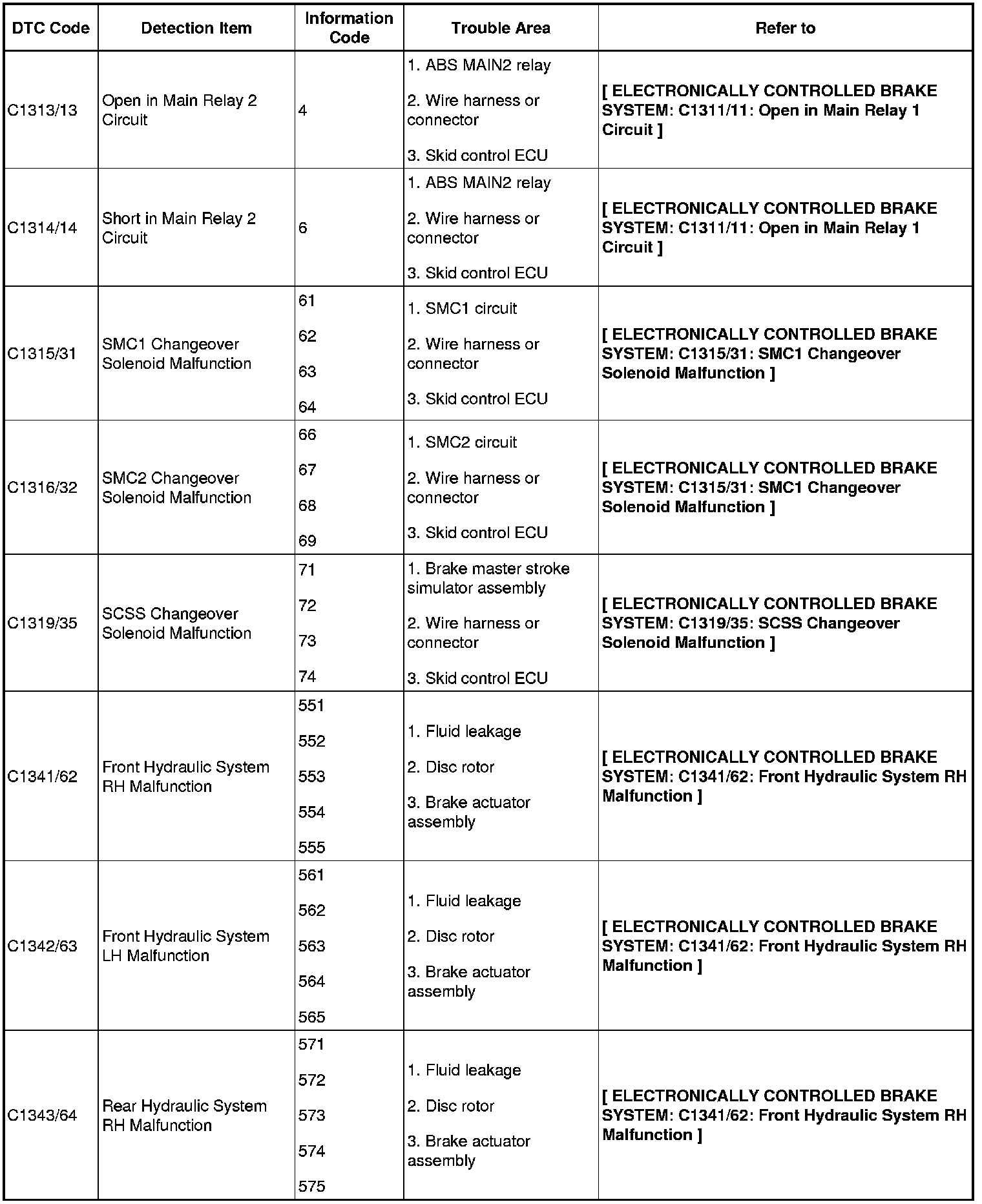

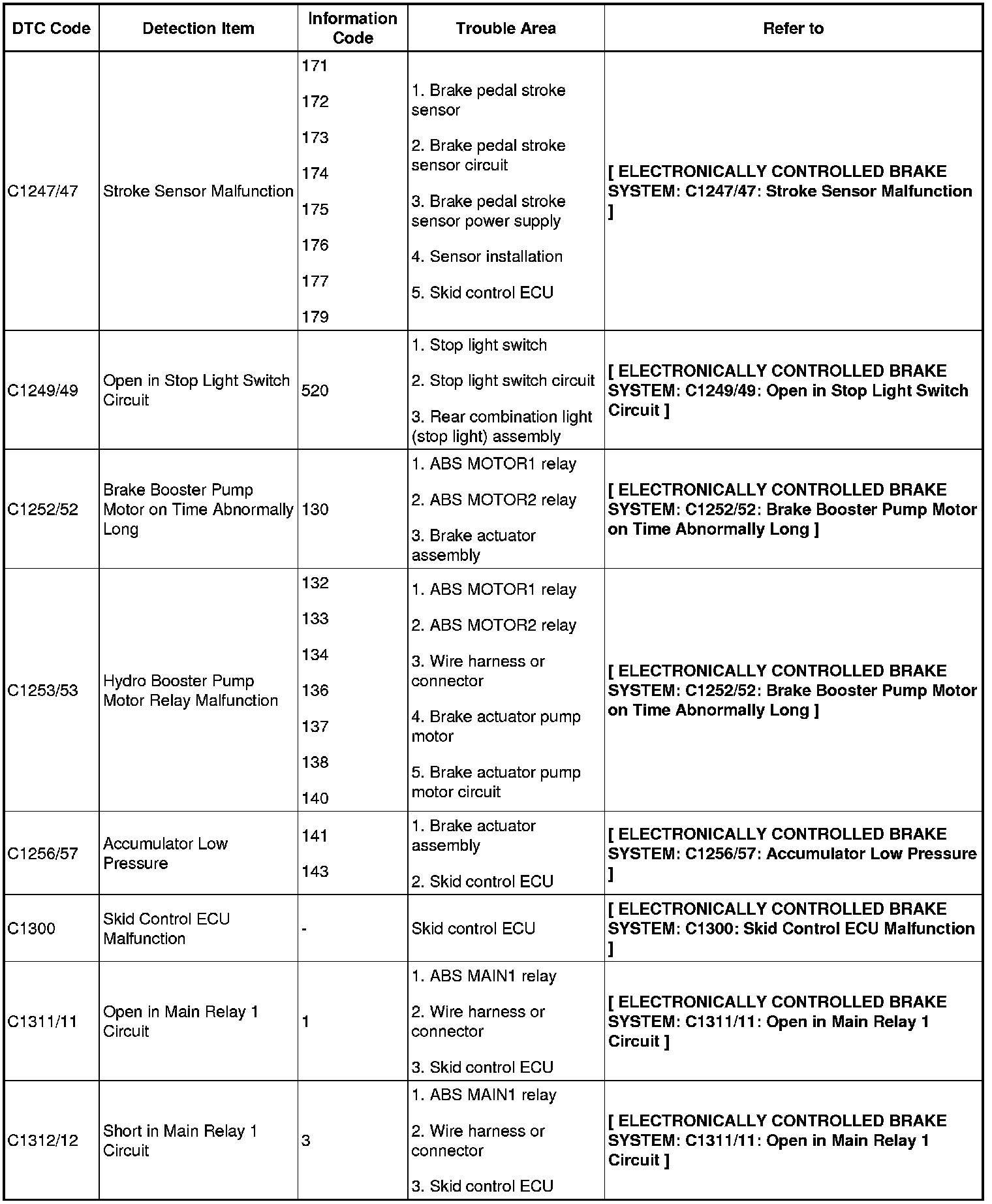

DTC chart of Electronically Controlled Brake System:

























(*1): These codes are displayed to indicate the ABS and Electronically Controlled Brake System DTCs.

Test mode DTC of ABS:

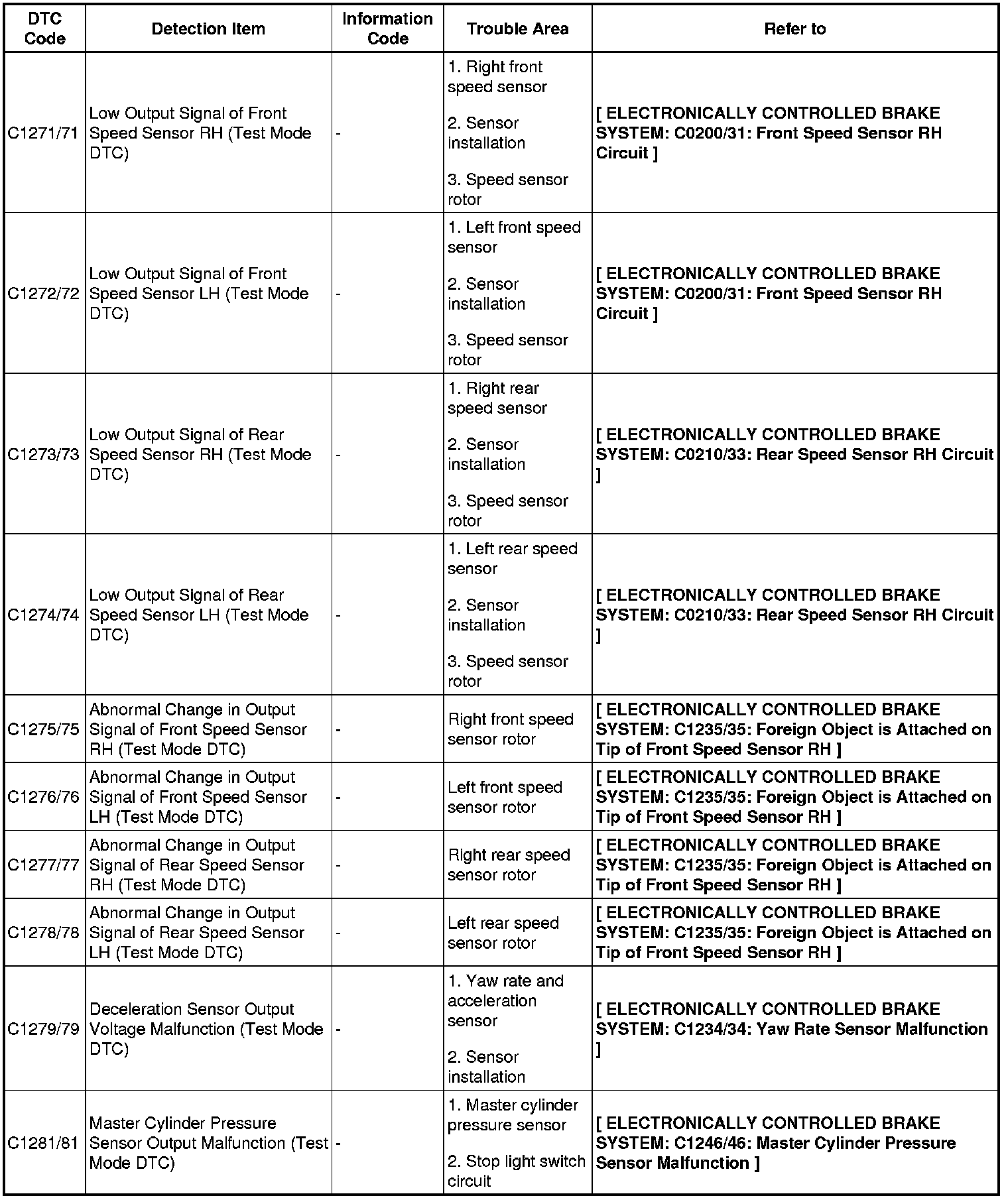

Test mode DTC of VSC:

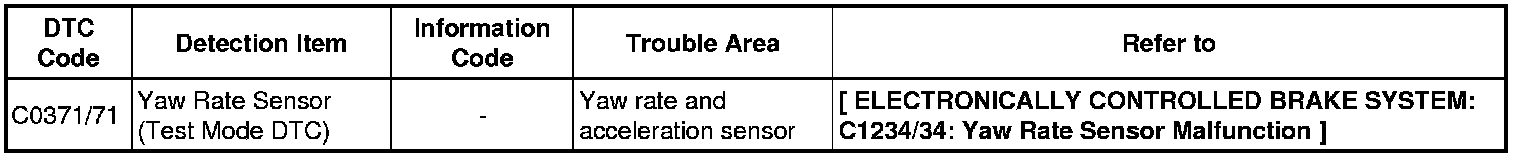

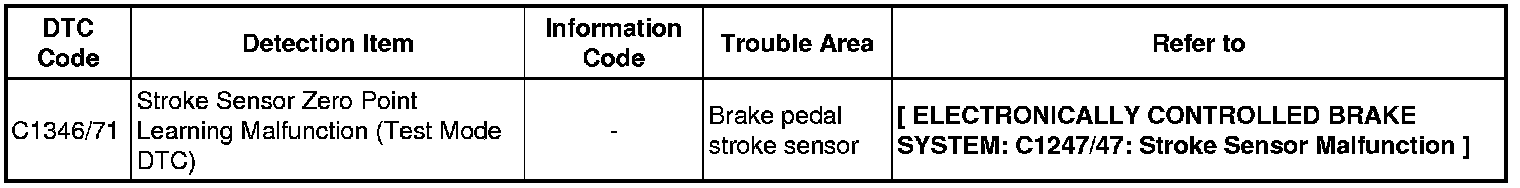

Test mode DTC of Electronically Controlled Brake System:
