Home >> Lexus >> 2008 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Dynamic Radar Cruise Control System

Dynamic Radar Cruise Control System









CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate information.

Dynamic Radar Cruise Control System

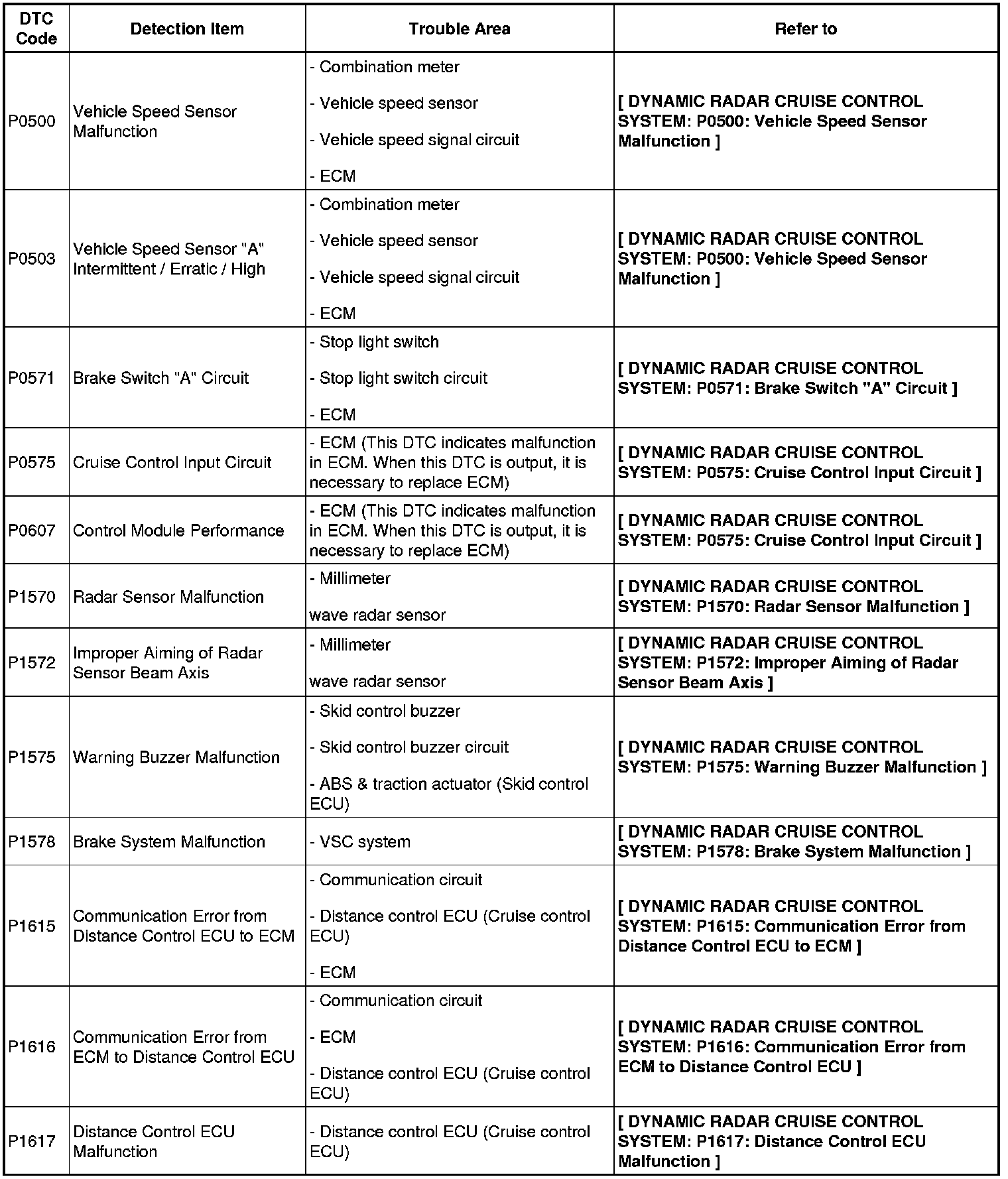

P0500 - P1617:

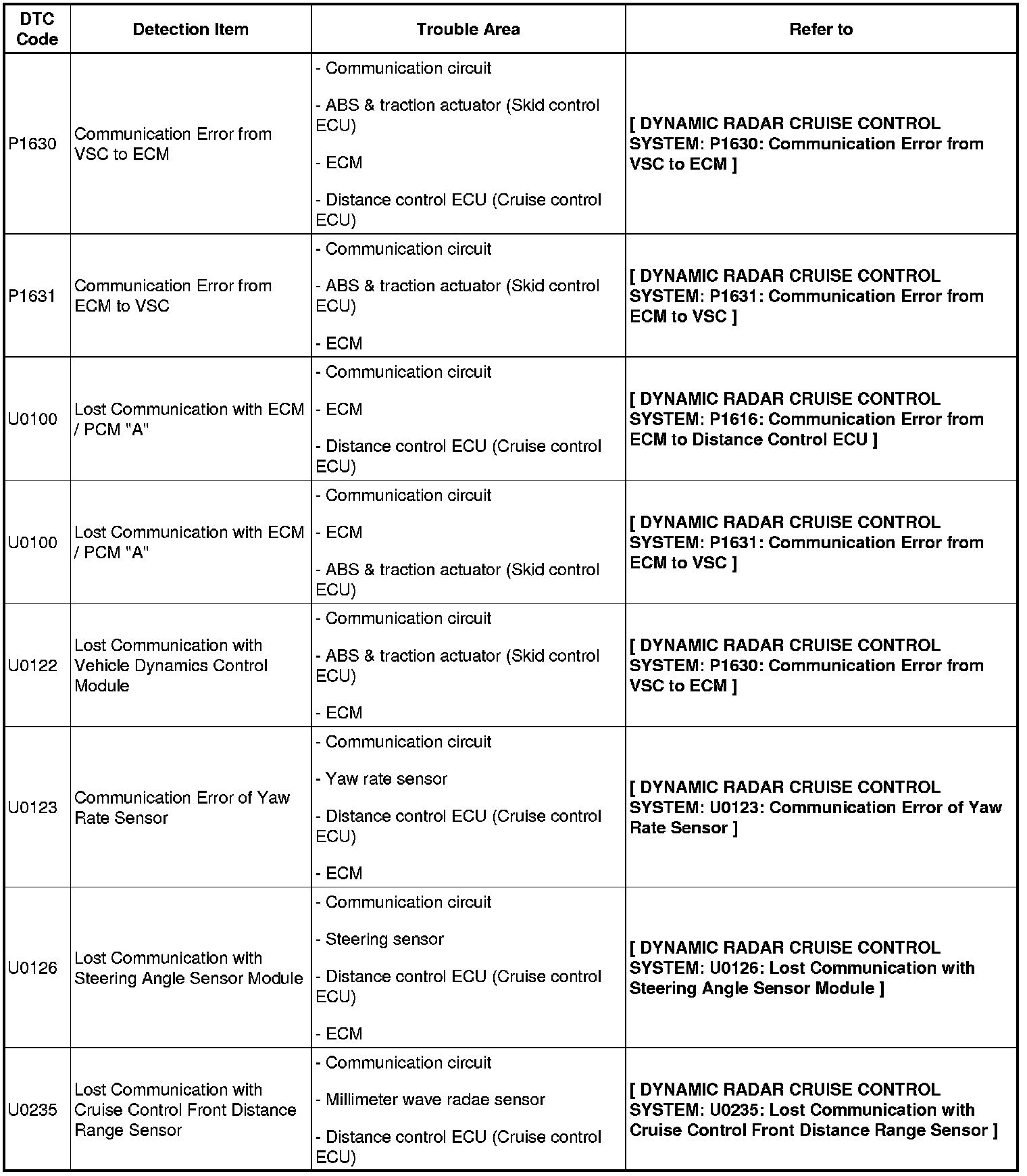

P1630 - P1631, U0100 - U0235:

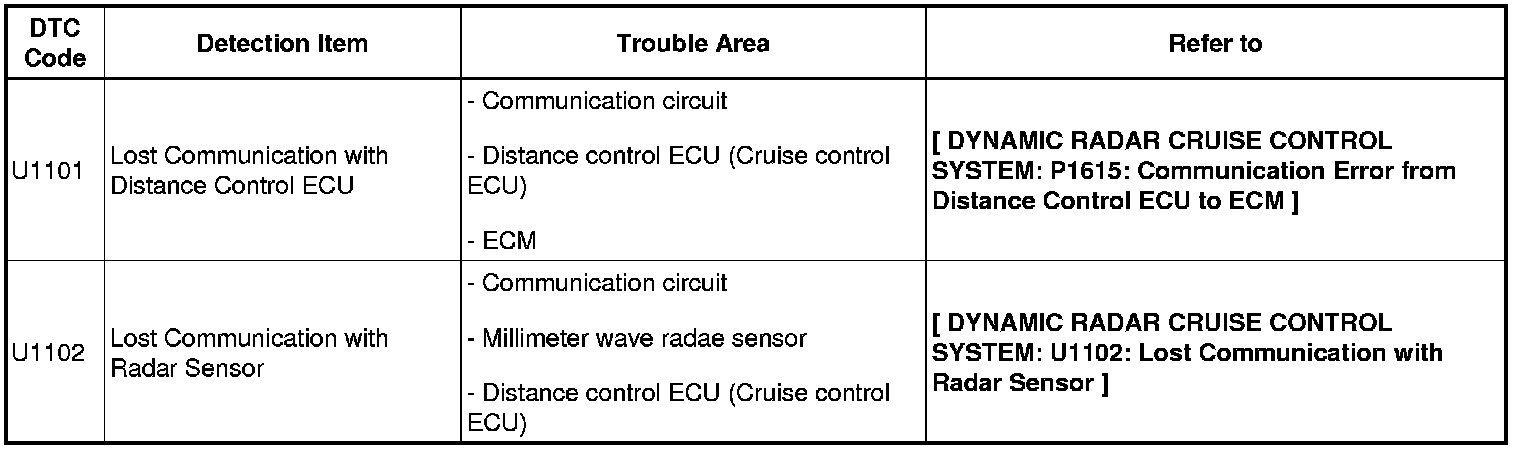

U1101 - U1102:
