Automatic Transmission System - AA80E
AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the information given.
- If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Trouble Area" column of the table.
- *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
- *2: "DTC stored" means the TCM memorizes the malfunction code if the TCM detects the DTC detection condition.
- These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.

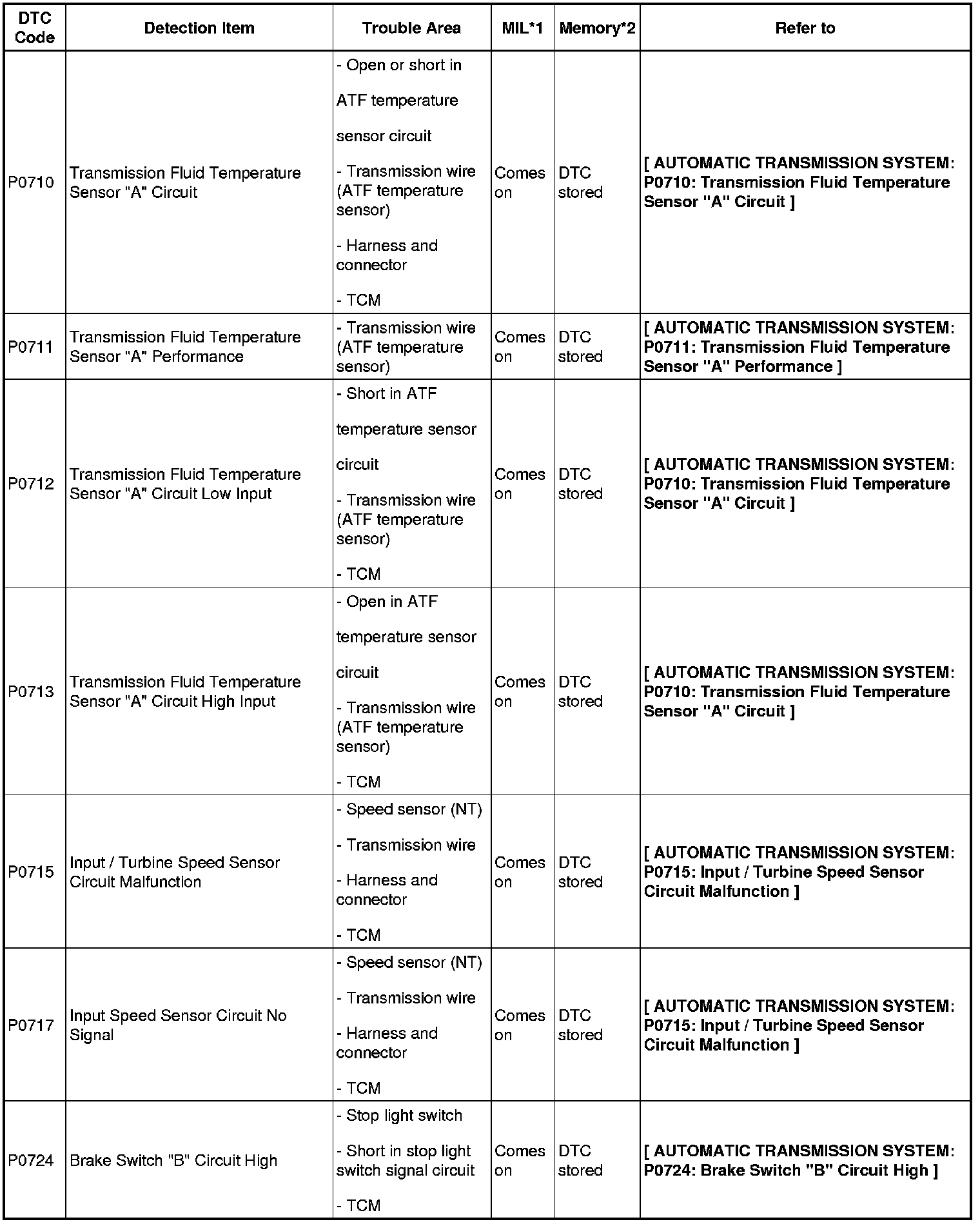

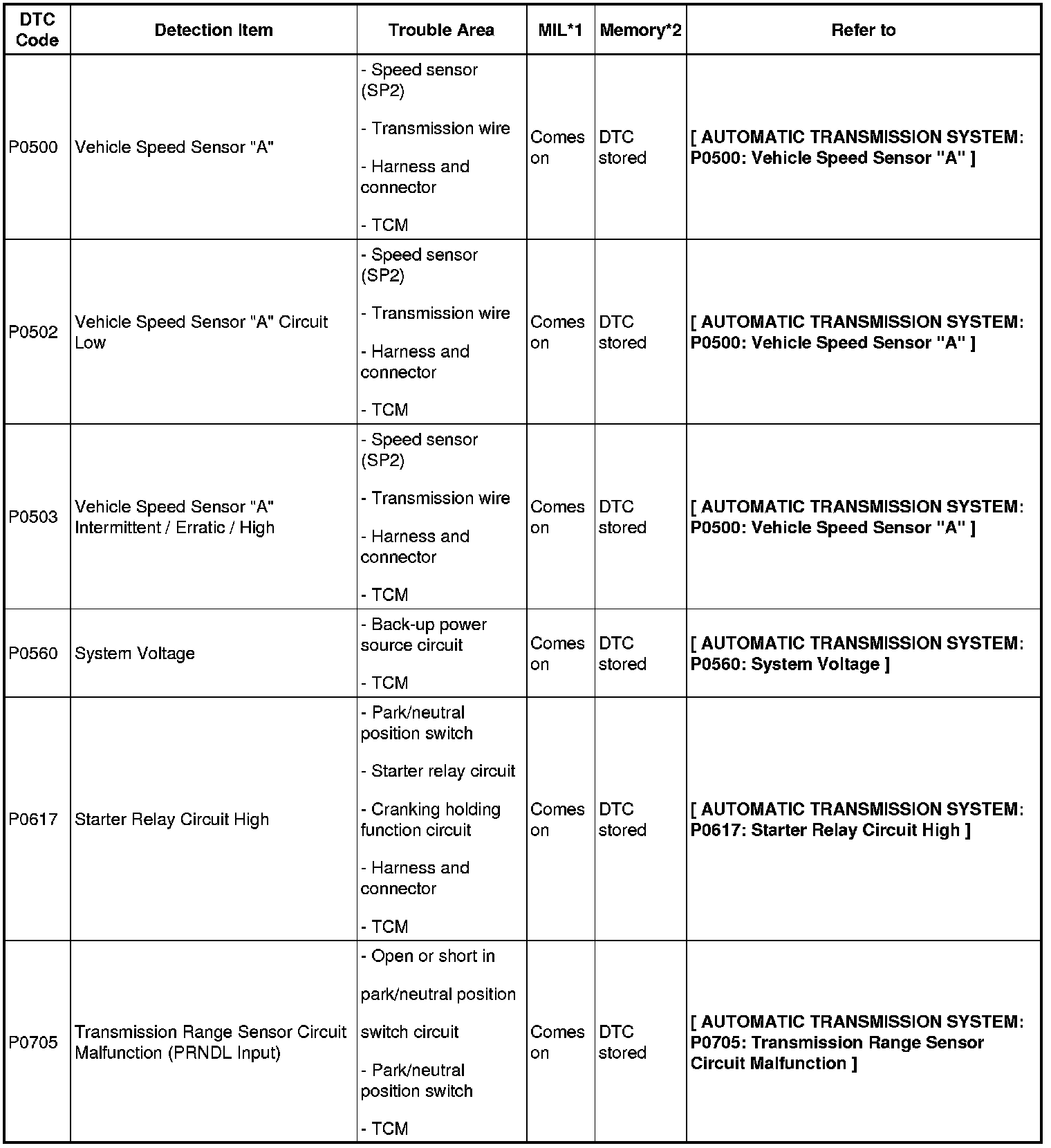

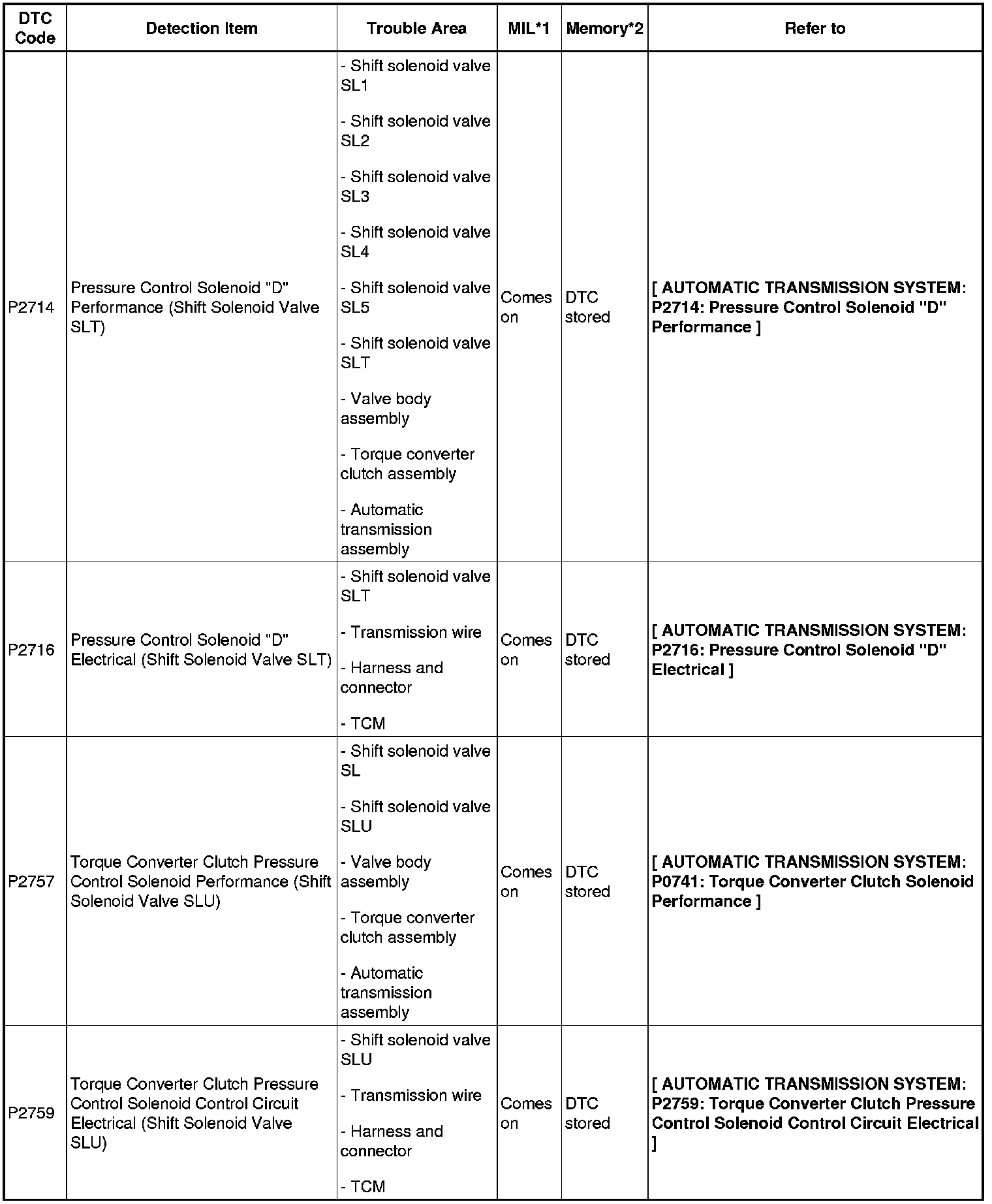

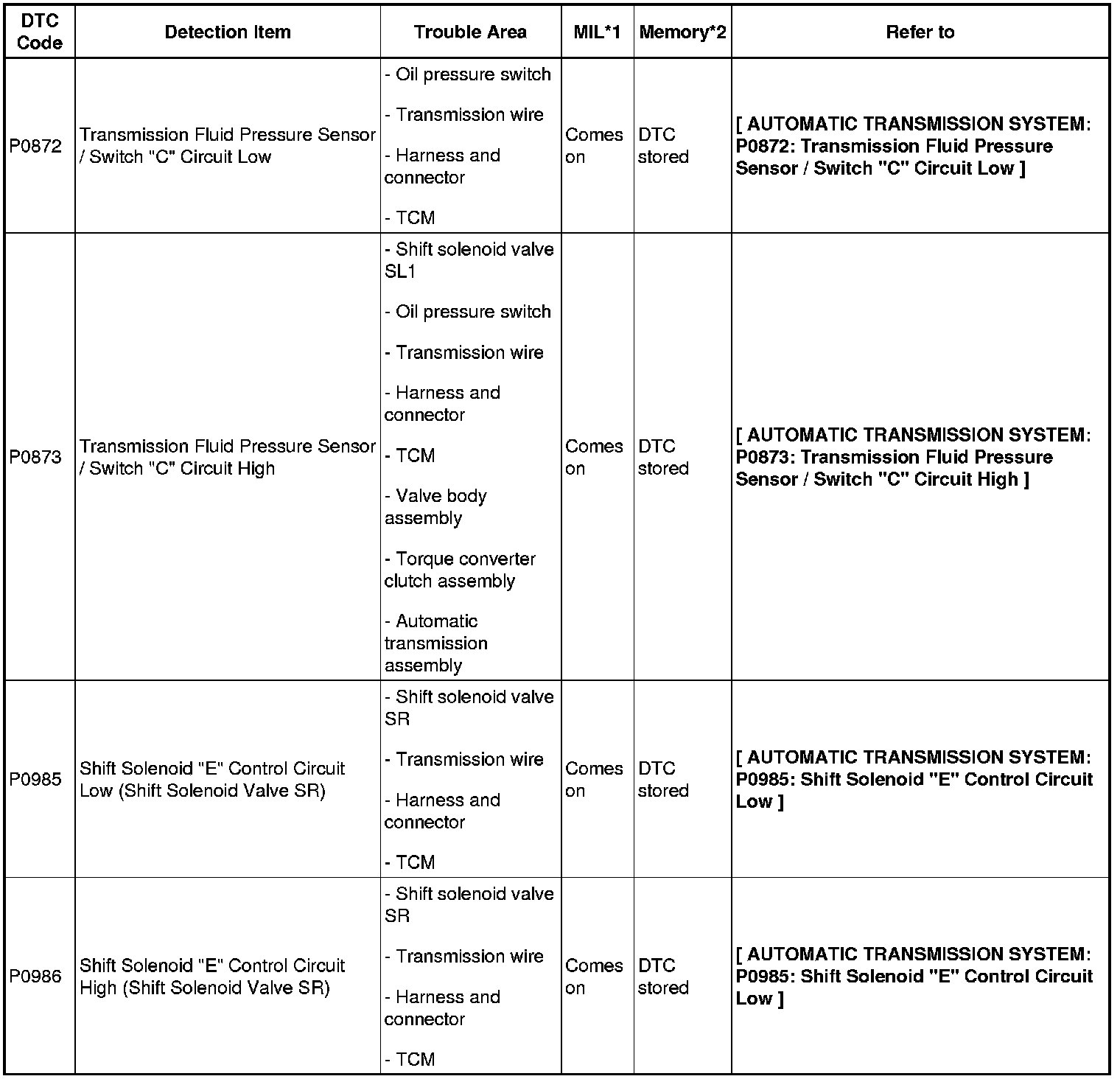

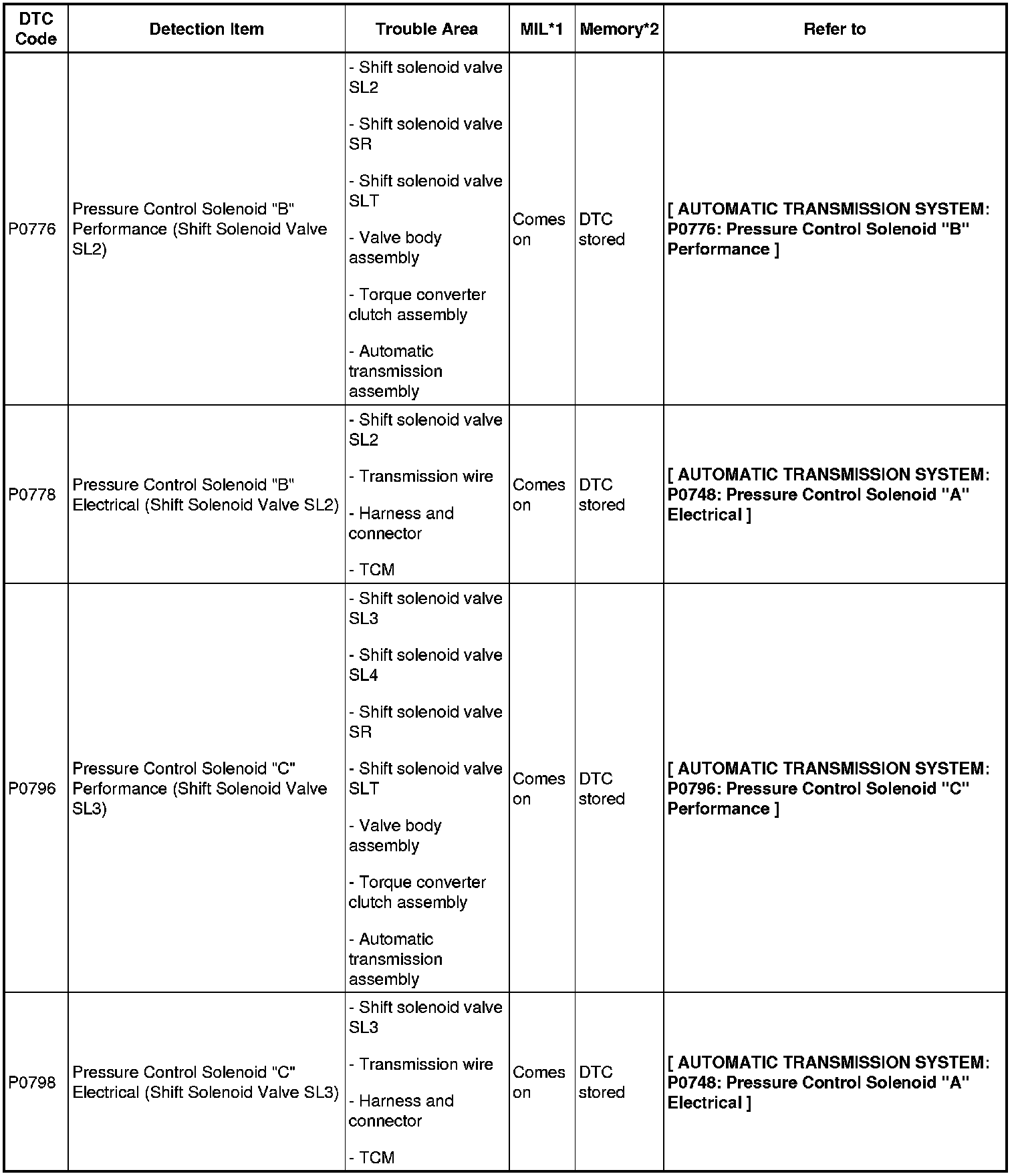

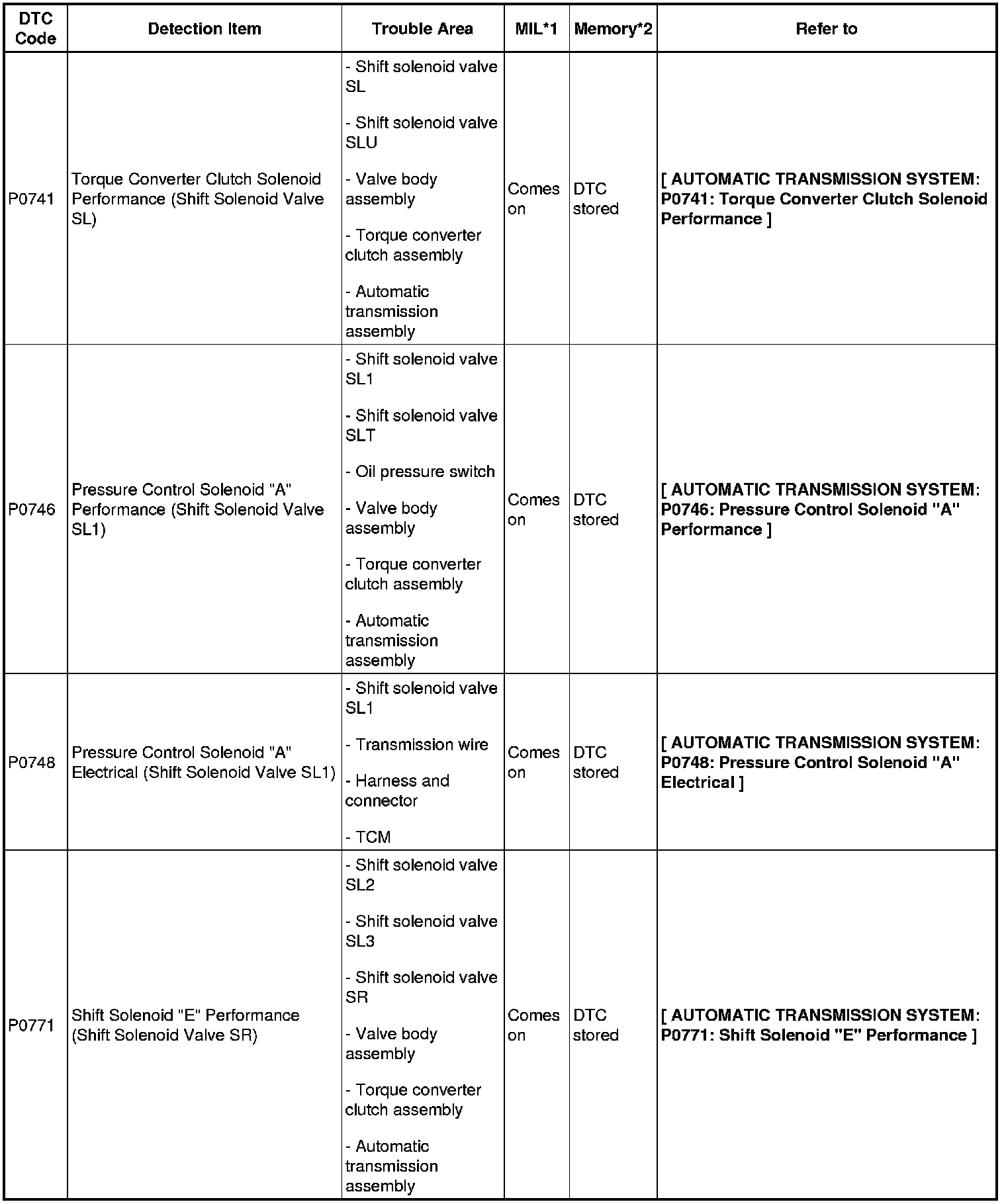

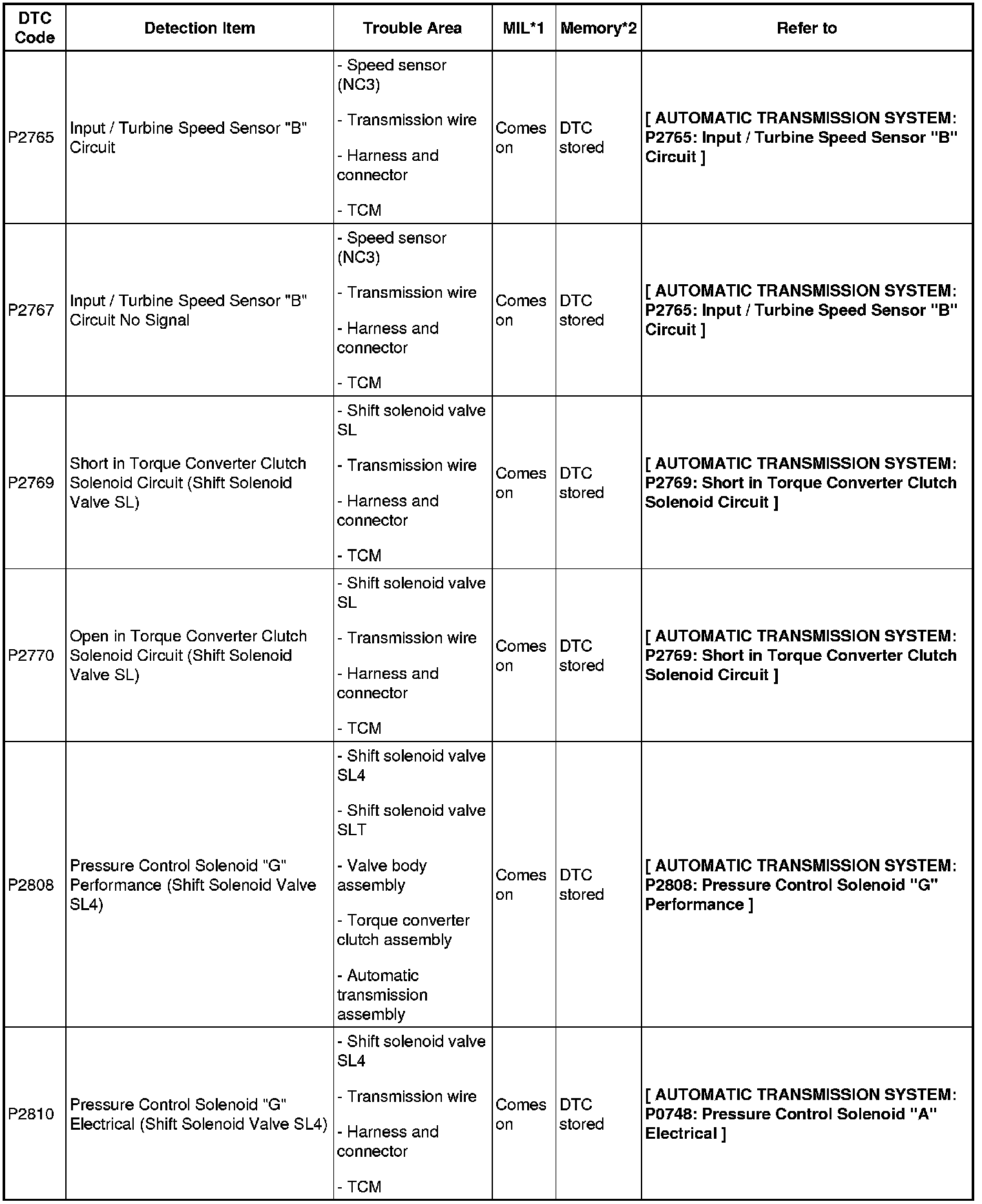

Automatic transmission system:
