Automatic Transmission System - A760E
A760E AUTOMATIC TRANSMISSION: ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

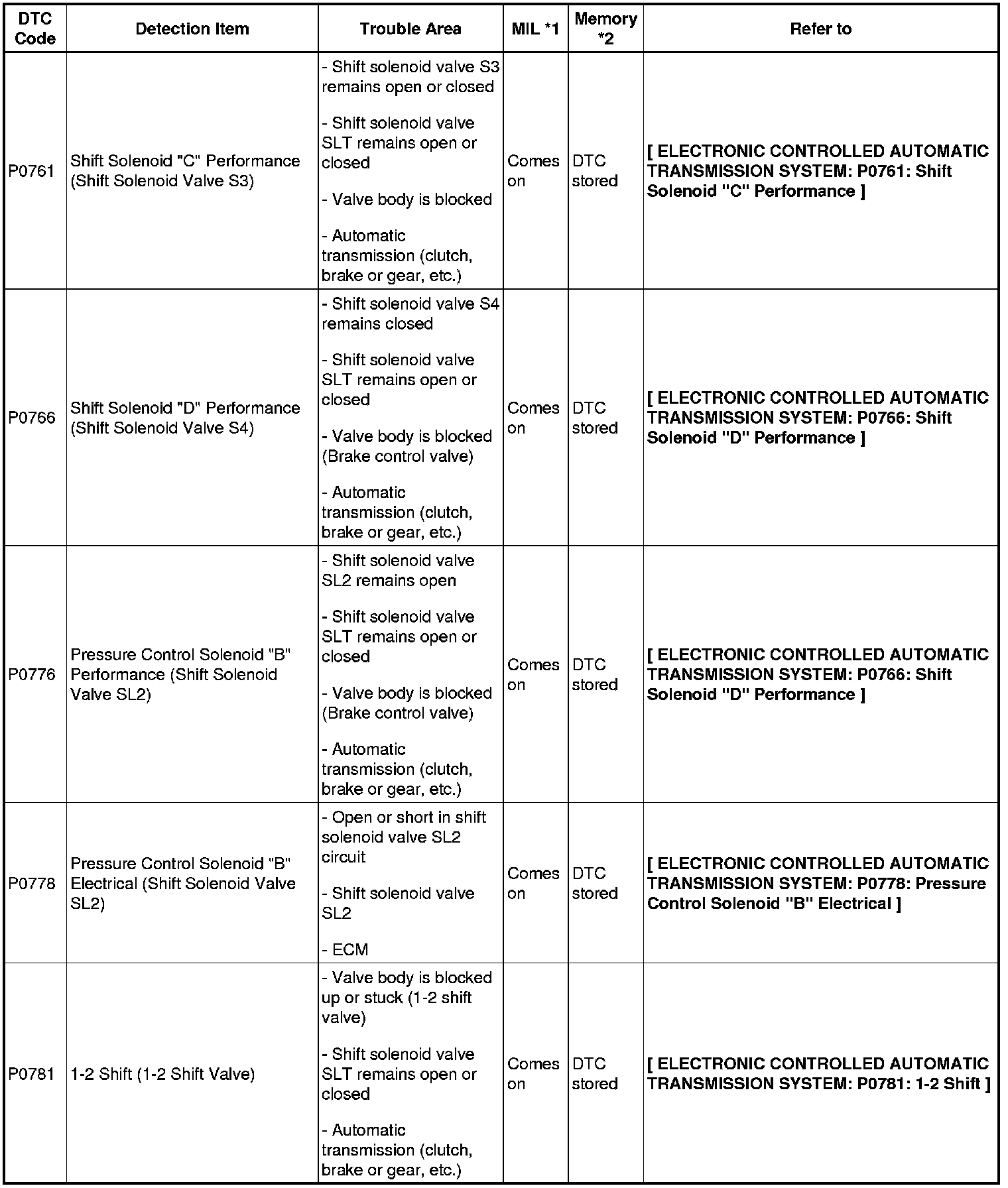

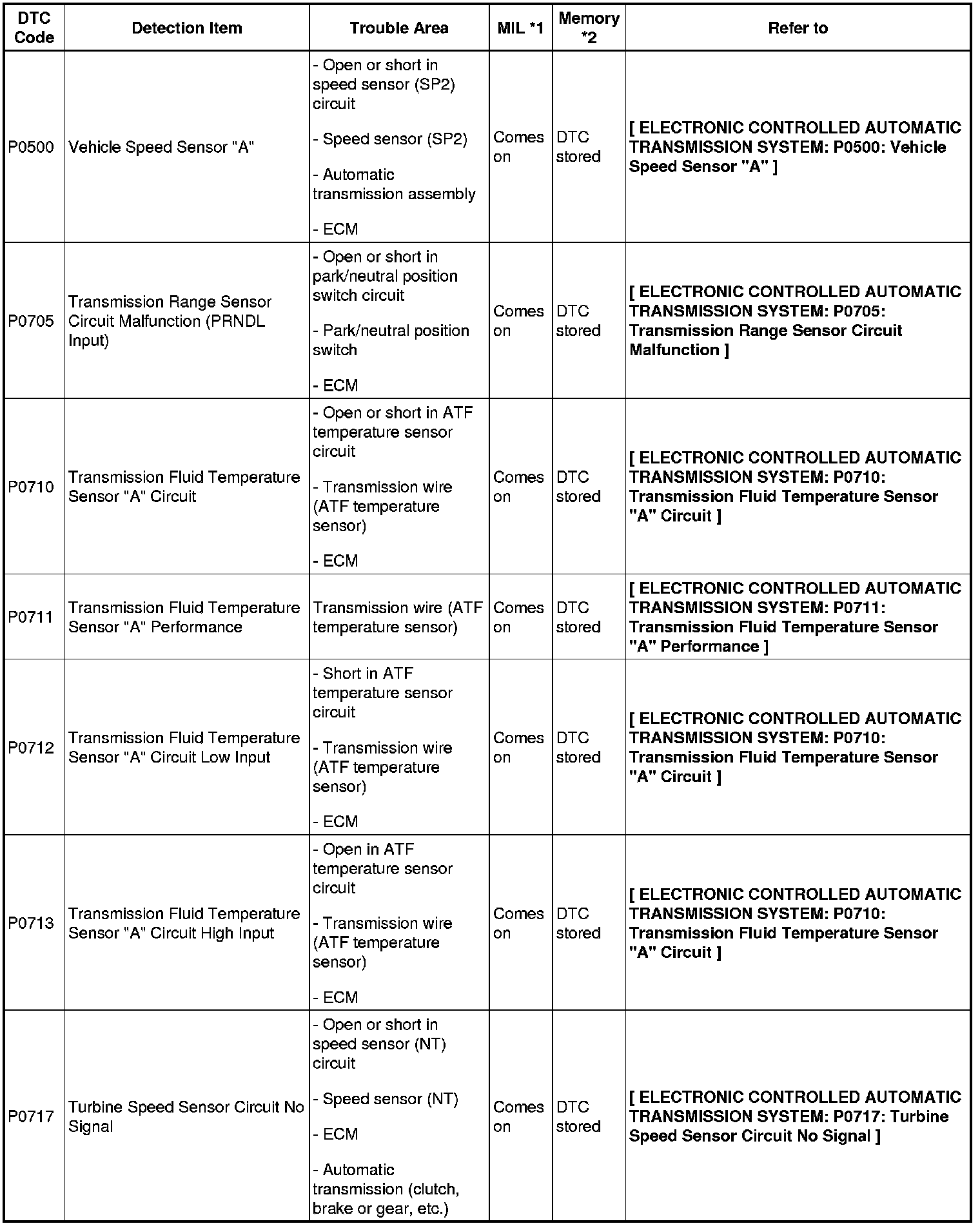

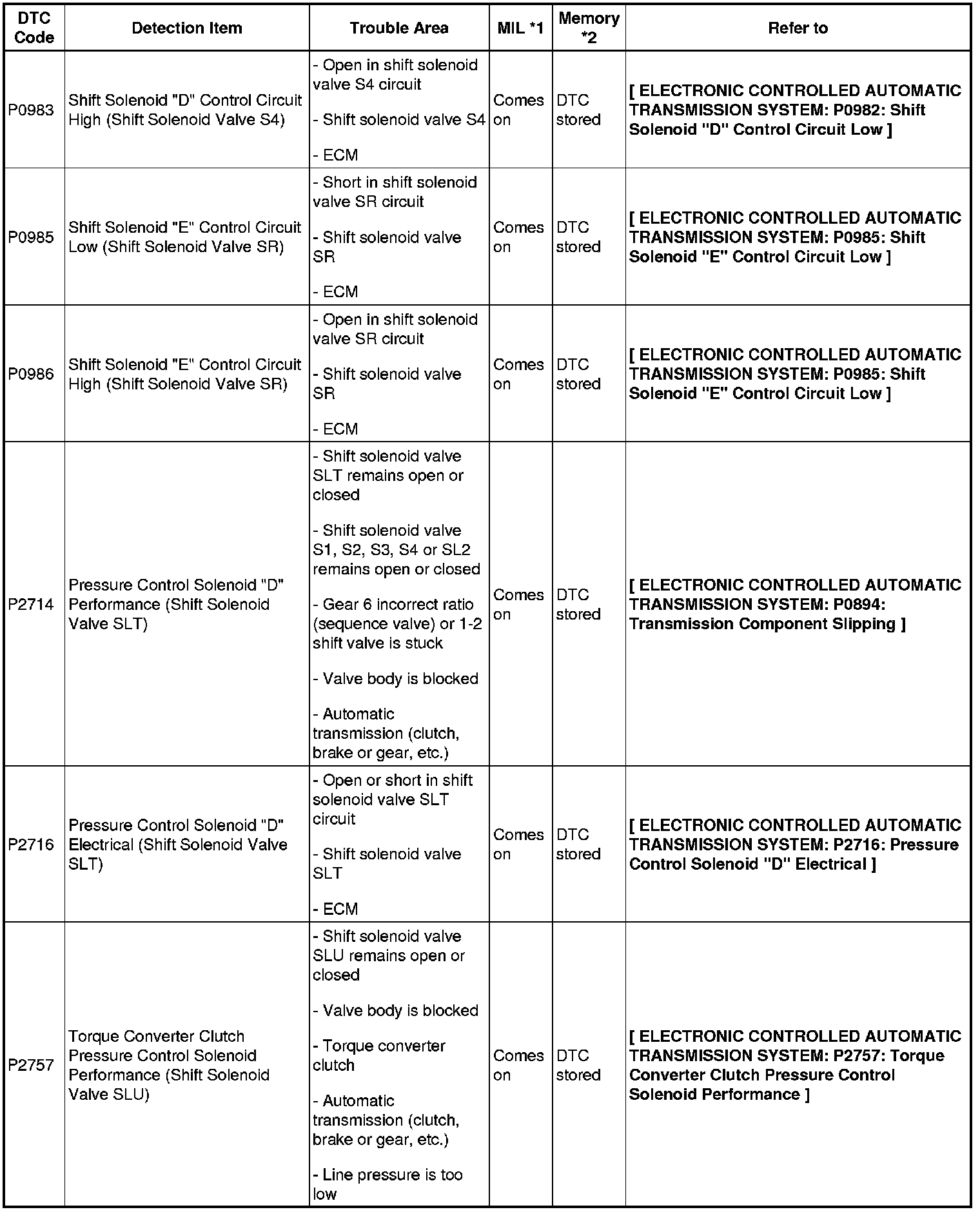

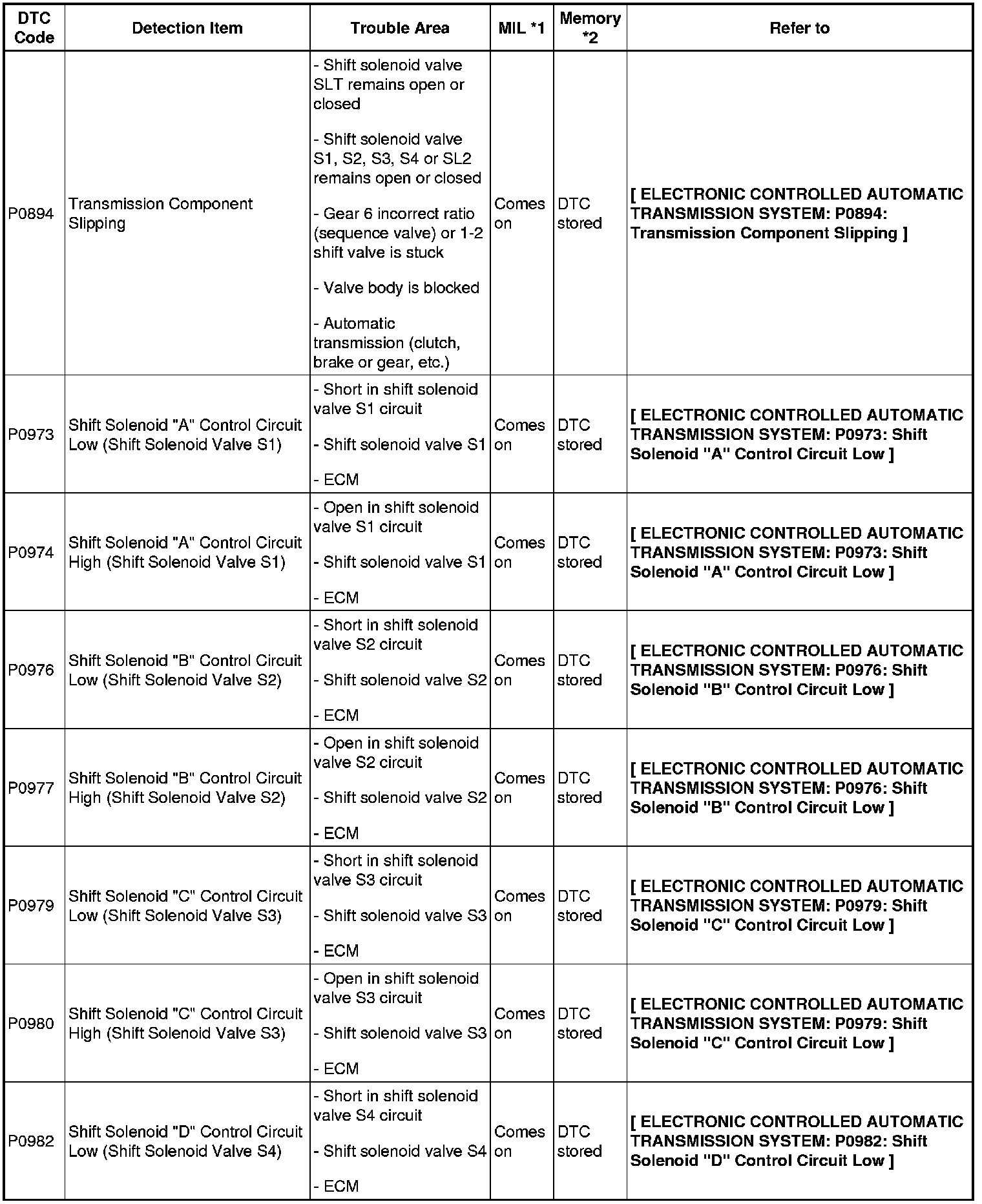

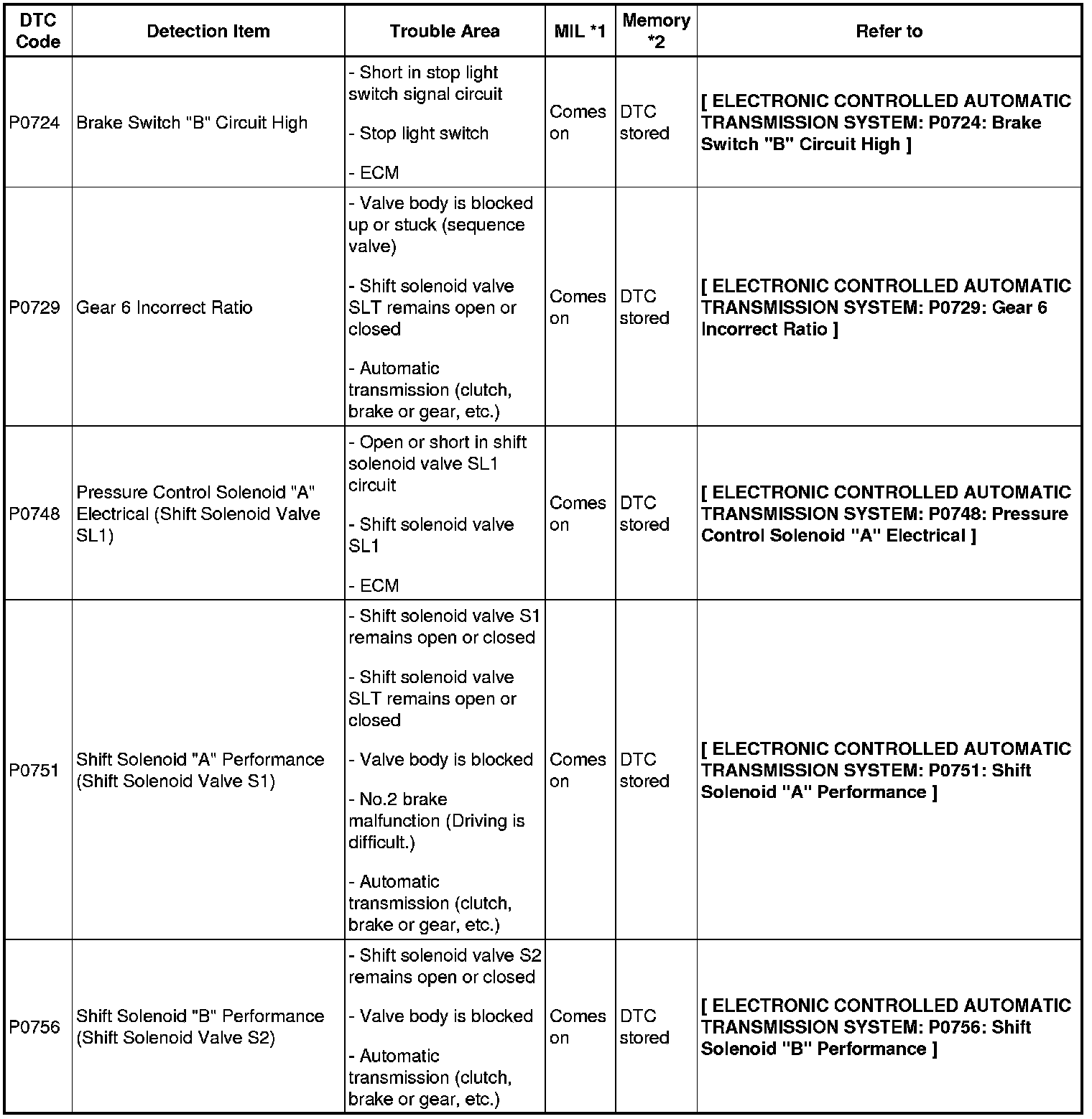

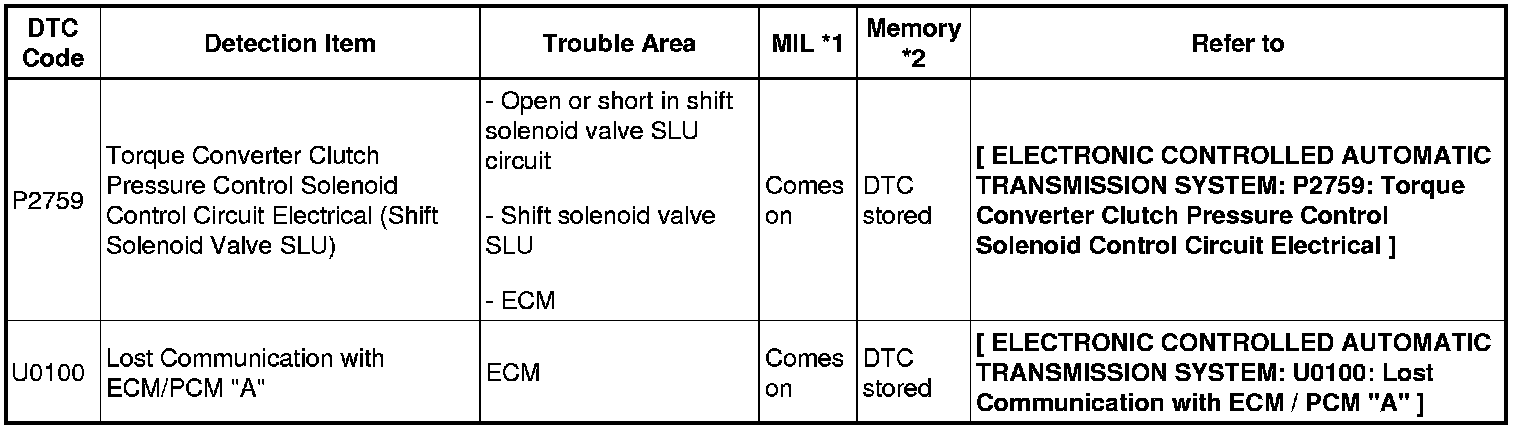

If a DTC is displayed during the DTC check, check the parts listed in the table "See below".
HINT:
- *1: "Comes on" means MIL (Malfunction Indicator Lamp) illuminates.
- *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM
