AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

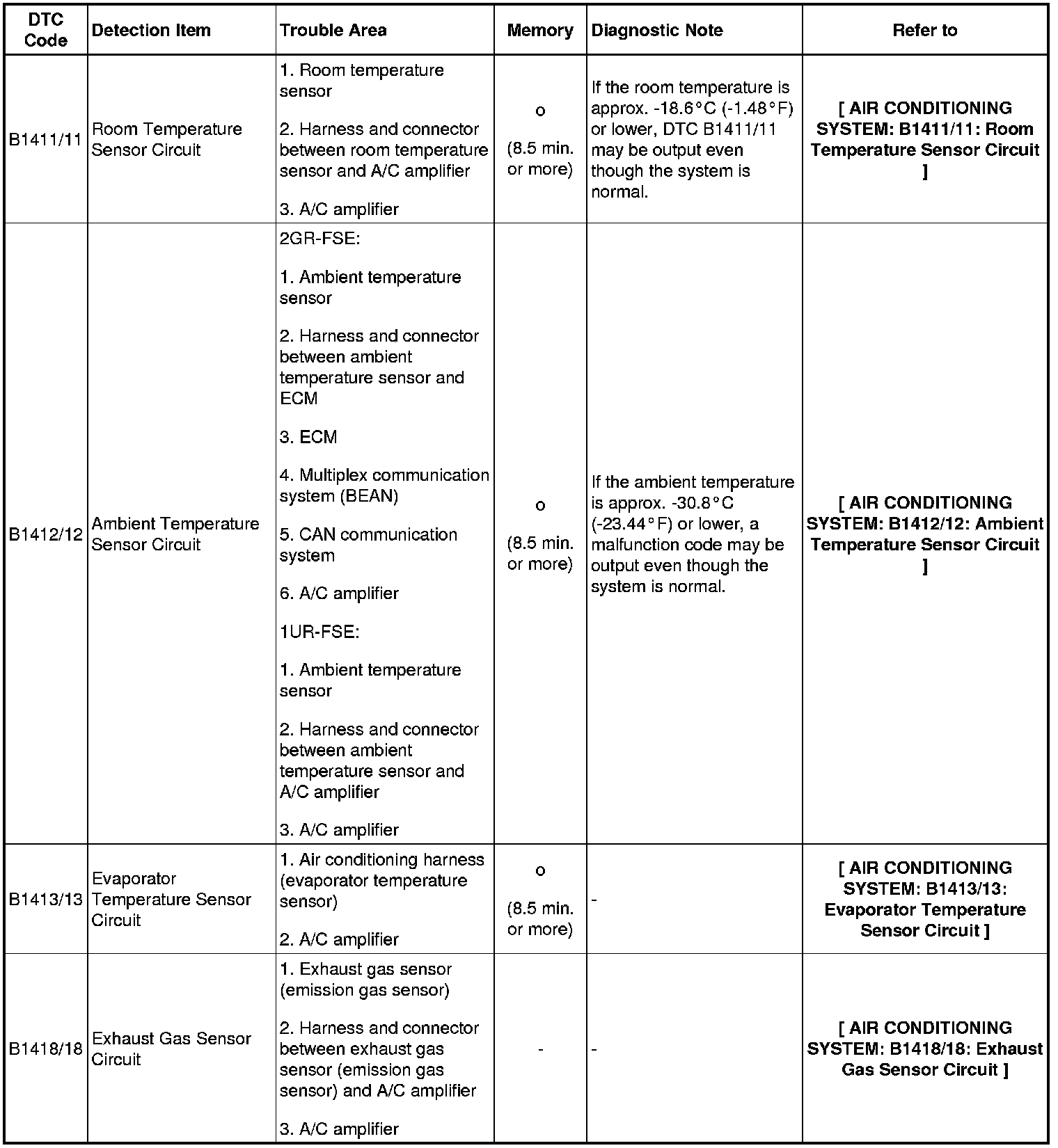

B1411/11 - B1418/18:

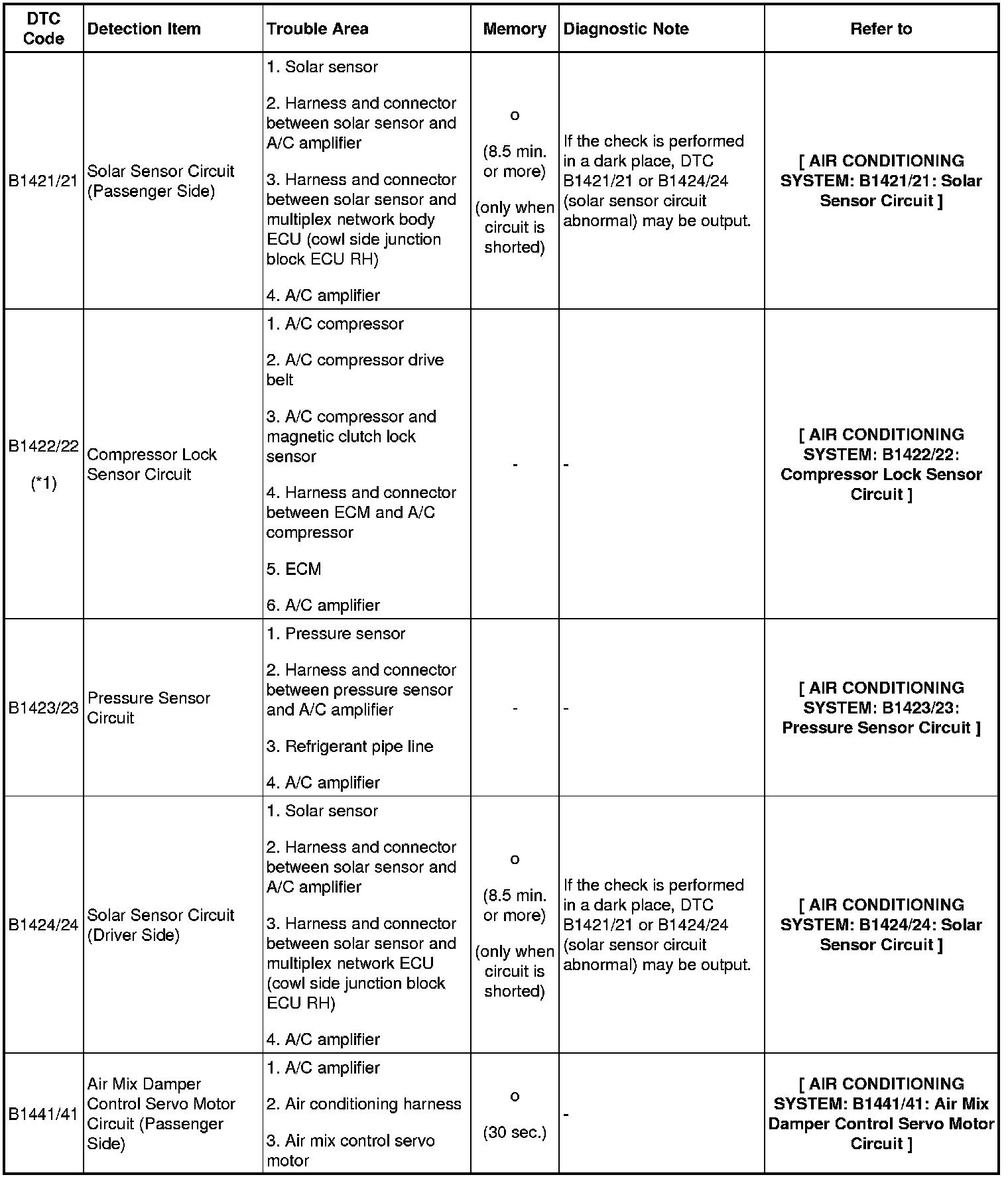

B1421/21 - B1441/41:

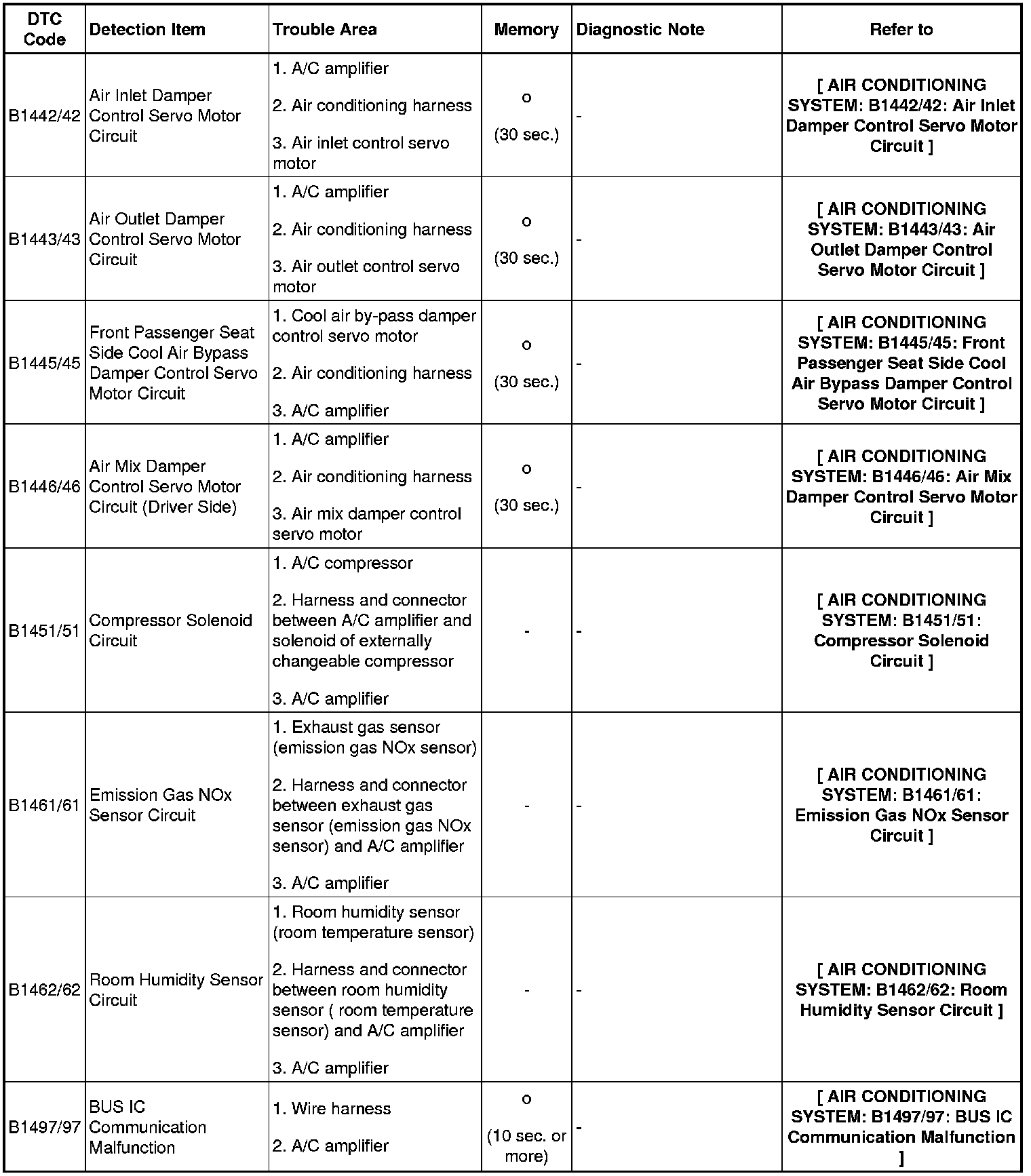

B1442/42 - B1497/97:
*1: for 2GR-FSE
