Active Stabilizer Suspension System

For details of the code, "See below".







SUSPENSION CONTROL: ACTIVE STABILIZER SUSPENSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a malfunction code is displayed during the DTC check, inspect the circuit relevant to that code. For details of the code, "See below".

Active stabilizer suspension system

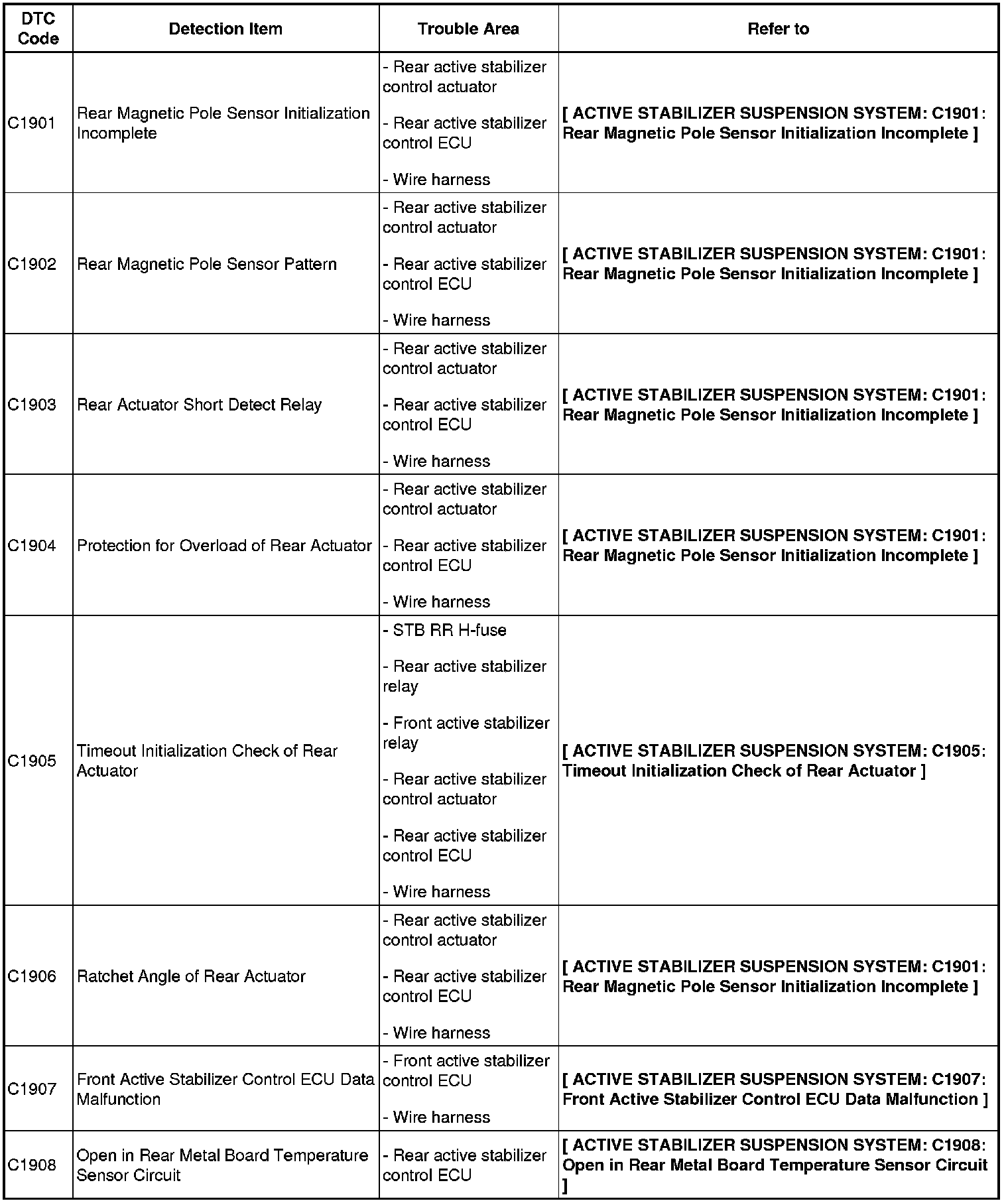

C1901 - C1908:

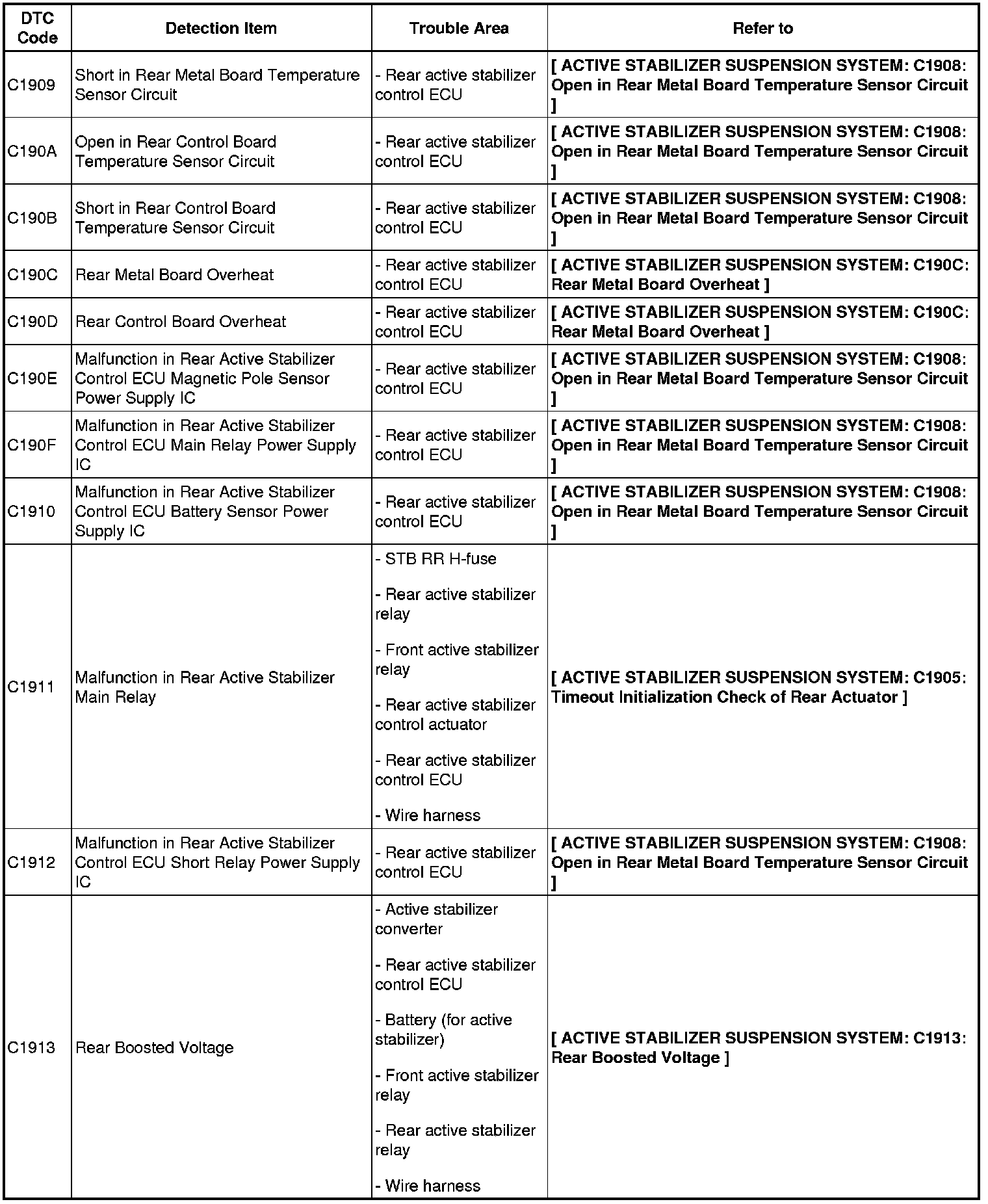

C1909 - C1913:

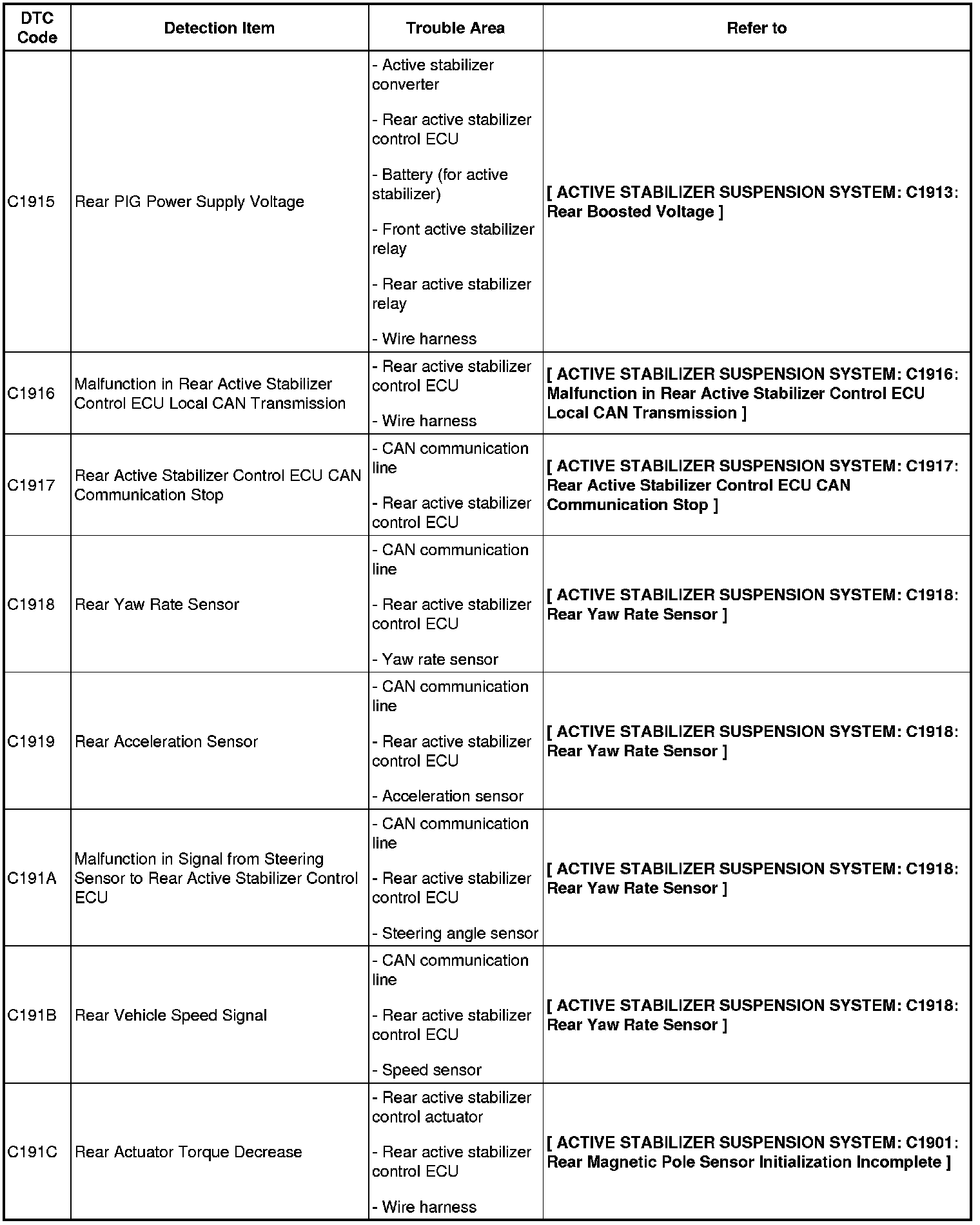

C1915 - C1919, C191a - C191c:

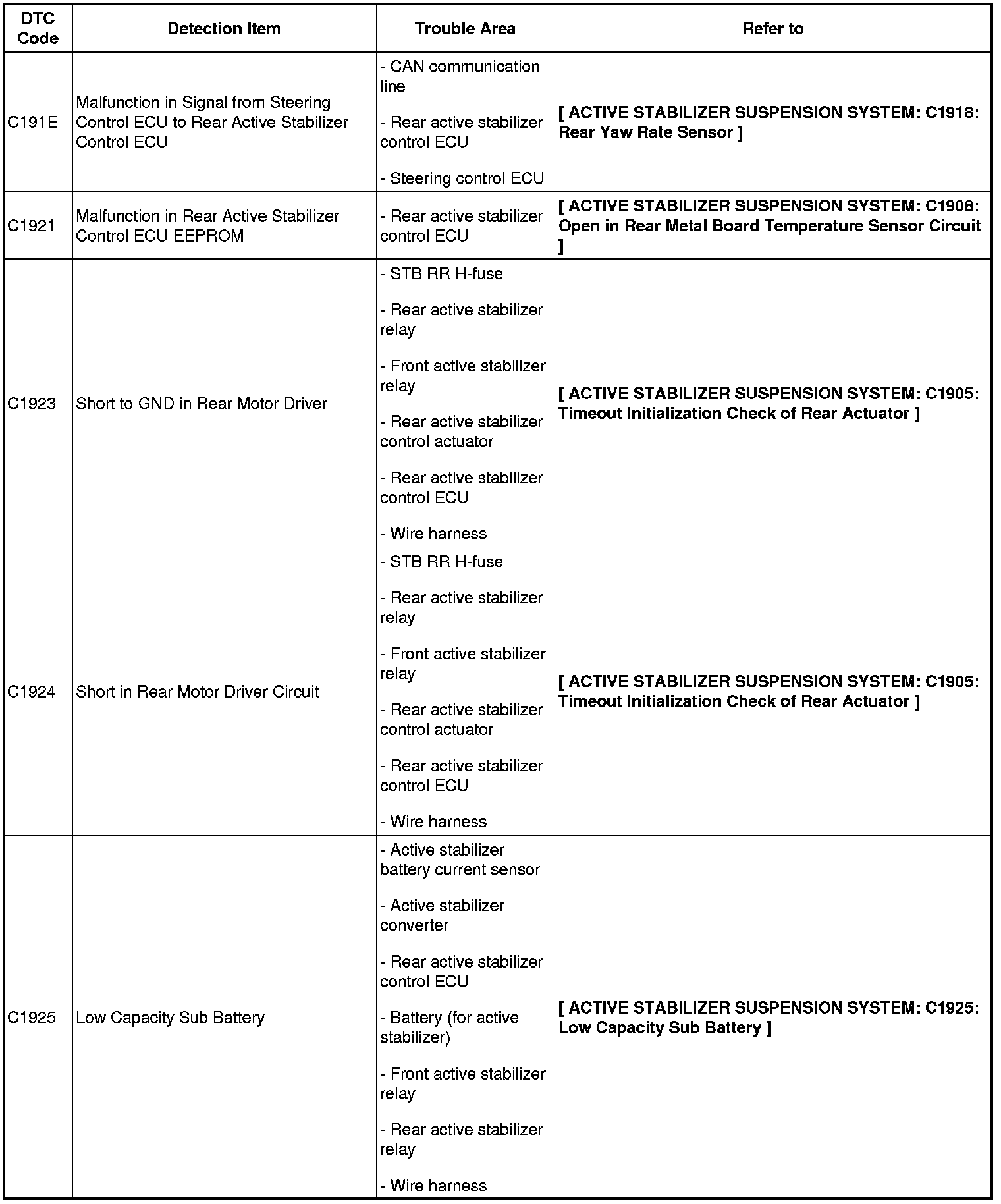

C191E, C191E - C1923:

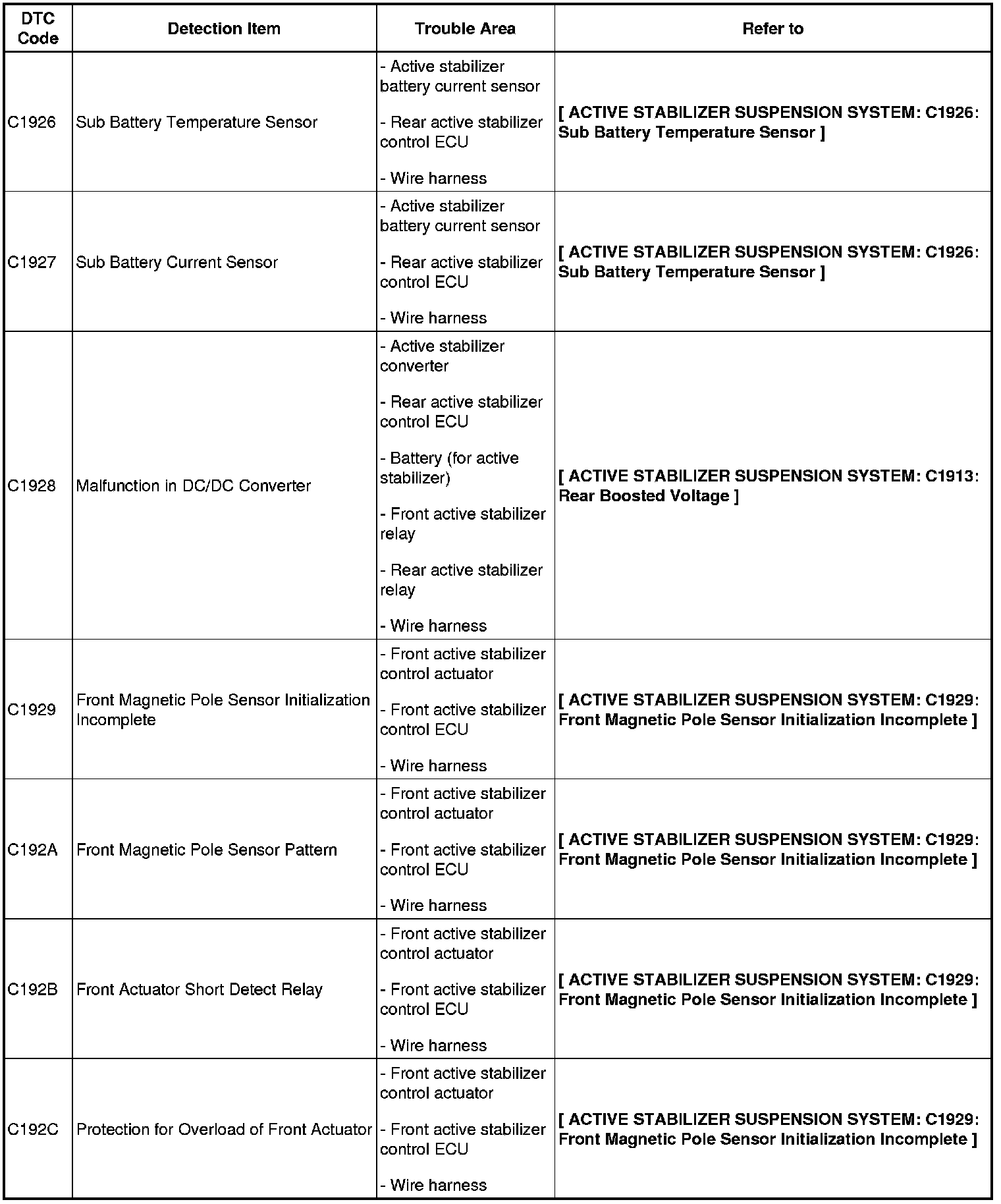

C1926 - C1929, C192A - C192C:

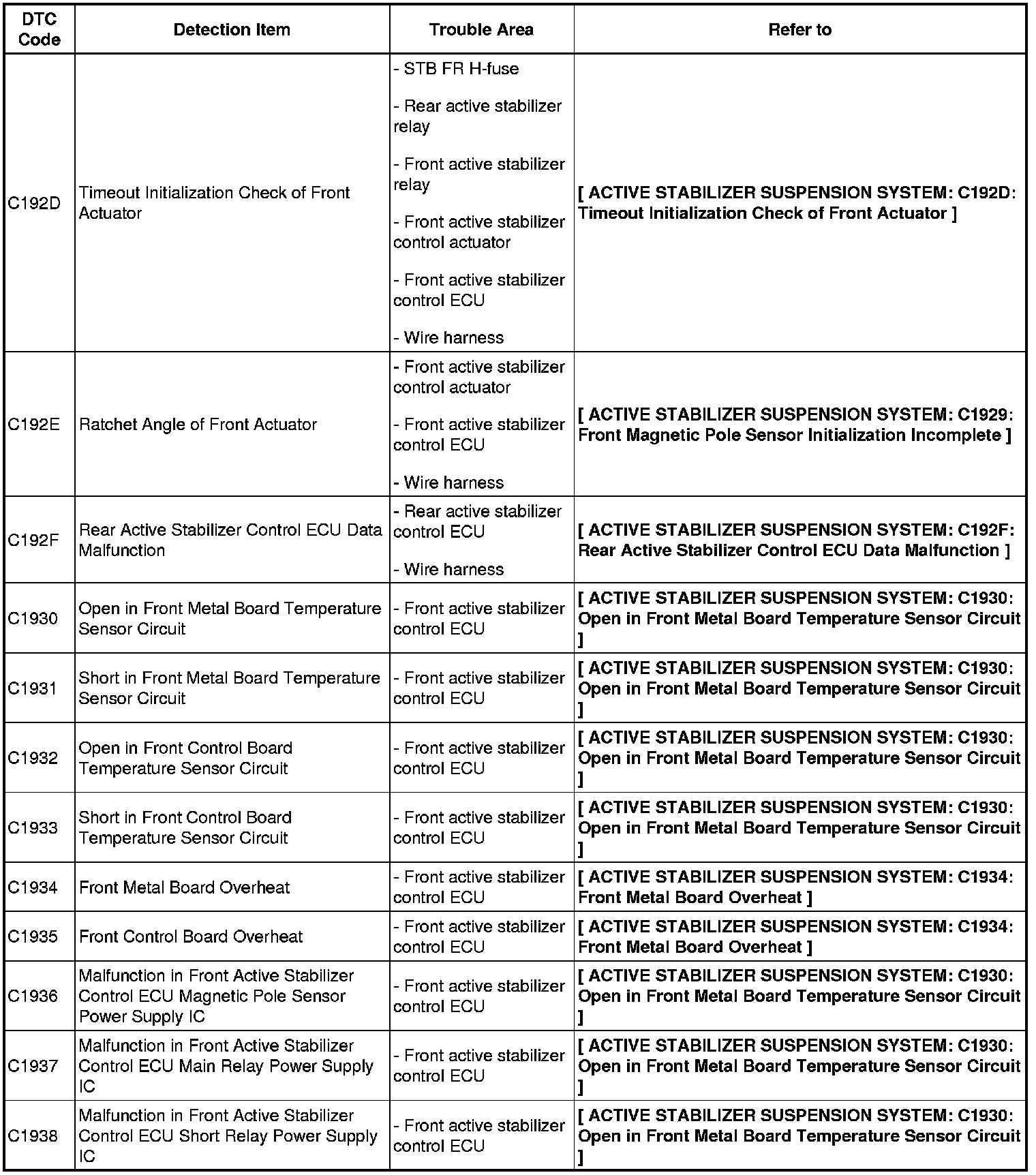

C192D - C192F, C1930 - C1938:

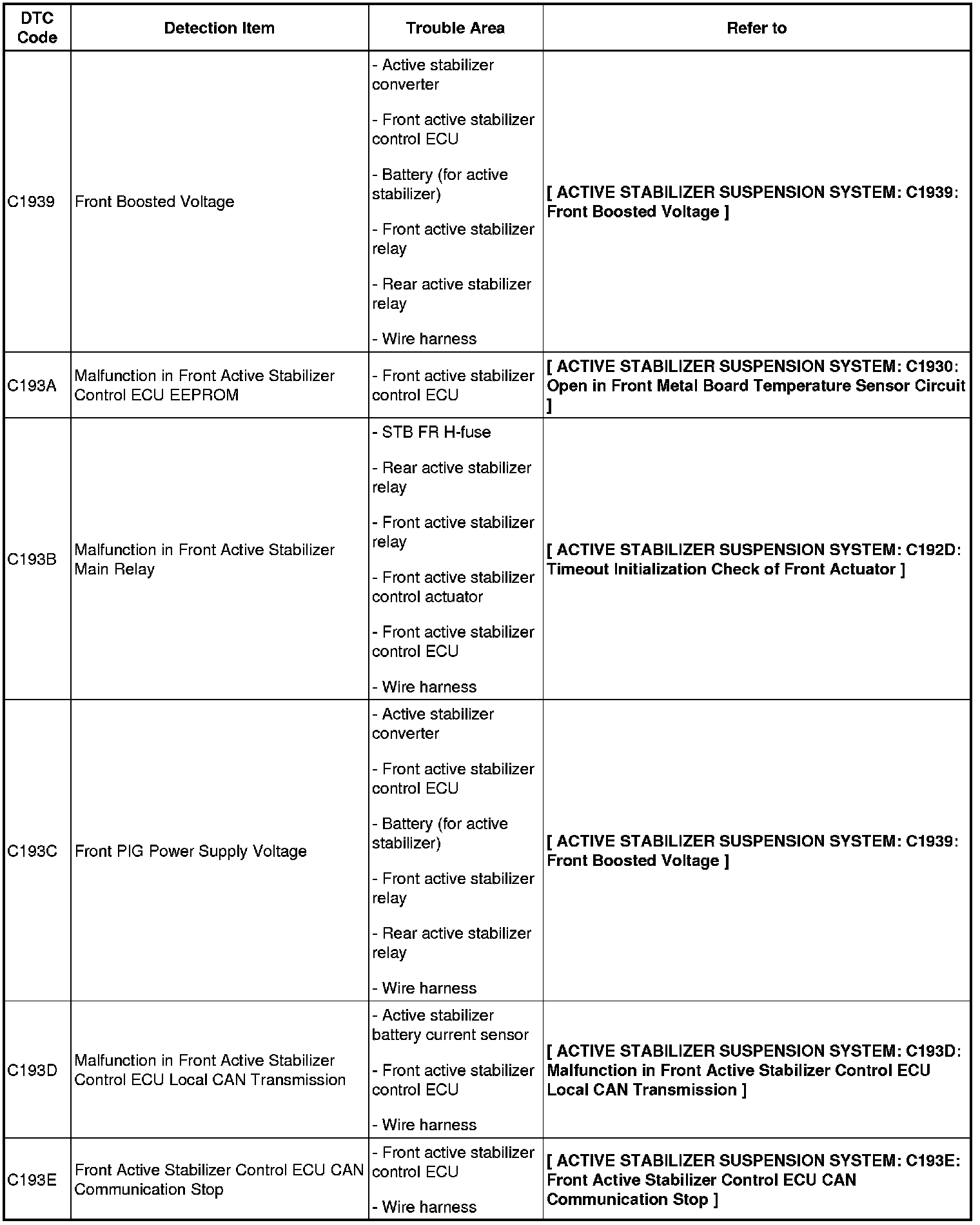

C1939, C193A - C193E:

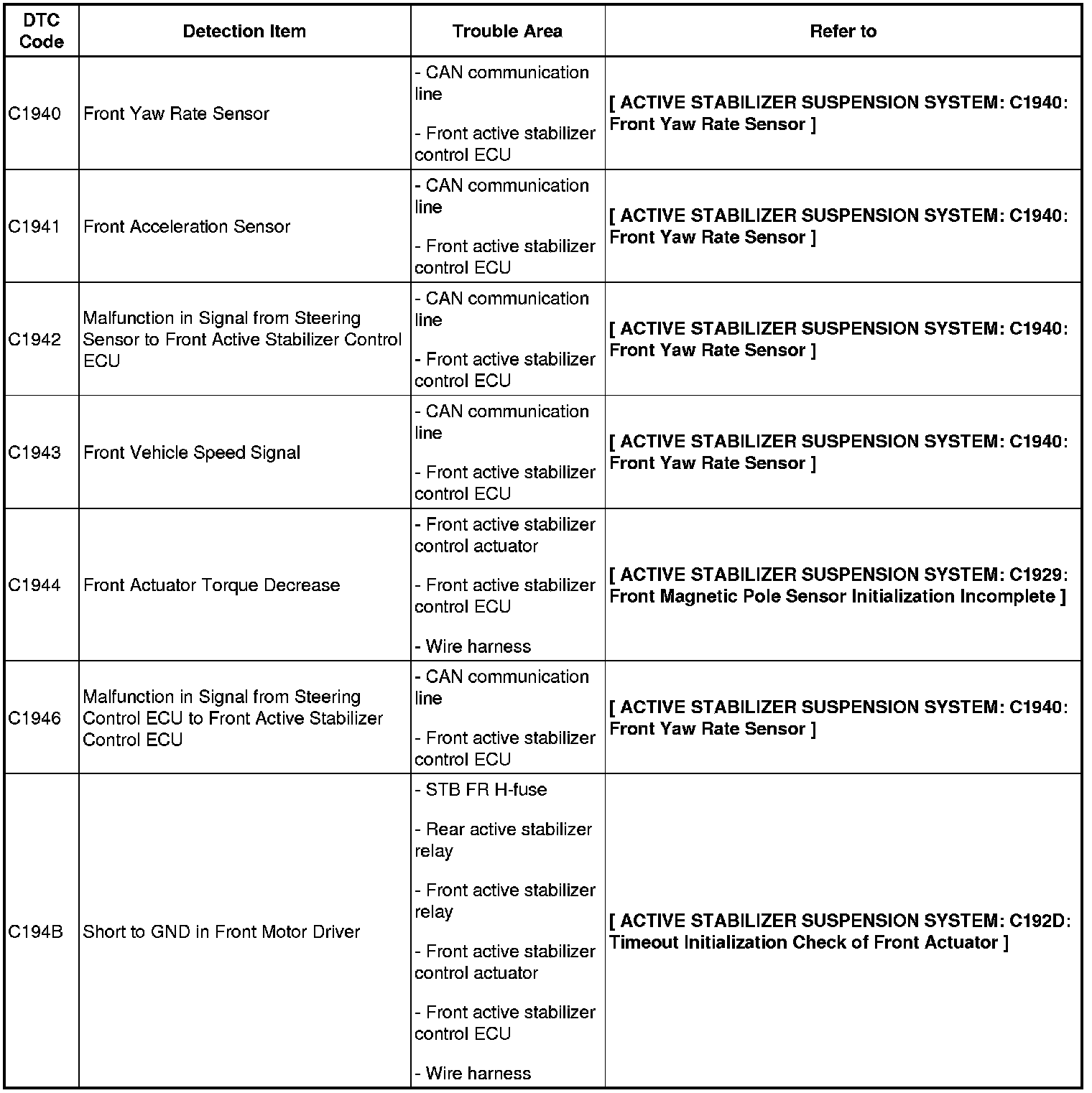

C1940 - C1946, C194B:

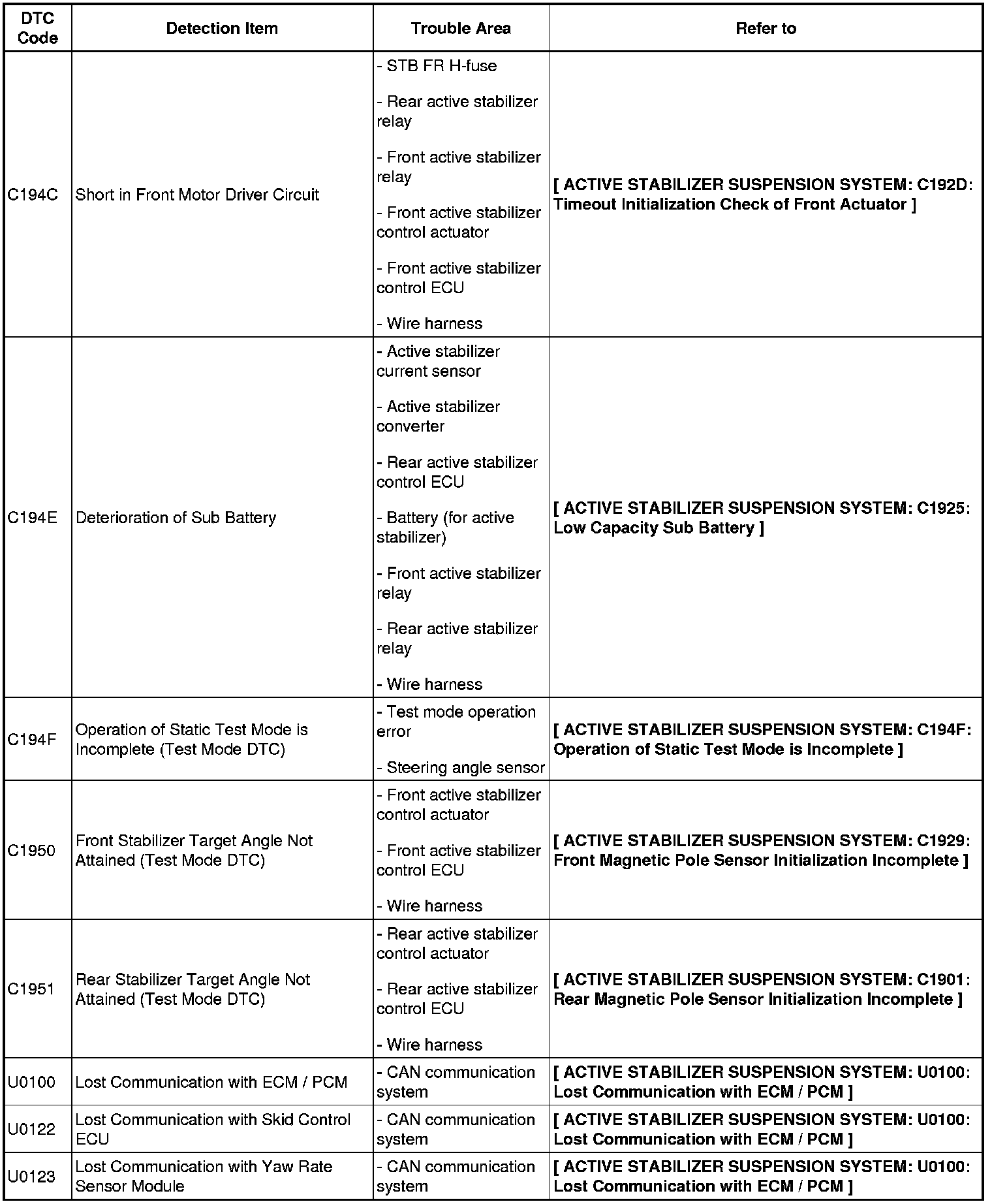

C194C - C194F, C1950 - C1951, U0100 - U0123:

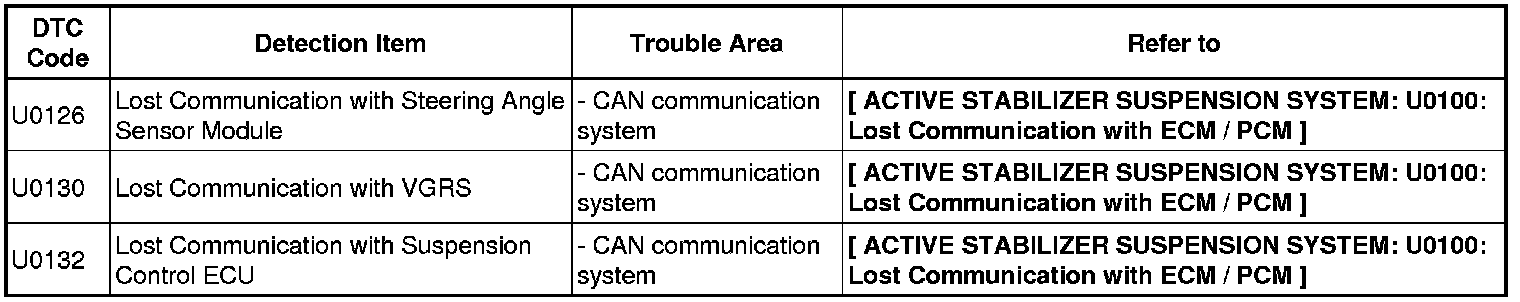

U126 - U132:
