C1761

SUSPENSION CONTROL: ADAPTIVE VARIABLE SUSPENSION SYSTEM: C1761: Suspension Control ECU Malfunction

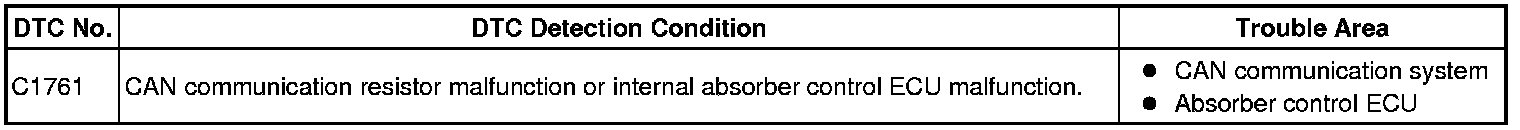

DTC C1761 - Suspension Control ECU Malfunction

DESCRIPTION

The absorber control ECU outputs C1761 if any malfunction occurs in the absorber control ECU itself, etc.

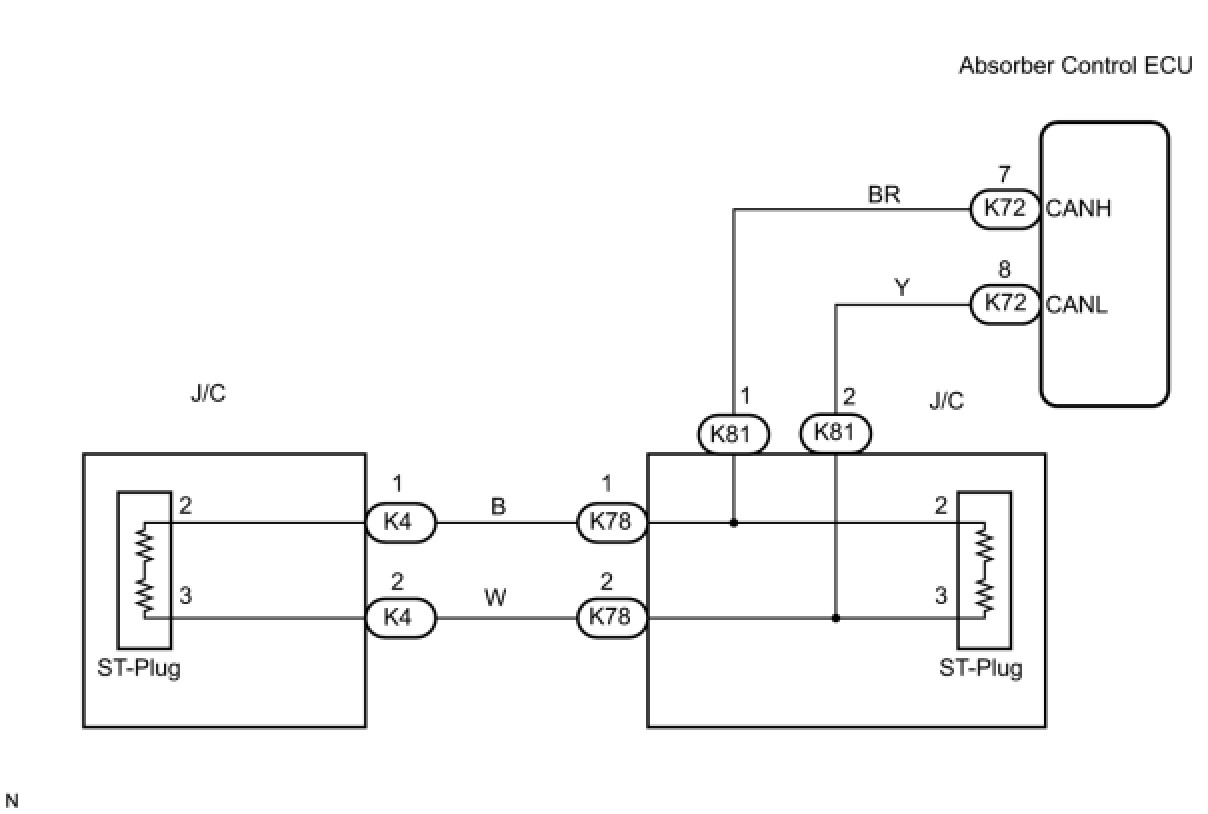

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE:
When replacing the absorber control ECU, check the acceleration sensor assembly signal after replacement Test Mode Procedure.
HINT:
- Check the condition of each related circuit connector before troubleshooting Electronic Circuit Inspection Procedure.
- When C1774 is output, inspect and repair the trouble areas indicated by C1774 first C1774.

PROCEDURE

1. CHECK DTC
(a) Check if a CAN communication DTC other than C1761 is output Adaptive Variable Suspension System.

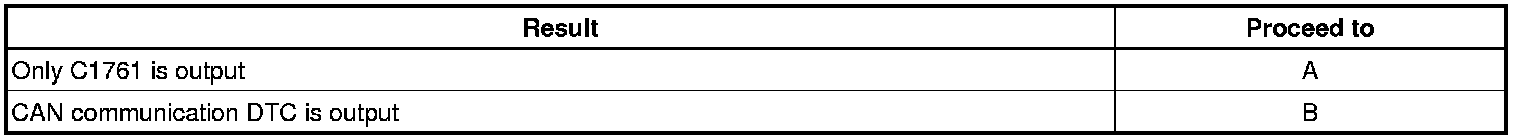

Result:






B -- REPAIR CIRCUIT INDICATED BY OUTPUT CODE
A -- REPLACE ABSORBER CONTROL ECU
