B2006

PRE-COLLISION: PRE-COLLISION SYSTEM: B2006: Short to GND in Seat Belt Motor LH Circuit

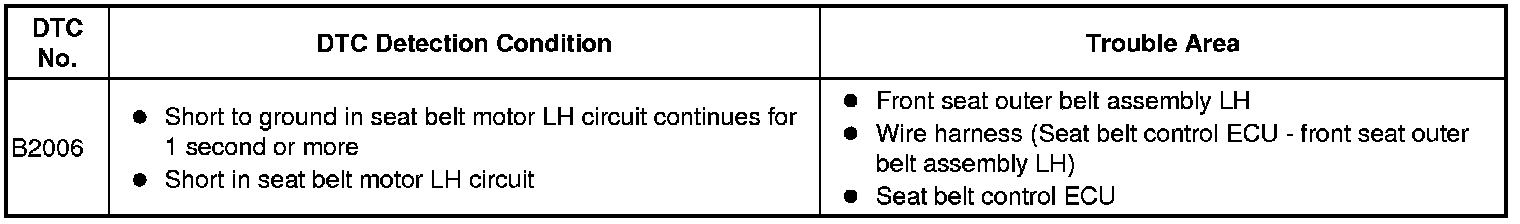

DTC B2006 - Short to GND in Seat Belt Motor LH Circuit

DESCRIPTION

The seat belt control ECU receives information from the seat belt control ECU (distance control ECU) through CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly LH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may activate the pretensioner.





WIRING DIAGRAM






INSPECTION PROCEDURE
NOTICE:
When the seat belt control ECU is replaced with a new one, Active Test must be performed. Pre-Collision System

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY - SEAT BELT CONTROL ECU)





(a) Disconnect the negative (-) terminal cable battery.

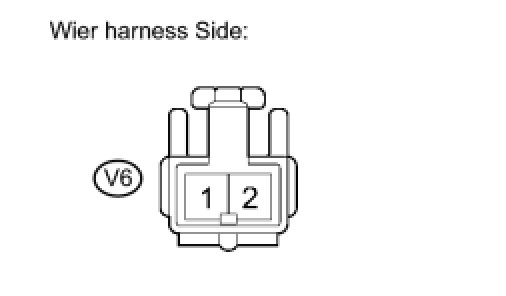

(b) Disconnect the connectors seat belt control ECU and front seat outer belt assembly LH.

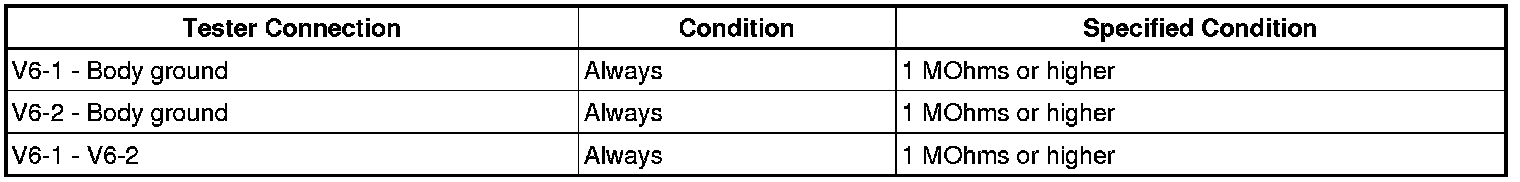

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. CHECK FRONT SEAT OUTER BELT ASSEMBLY LH





(a) Disconnect the connectors seat belt control ECU and front seat outer belt assembly LH.

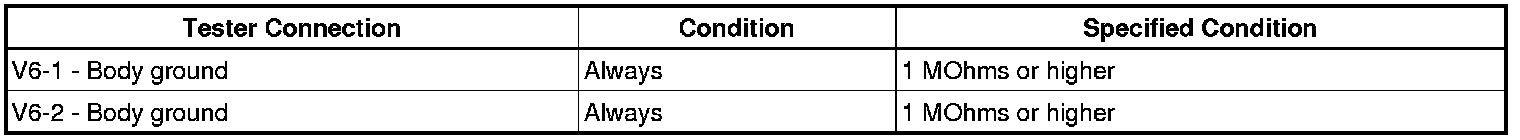

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH
OK -- REPLACE SEAT BELT CONTROL ECU
