Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

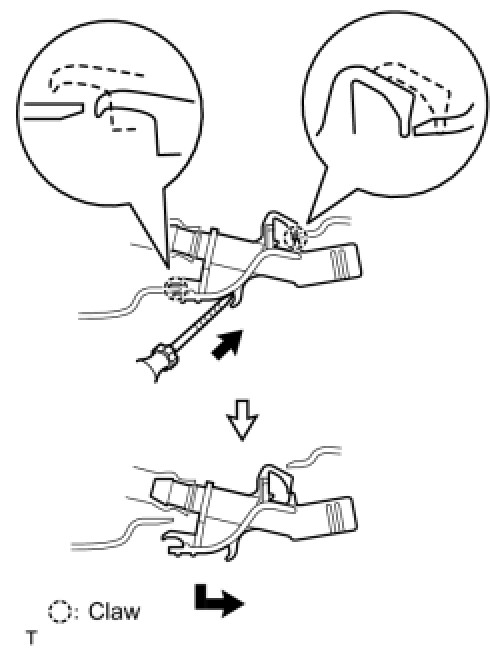

(a) Using a screwdriver, detach the 2 claws and separate the washer nozzle.
HINT:
Tape the screwdriver tip before use.
NOTICE:
Be careful not to damage the windshield.

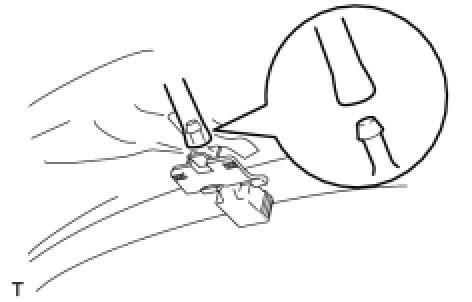

(b) Remove the washer nozzle from the washer hose.
NOTICE:
Washer nozzles cannot be reused.

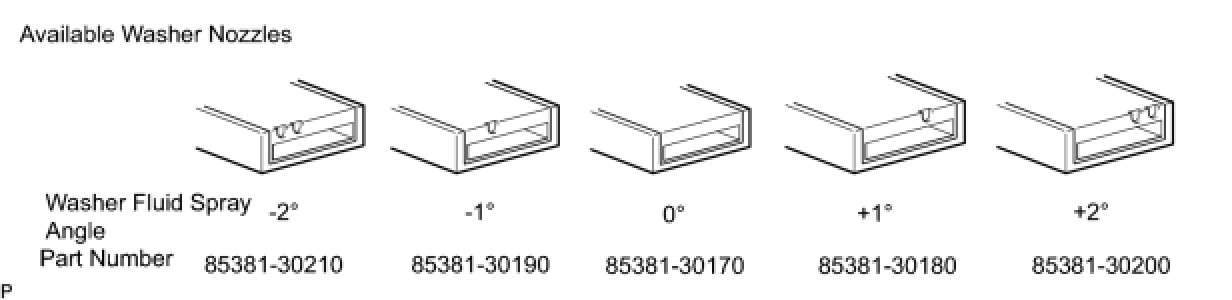

(c) Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.
