UF1AE TRANSFER: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

UF1AE TRANSFER: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE FRONT EXHAUST PIPE ASSEMBLY
Removal
3. REMOVE REAR PROPELLER SHAFT ASSEMBLY
Removal
4. REMOVE TRANSFER CASE REAR OIL SEAL

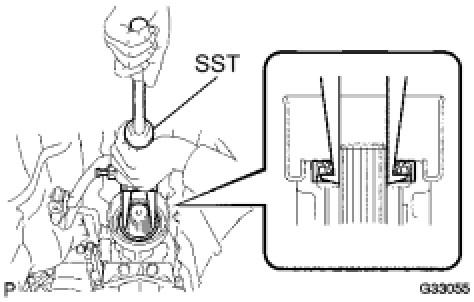

(a) Using SST, remove the oil seal.
SST: 09308-00010
5. INSTALL TRANSFER CASE REAR OIL SEAL

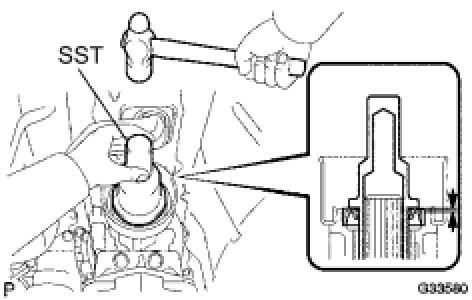

(a) Using SST and a hammer, install a new oil seal.
SST: 09325-40010
Oil seal drive in depth:
2.3 to 2.7 mm (0.091 to 0.106 in.)
(b) Apply MP grease to the oil seal lip.
6. INSTALL REAR PROPELLER SHAFT ASSEMBLY
Installation
7. INSTALL FRONT EXHAUST PIPE ASSEMBLY
Installation
8. ADD AUTOMATIC TRANSMISSION FLUID Installation

9. CHECK FOR EXHAUST GAS LEAKS
