AA80E Automatic Transmission

AA80E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

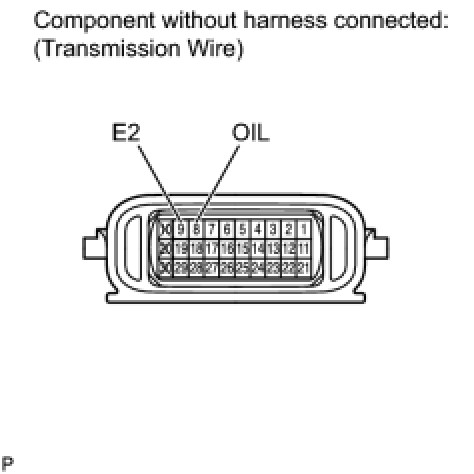

1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)






(a) Measure the resistance of the transmission wire.

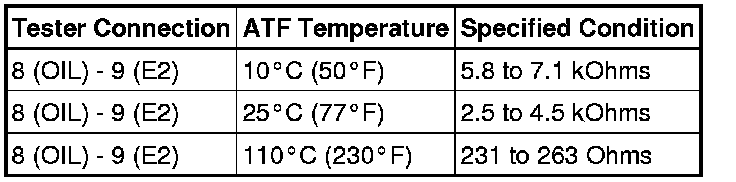

Standard resistance:





HINT:
If the resistance is not within the specified range of any of the ATF temperatures shown in the table above, the driveability of the vehicle may decrease.
