A760H Automatic Transmission









A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION





1. INSPECT TRANSMISSION WIRE

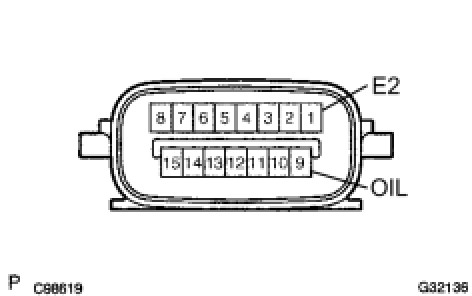

(a) Using an ohmmeter, measure the resistance between the terminals.

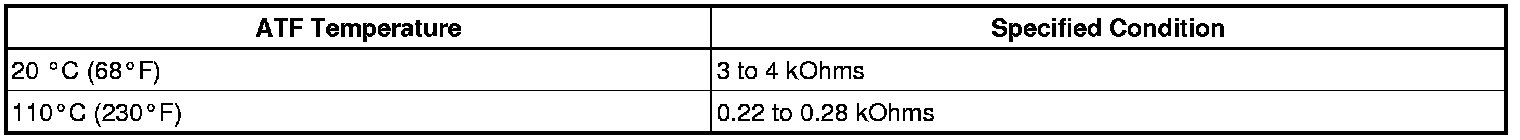

Standard resistance:
