Removal

AA80E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Removal

3. REMOVE VALVE BODY OIL STRAINER ASSEMBLY Removal

4. REMOVE TRANSMISSION VALVE BODY ASSEMBLY Removal

5. REMOVE TRANSMISSION WIRE






(a) Disconnect the 3 speed sensor connectors.






(b) Disconnect the wire connector.
HINT:

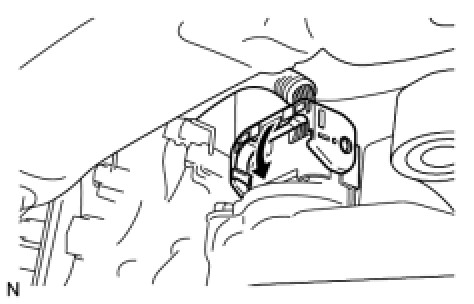

Detach the claw, press down the lever, and then disconnect the transmission wire connector.

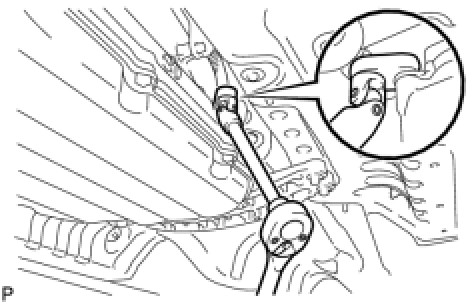

(c) Using a union nut wrench, remove the bolt and pull out the transmission wire.
(d) Remove the O-ring from the transmission wire connector.
