Installation

AA80E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSTALLATION

1. INSTALL TRANSMISSION WIRE






(a) Coat a new O-ring with ATF and install it to the transmission wire connector.
(b) Install the transmission wire.

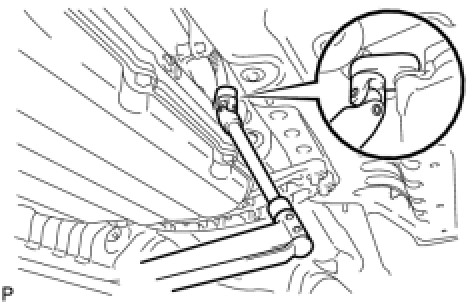

(c) Using a union nut wrench 10 mm, install the bolt.
without a union nut wrench - Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
with a union nut wrench - Torque: 4.8 Nm (49 kgf-cm, 42 in-lbf)
NOTICE:
Use a torque wrench with a fulcrum length of 185 mm (7.28 in.).





(d) Connect the wire connector.
HINT:
Push up the lever until the claw of the transmission wire connector makes a connection sound.





(e) Connect the 3 speed sensor connectors.
2. INSTALL TRANSMISSION VALVE BODY ASSEMBLY Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Installation

5. ADD AUTOMATIC TRANSMISSION FLUID
(a) Add automatic transmission fluid AA80E Automatic Transmission.
