Home >> Lexus >> 2008 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Service and Repair >> Front Lower Suspension Arm >> Components

Components

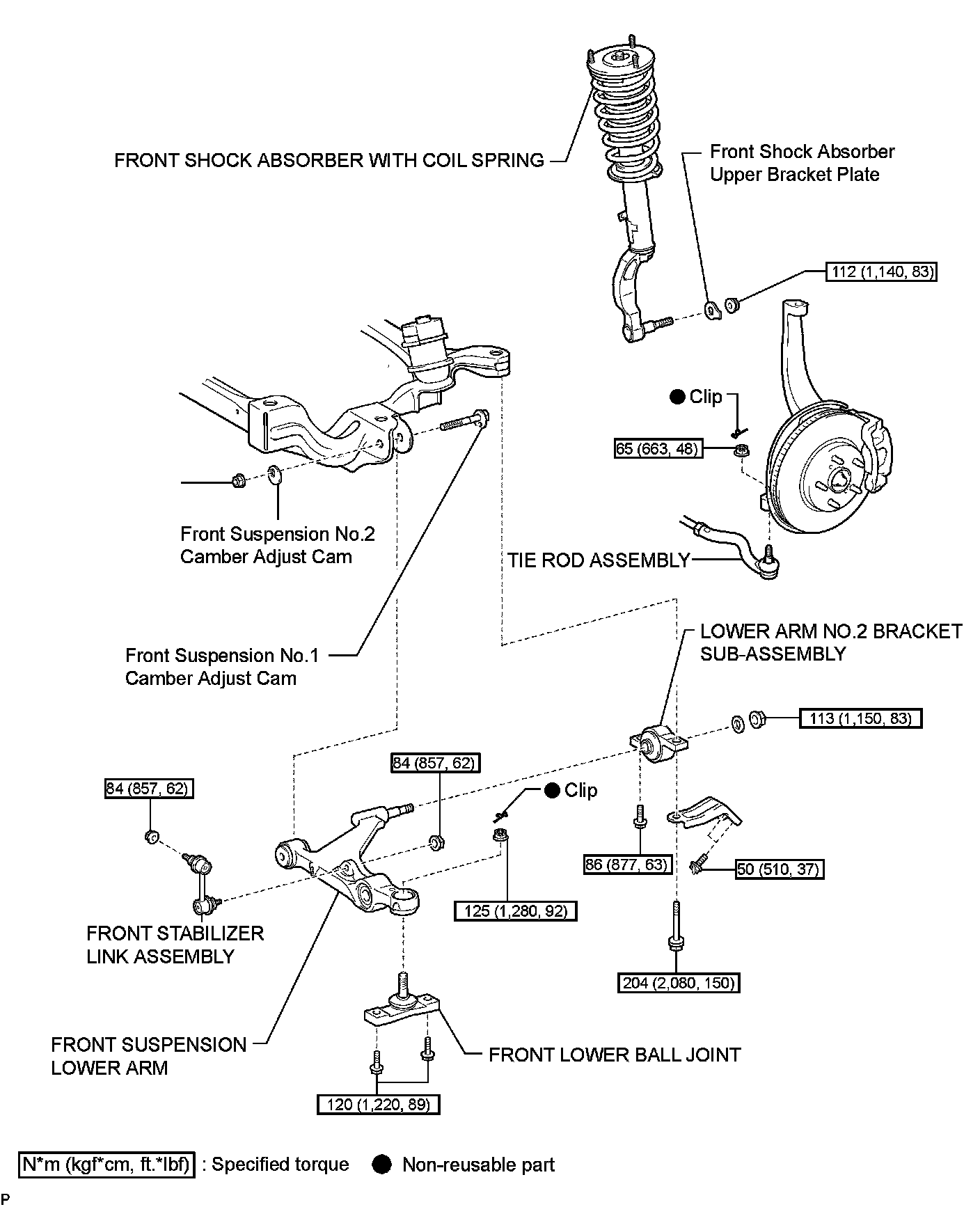

SUSPENSION: FRONT LOWER SUSPENSION ARM (for 4WD): COMPONENTS

SUSPENSION: FRONT LOWER SUSPENSION ARM

ILLUSTRATION
