Components

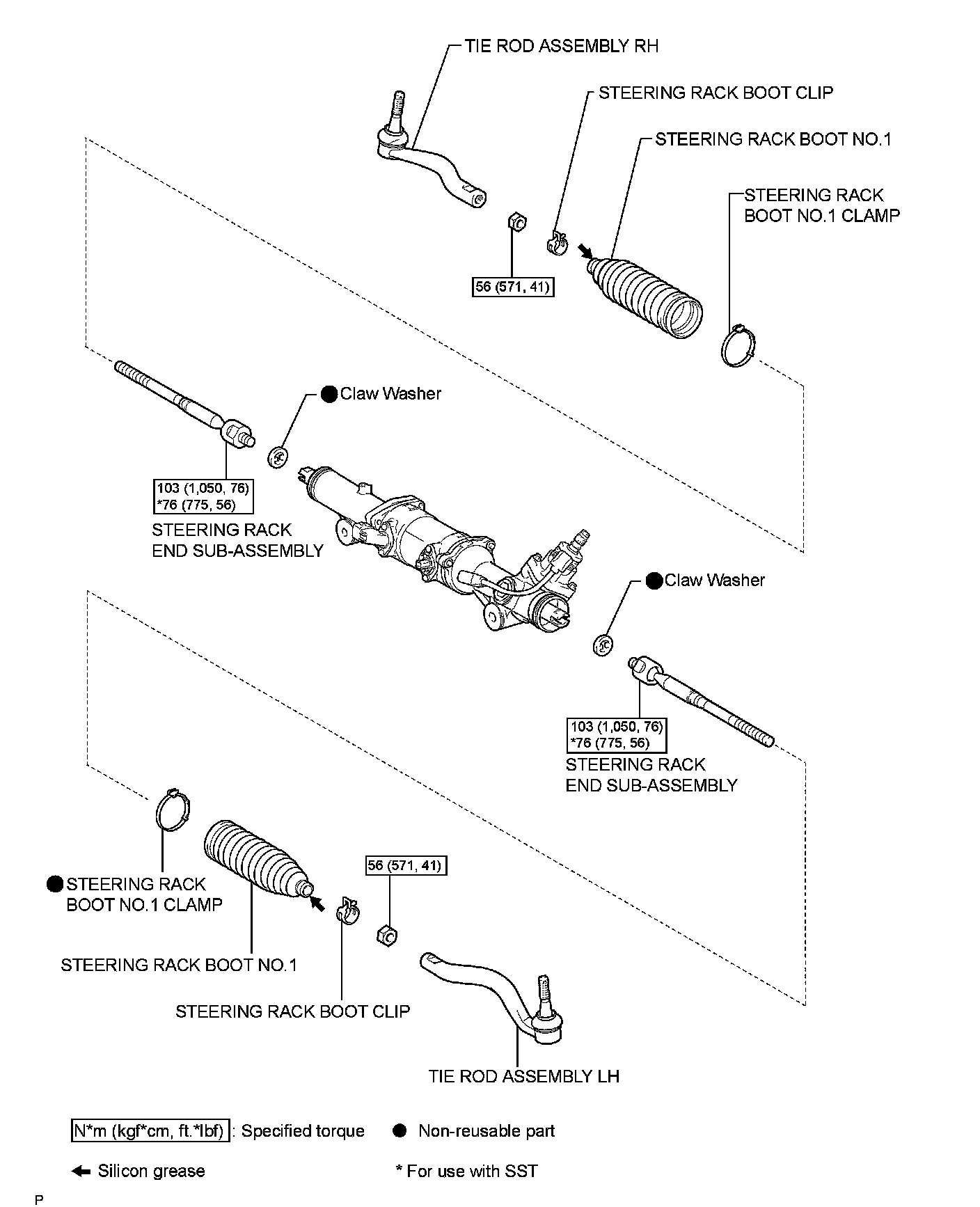

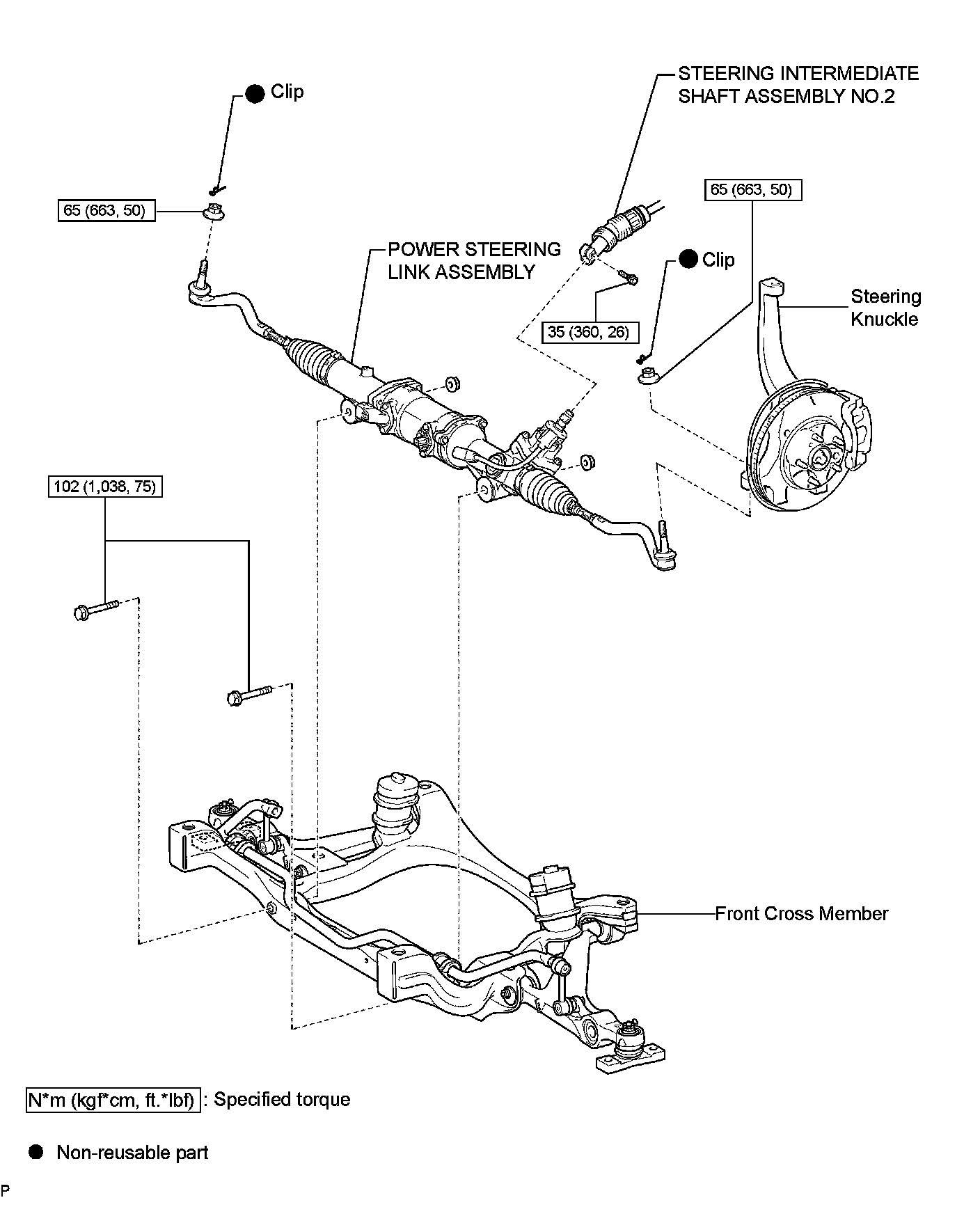

POWER STEERING: STEERING GEAR (for 4WD): COMPONENTS

POWER STEERING: STEERING GEAR

ILLUSTRATION
