Symptom Related Diagnostic Procedures

STEERING COLUMN: ELECTRIC STEERING LOCK: PROBLEM SYMPTOMS TABLE

Inspect the suspected areas in numerical order by referring to the corresponding pages when any of the following symptoms occurs.

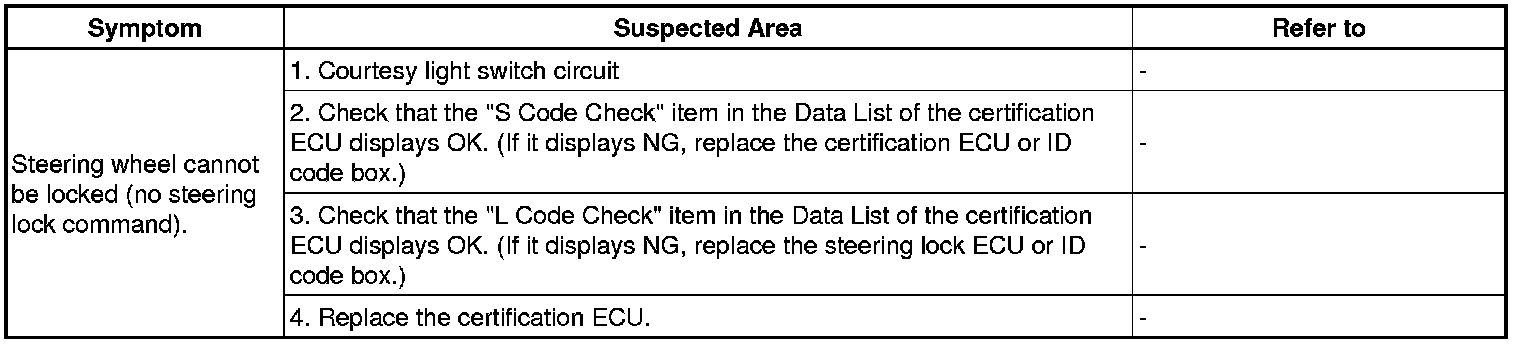

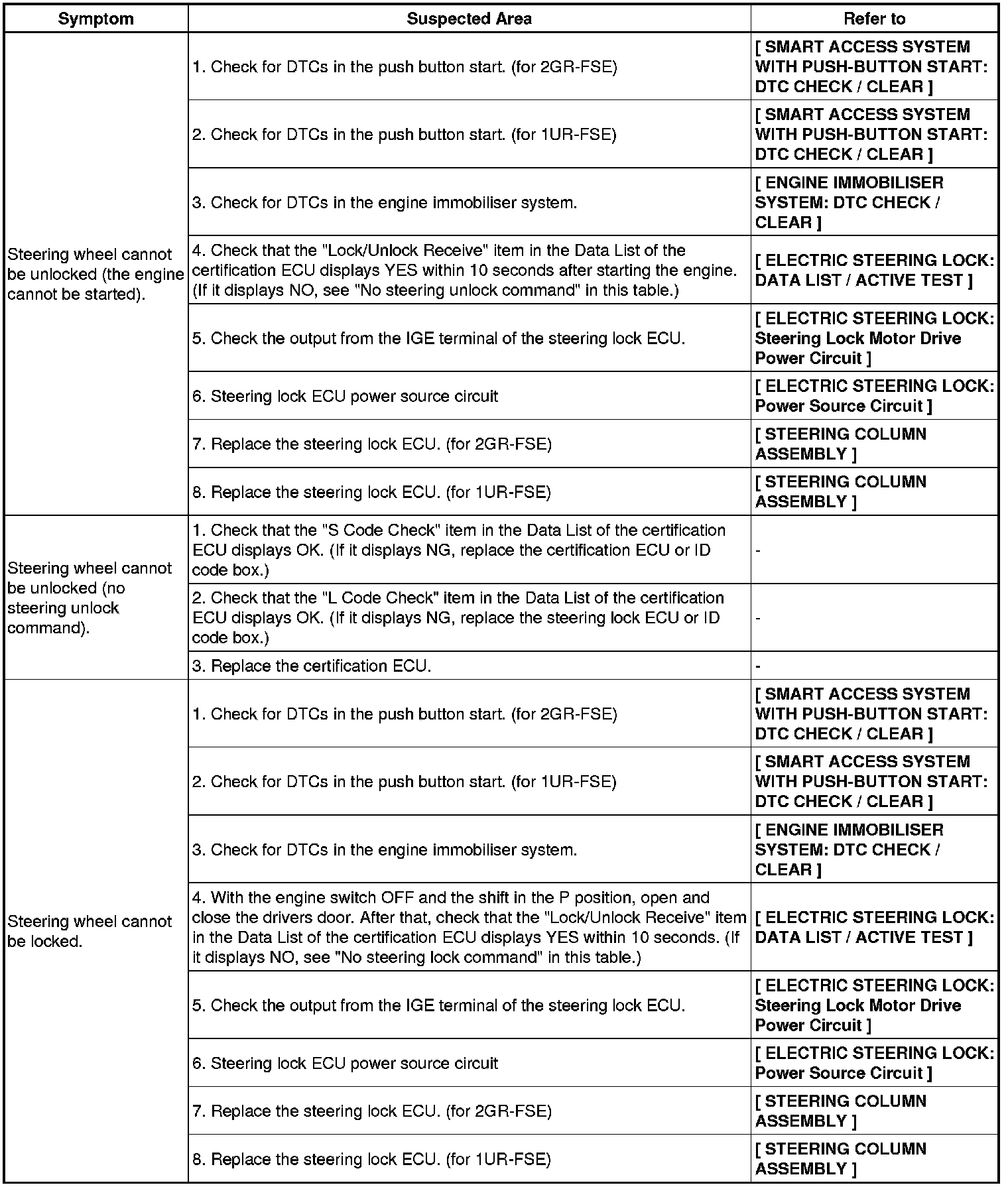

STEERING LOCK FUNCTION

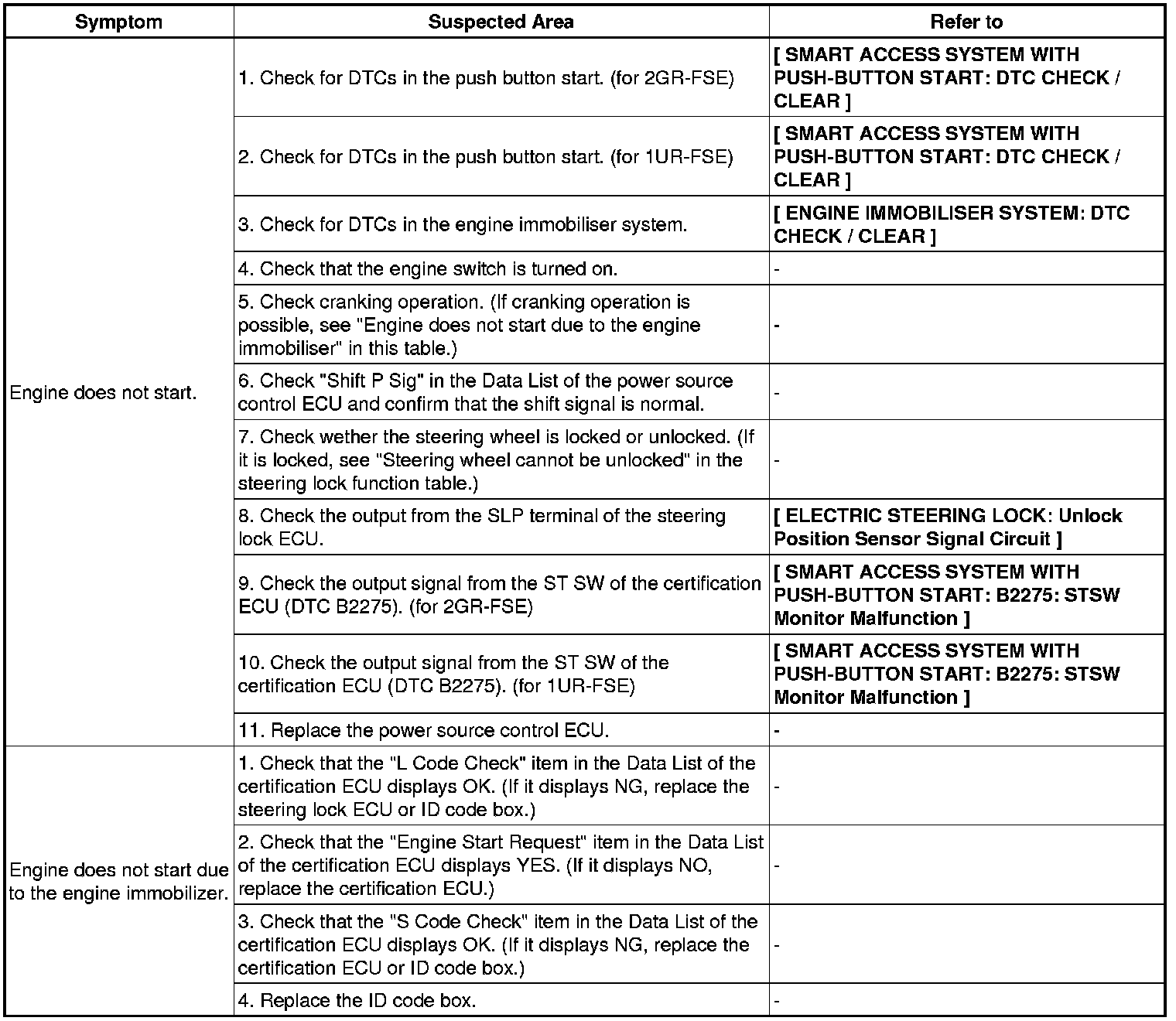

PUSH BUTTON START FUNCTION
