Home >> Lexus >> 2008 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Steering Column Lock >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

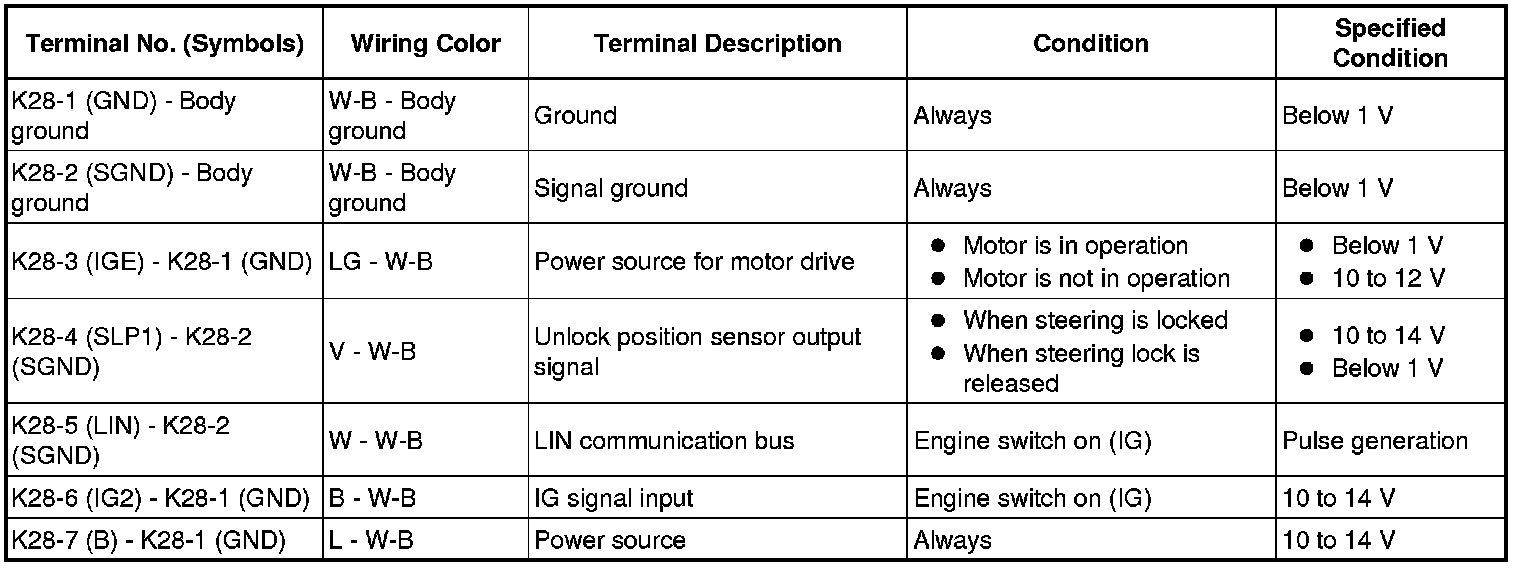

STEERING COLUMN: ELECTRIC STEERING LOCK: TERMINALS OF ECU

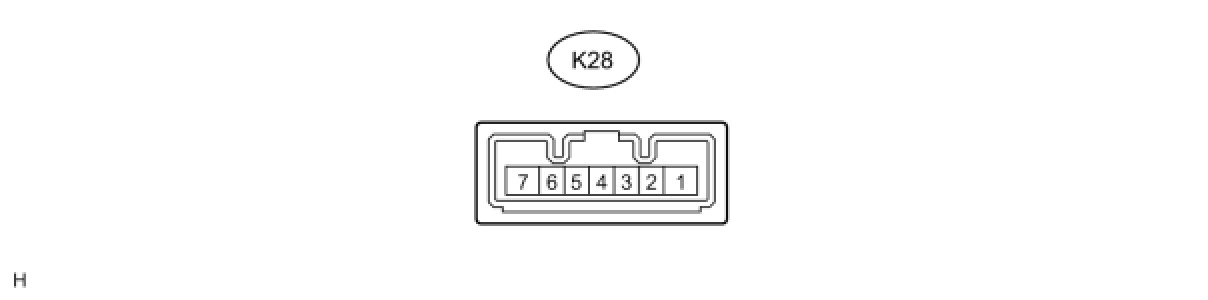

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
