Seat Belt Systems









SERVICE SPECIFICATIONS: SEAT BELT: TORQUE SPECIFICATIONS

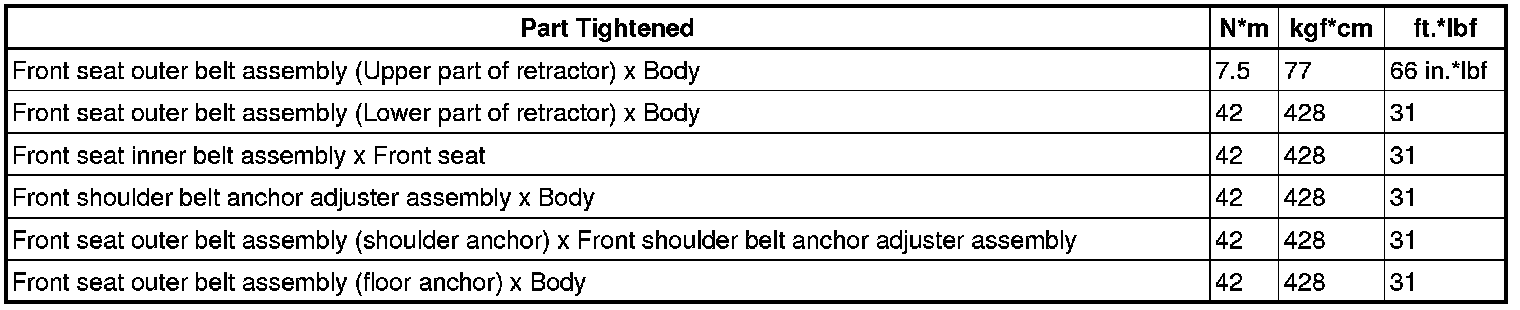

FRONT SEAT BELT

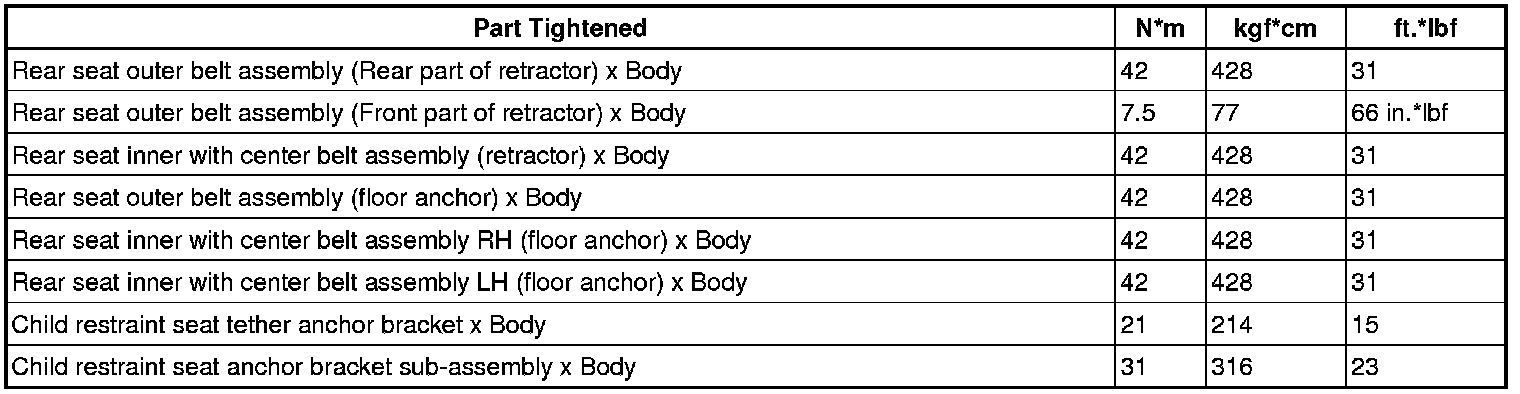

REAR SEAT BELT





SEAT BELT CONTROL ECU
