Installation

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY

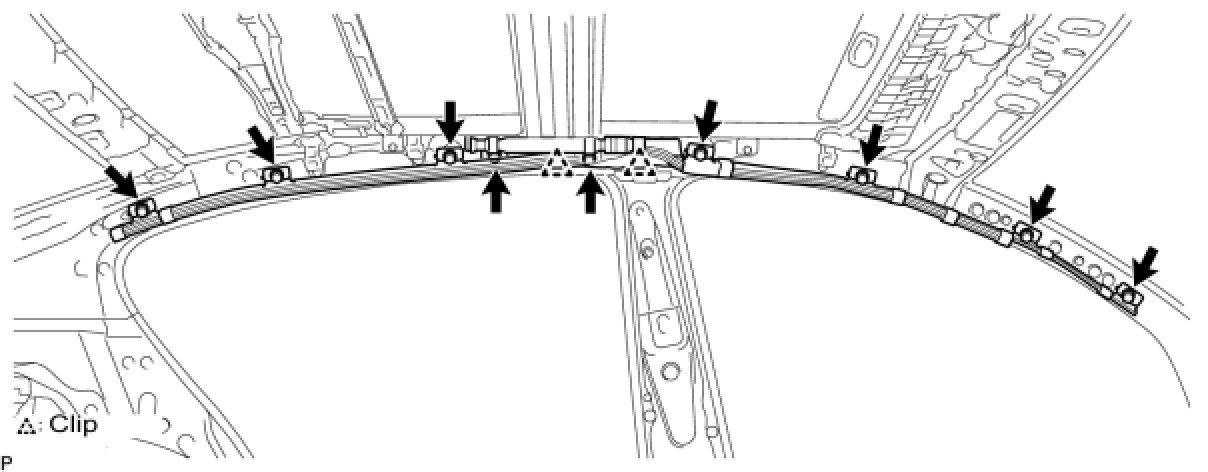

(a) Install the curtain shield airbag assembly with the 2 clips and 9 new bolts.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)





NOTICE:
Do not twist the curtain shield airbag assembly when installing it.

(b) Connect the connector.
NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL ROOF HEADLINING ASSEMBLY
Installation
HINT:
Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY".

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
5. INSPECT SRS WARNING LIGHT
