A760E Automatic Transmission

A760E AUTOMATIC TRANSMISSION: SHIFT SOLENOID VALVE: INSPECTION

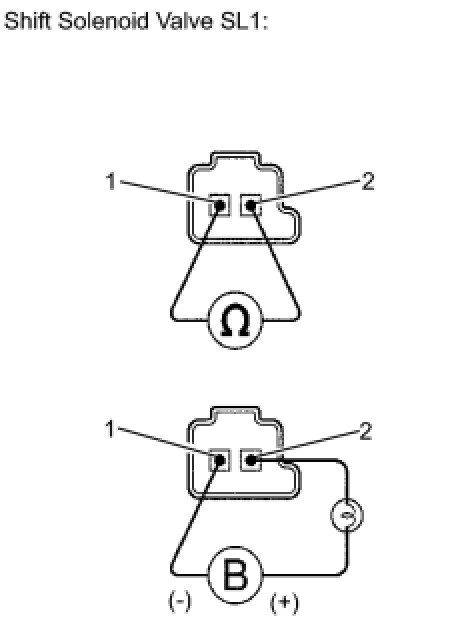

1. INSPECT SHIFT SOLENOID VALVE (SL1)

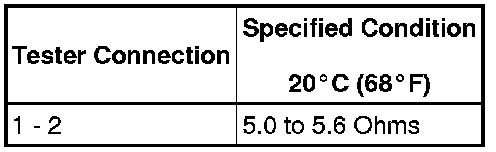

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.

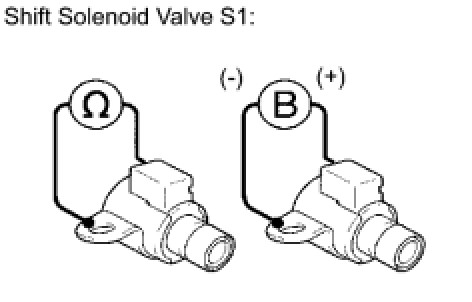

2. INSPECT SHIFT SOLENOID VALVE (S1)

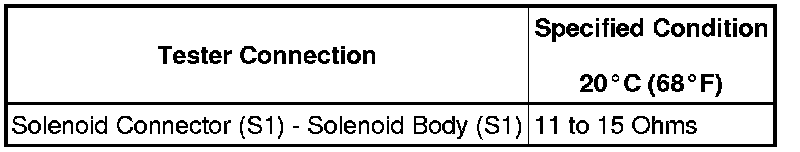

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.

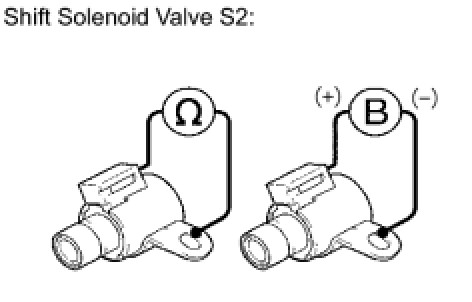

3. INSPECT SHIFT SOLENOID VALVE (S2)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.

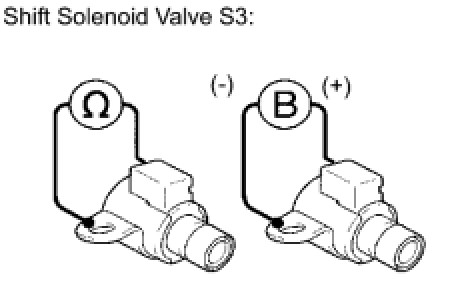

4. INSPECT SHIFT SOLENOID VALVE (S3)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.

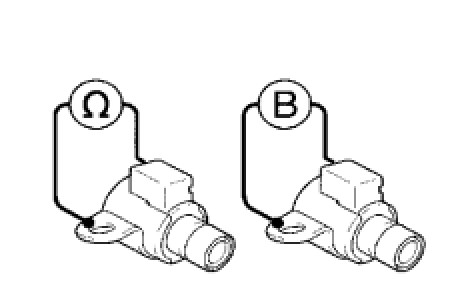

5. INSPECT SHIFT SOLENOID VALVE (S4)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.
6. INSPECT SHIFT SOLENOID VALVE (SL2)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.
7. INSPECT SHIFT SOLENOID VALVE (SR)

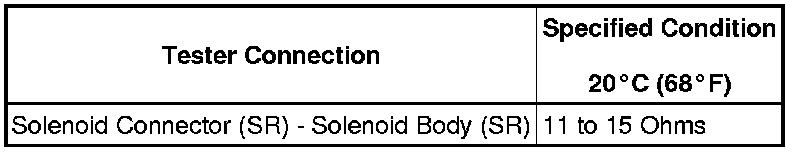

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.
8. INSPECT SHIFT SOLENOID VALVE (SLT)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.
9. INSPECT SHIFT SOLENOID VALVE (SLU)






(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.
NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:
The solenoid makes an operating sound.
