Installation

2GR-FSE FUEL: FUEL PUMP RESISTOR: INSTALLATION

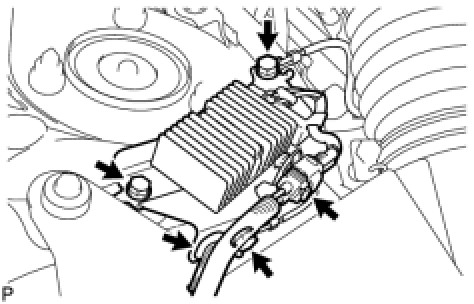

1. INSTALL FUEL PUMP RESISTOR






(a) Install the fuel pump resistor with the bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
(b) Connect the 2 ground wires with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(c) Connect the connector with the clamp.
2. INSTALL ENGINE ROOM RH SIDE COVER Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
