Cabin Air Filter / Purifier: Service and Repair
Step 1. Set the air conditioning system to recirculated mode. The airconditioning filter case cannot be removed with the system in the outside air mode.
Step 2. Turn the "ENGINE START STOP" switch to OFF.

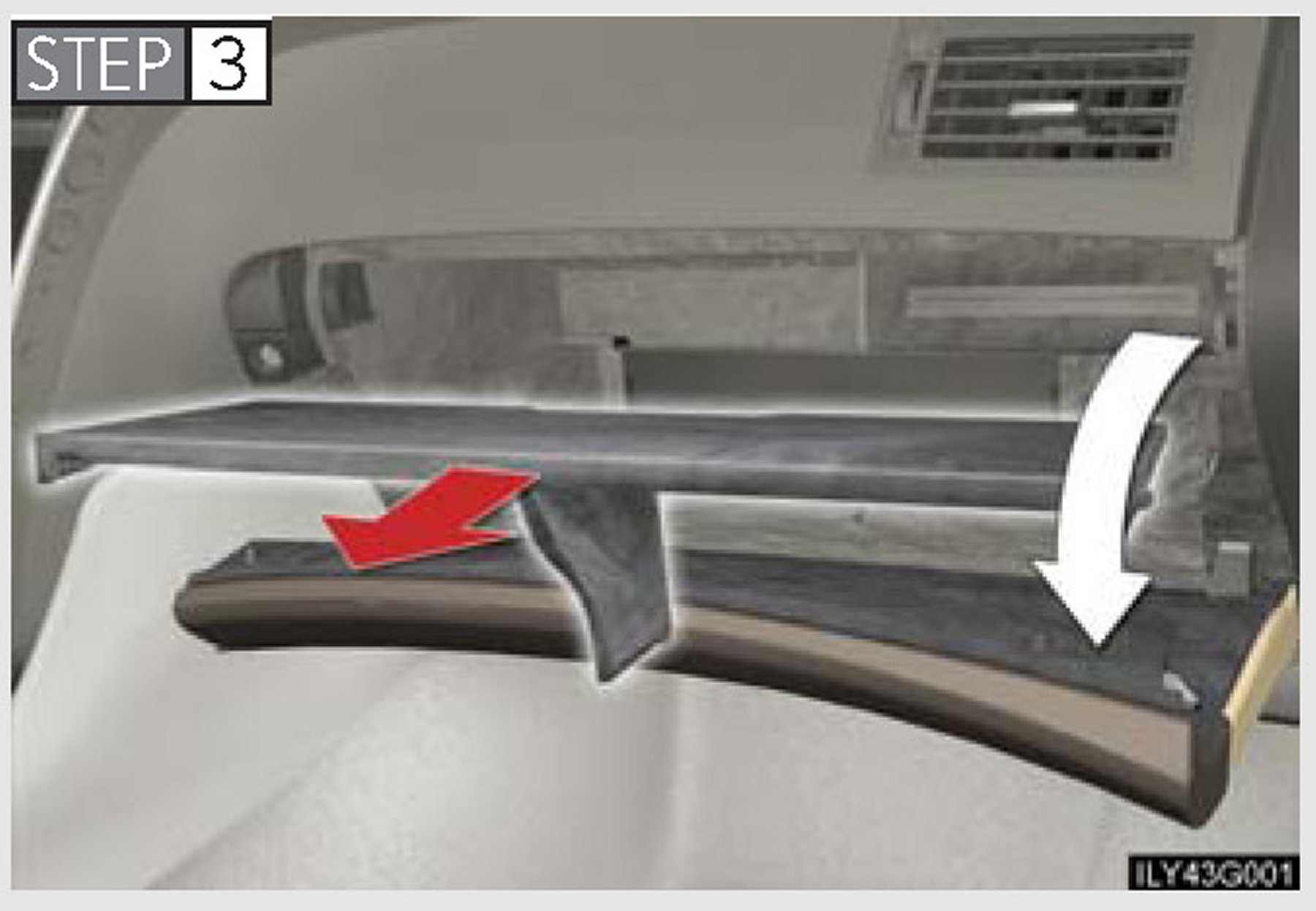

Step 3. Open the glove box and remove the partition.

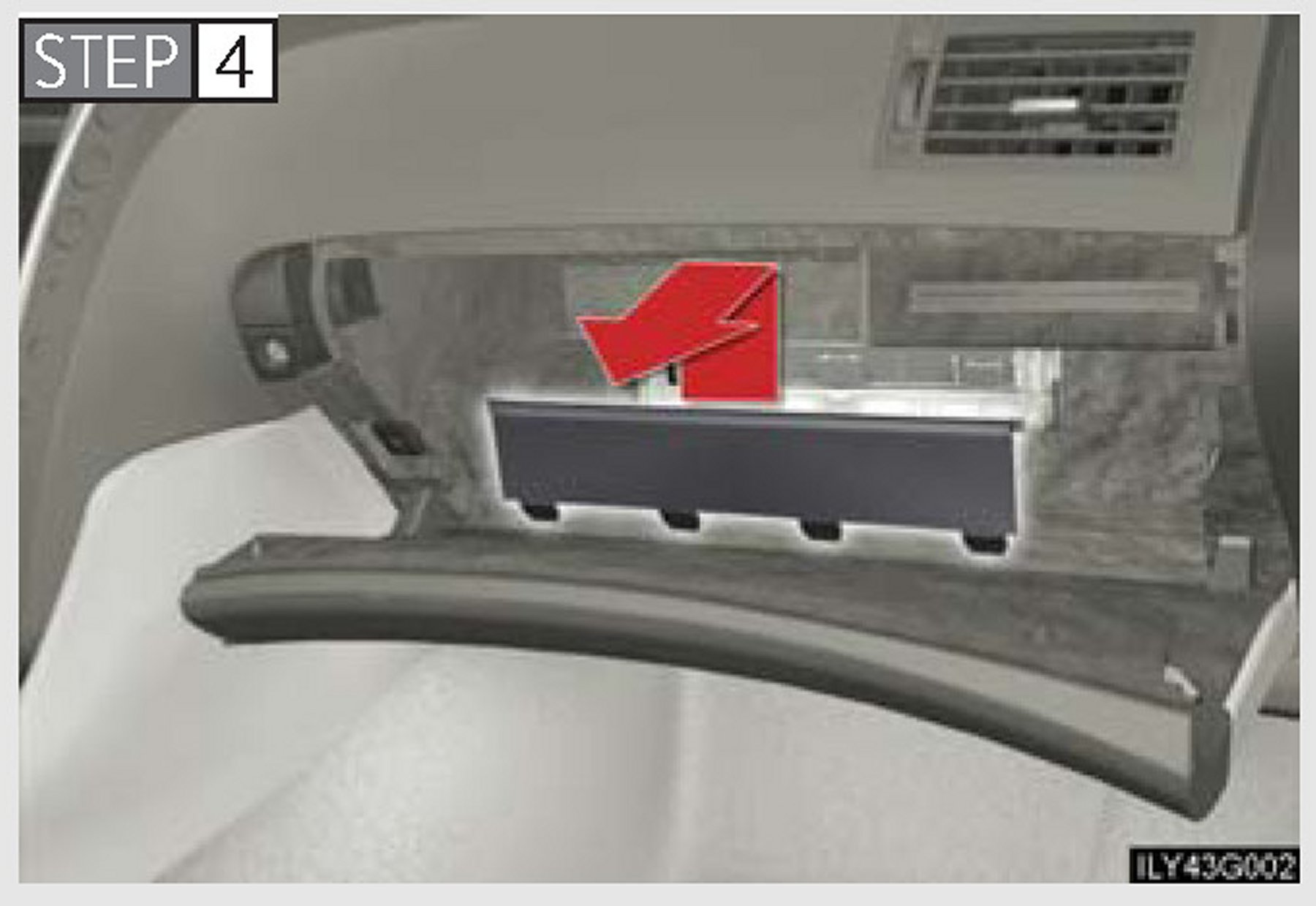

Step 4. Remove the filter cover.

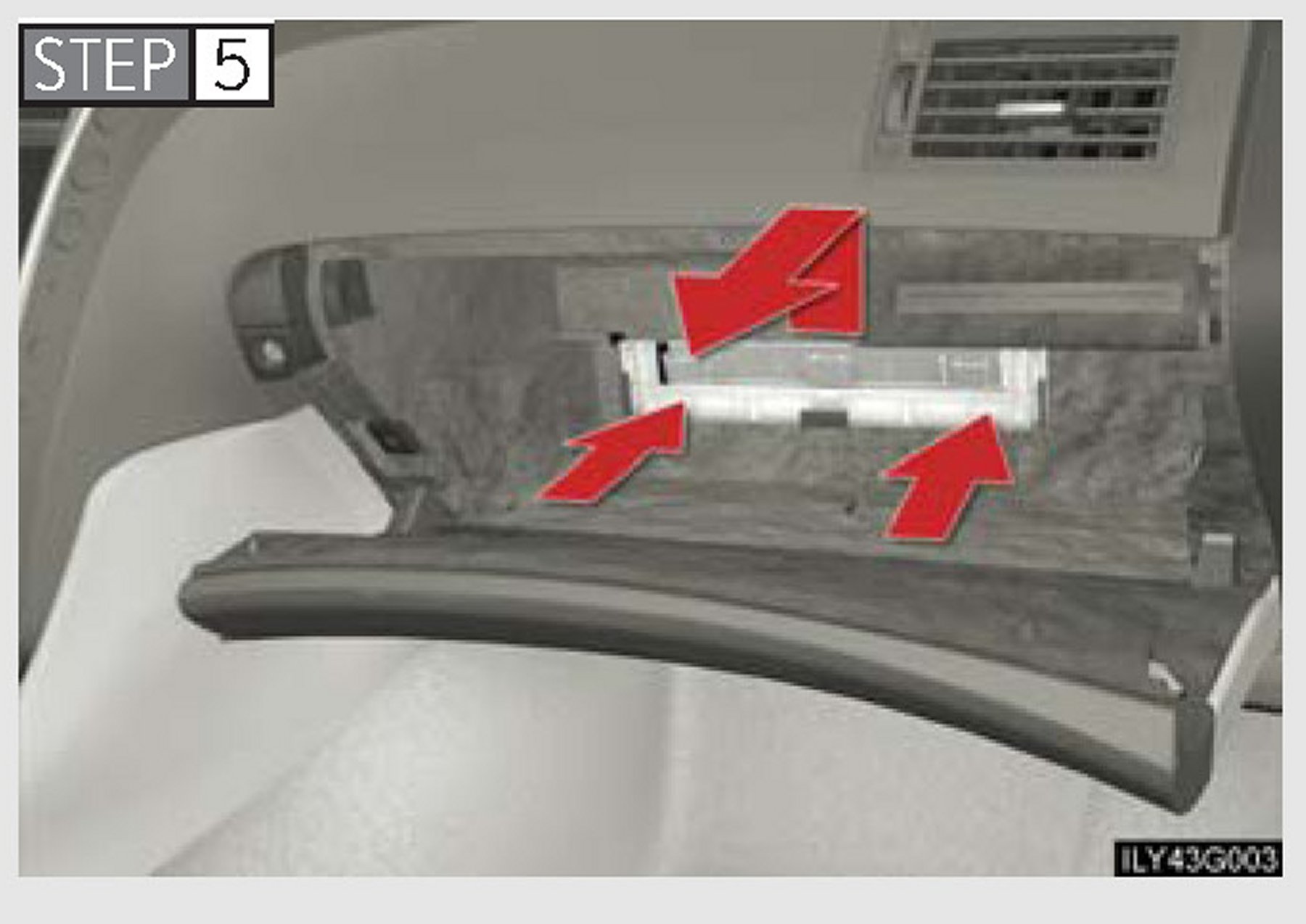

Step 5. Press the tabs and remove the filter case.
Reverse procedure to install new filter.

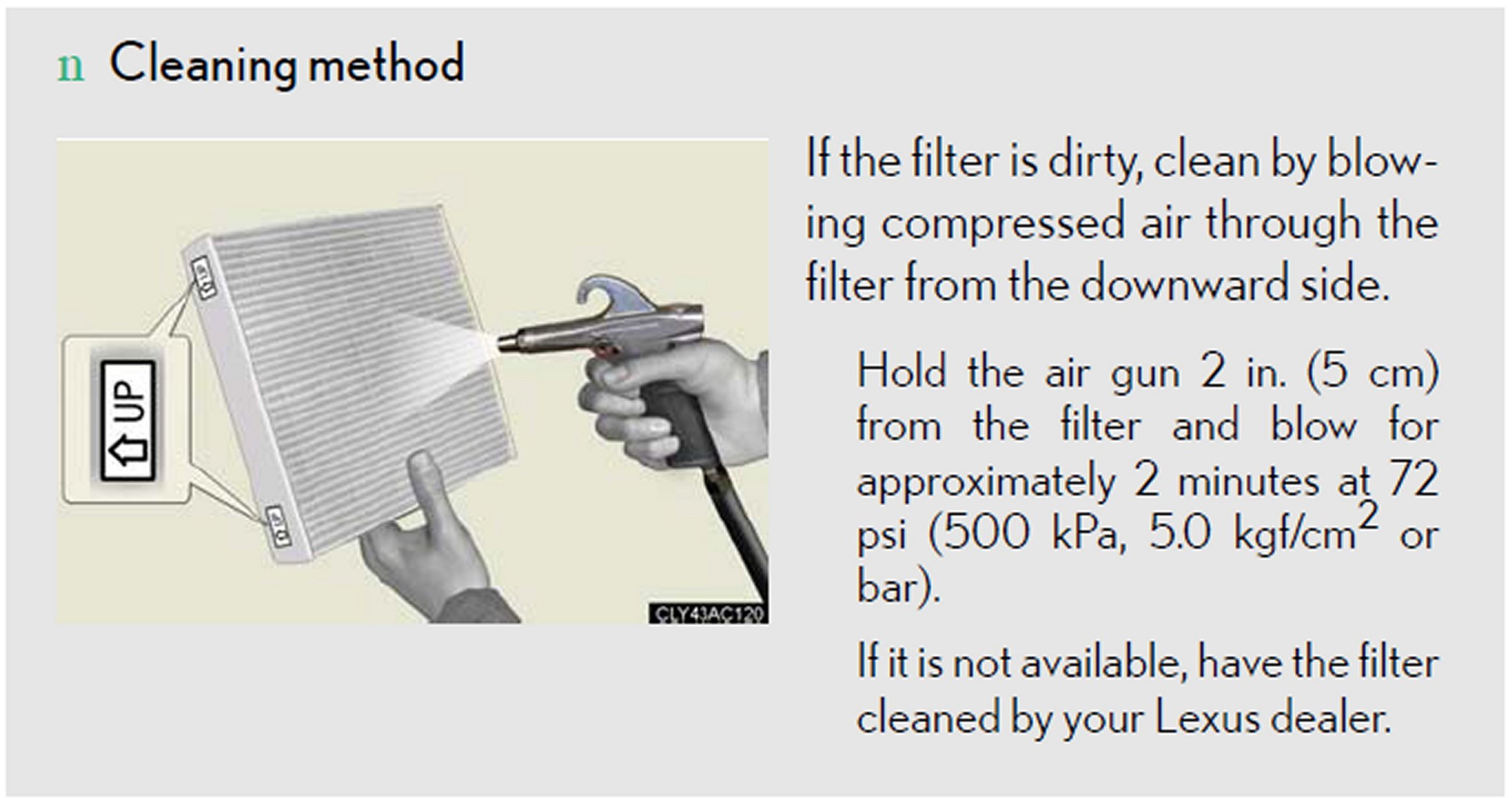

Cleaning method.
