Dome Lamp: Testing and Inspection

LIGHTING: ROOM LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

1. CHECK REAR ROOM LIGHT ASSEMBLY

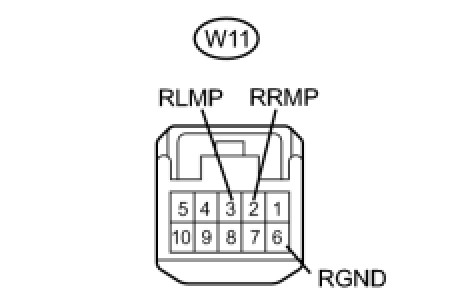

(a) Measure the voltage of the connector.

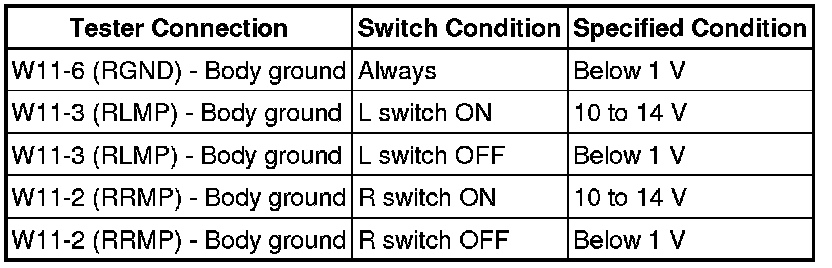

Standard voltage:





If the result is not as specified, replace the light assembly.
