Installation

METER: COMBINATION METER: INSTALLATION

1. INSTALL COMBINATION METER GLASS





(a) Install the glass and attach the 7 claws.

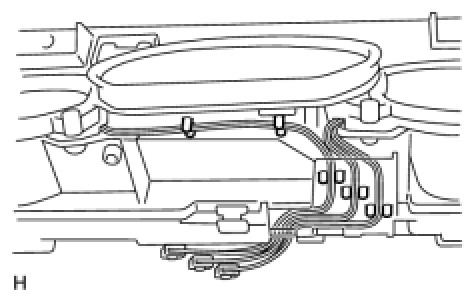

(b) Install the combination meter glass's wire harness with the clamps.






(c) Connect the 3 connectors.

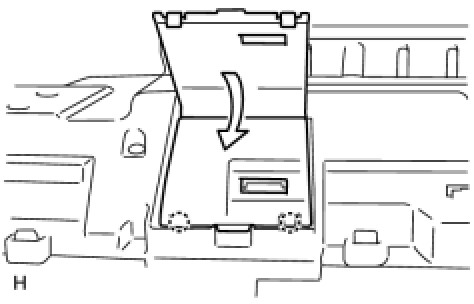

(d) Close the cover.
(e) Attach the 2 claws.






2. INSTALL COMBINATION METER ASSEMBLY
(a) Connect the connector.
(b) Install the combination meter with the 4 screws.

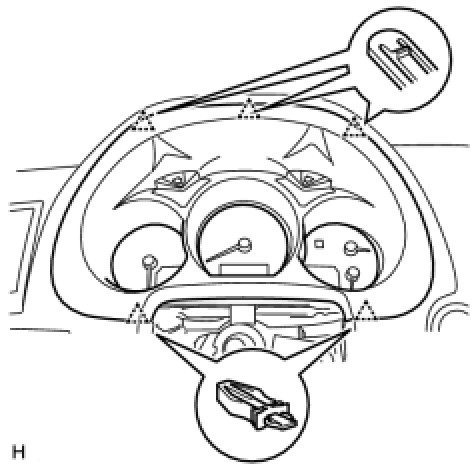

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
(a) Connect the connector.
(b) Attach the 5 clips to install the cluster finish panel.
4. INSTALL STEERING COLUMN COVER UPPER
For 2GR-FSE Installation
For 1UR-FSE Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

Perform initialization Repair Instruction - Initialization.
7. CHECK SRS WARNING LIGHT
Check SRS warning light Service Precautions.
