System Diagram
System Diagram

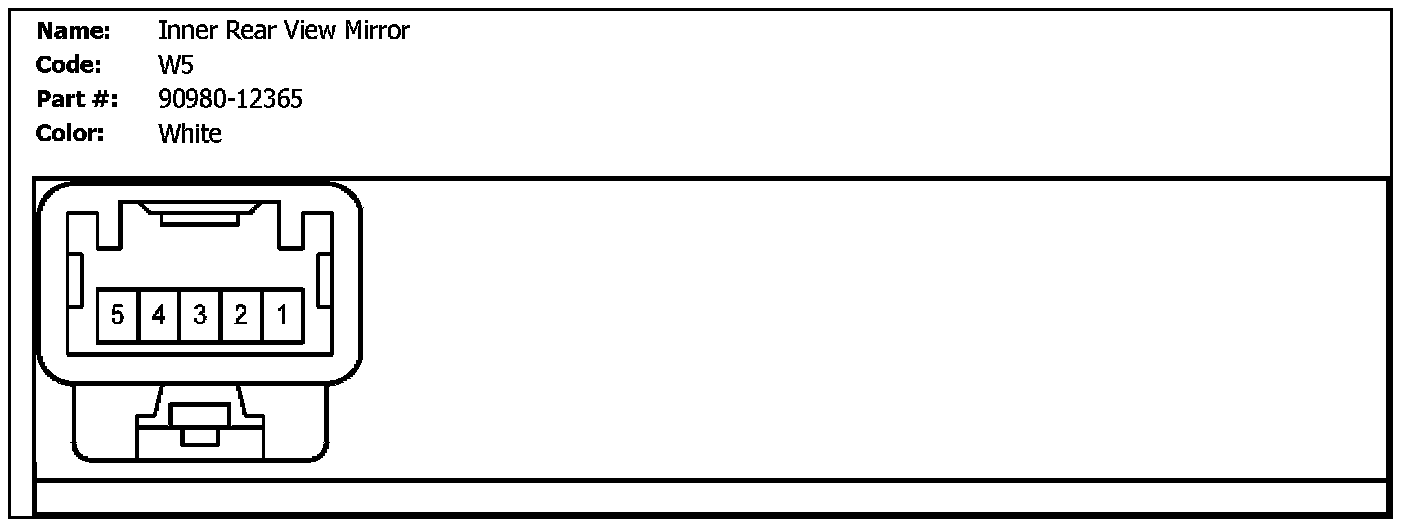

W5 (Inner Rear View Mirror):
z5 (Door ECU (Front RH), Outer Rear View Mirror (RH):
z6 (Door ECU (Front LH), Outer Rear View Mirror (LH)):
