Front Seatback Heater

SEAT: FRONT SEATBACK HEATER: INSPECTION





1. INSPECT FRONT SEATBACK HEATER LH

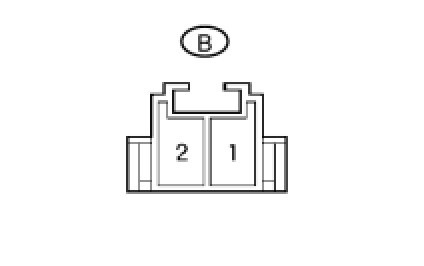

(a) Disconnect the B heater connector.
(b) Measure the resistance of the heater.
Standard resistance:





If the result is not as specified, the heater may have a malfunction.






2. INSPECT FRONT SEATBACK HEATER RH
(a) Disconnect the B heater connector.
(b) Measure the resistance of the heater.
Standard resistance:





If the result is not as specified, the heater may have a malfunction.
