Home >> Lexus >> 2008 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Description and Operation >> System Diagram

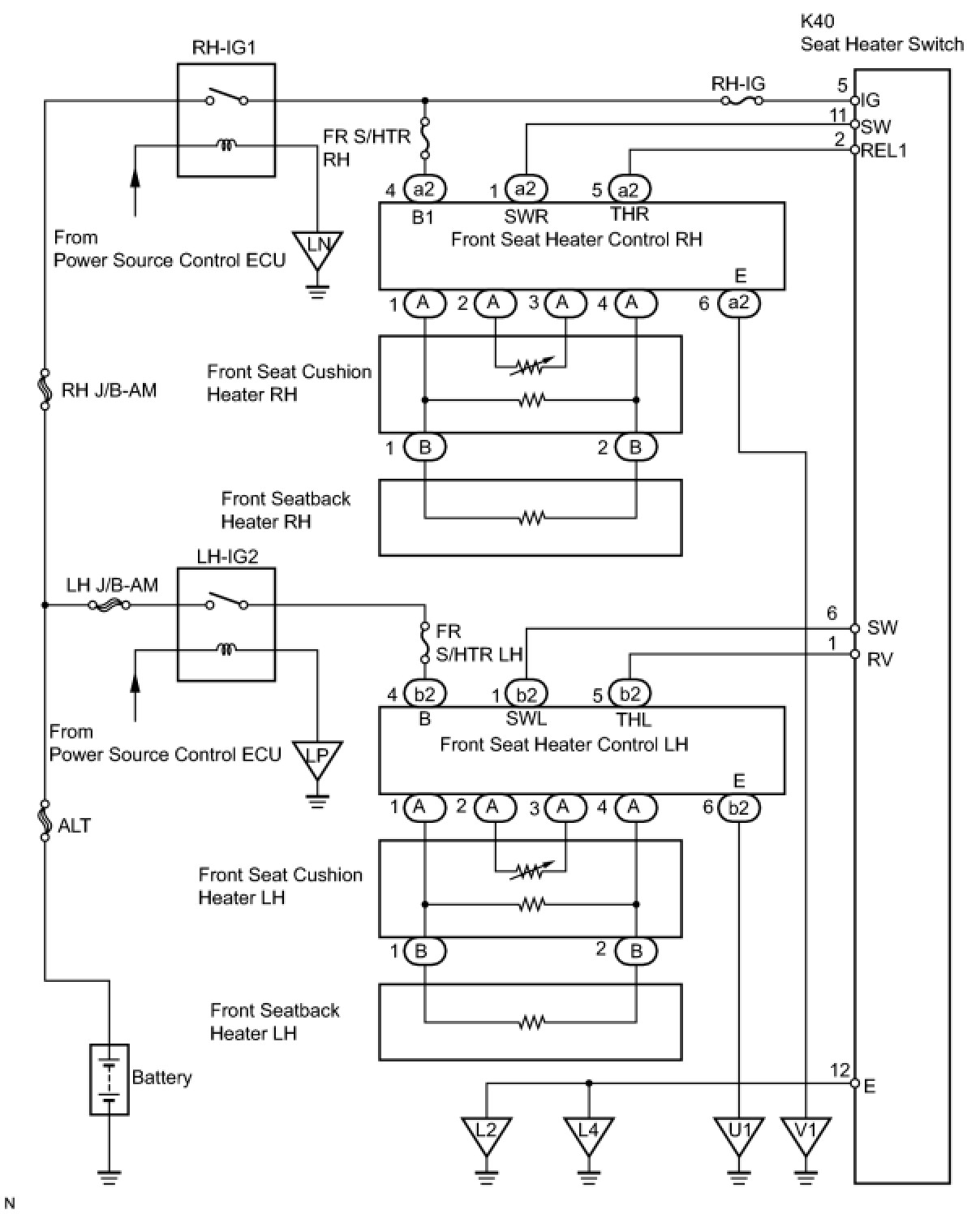

System Diagram









SEAT: SEAT HEATER SYSTEM: SYSTEM DIAGRAM
