Removal

AUDIO / VISUAL: REAR DOOR SPEAKER: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG [1][2]Removal

2. REMOVE REAR DOOR TRIM PANEL ASSEMBLY [1][2]Removal

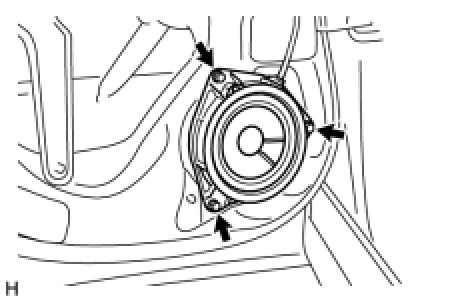

3. REMOVE REAR SPEAKER ASSEMBLY
(a) Disconnect the connector.
(b) Remove the 3 screws and speaker.
HINT:
Do not touch the cone part of the speaker.

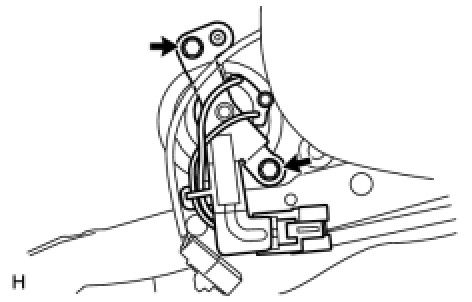

4. REMOVE REAR NO. 2 SPEAKER ASSEMBLY
(a) Disconnect the connector.






(b) Remove the 2 screws and speaker.
HINT:
Do not touch the cone part of the speaker.
