Removal

AUDIO / VISUAL: FRONT DOOR SPEAKER: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG Removal

2. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY Removal







3. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
(a) Disconnect the connector.

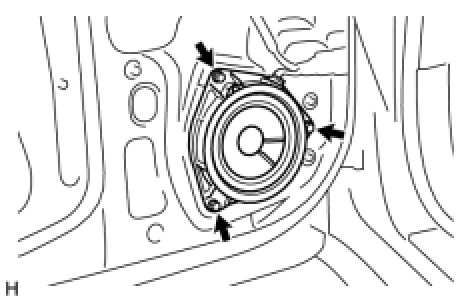

(b) Remove the 3 screws and speaker.
HINT:
Do not touch the cone part of the speaker.
