No Sound can be Heard from Speakers

NAVIGATION: NAVIGATION SYSTEM: No Sound can be Heard from Speakers

No Sound can be Heard from Speakers

INSPECTION PROCEDURE

PROCEDURE

1. CHECK SOUND SETTING

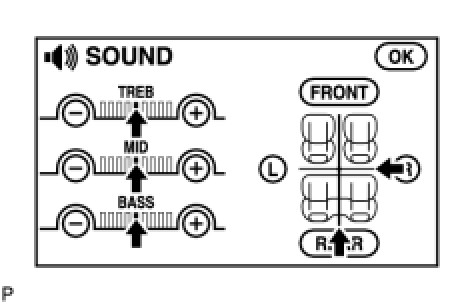

(a) Enter the sound adjustment screen by pressing the "SOUND" switch on the AUDIO display.
(b) Set volume, fader, and balance to the initial values and check that sound is normal.
OK:
Sound returns to normal.
HINT:
Sound quality adjustment items vary depending on the type of the amplifier.

OK -- END
NG -- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
