Installation

AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION

HINT:
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

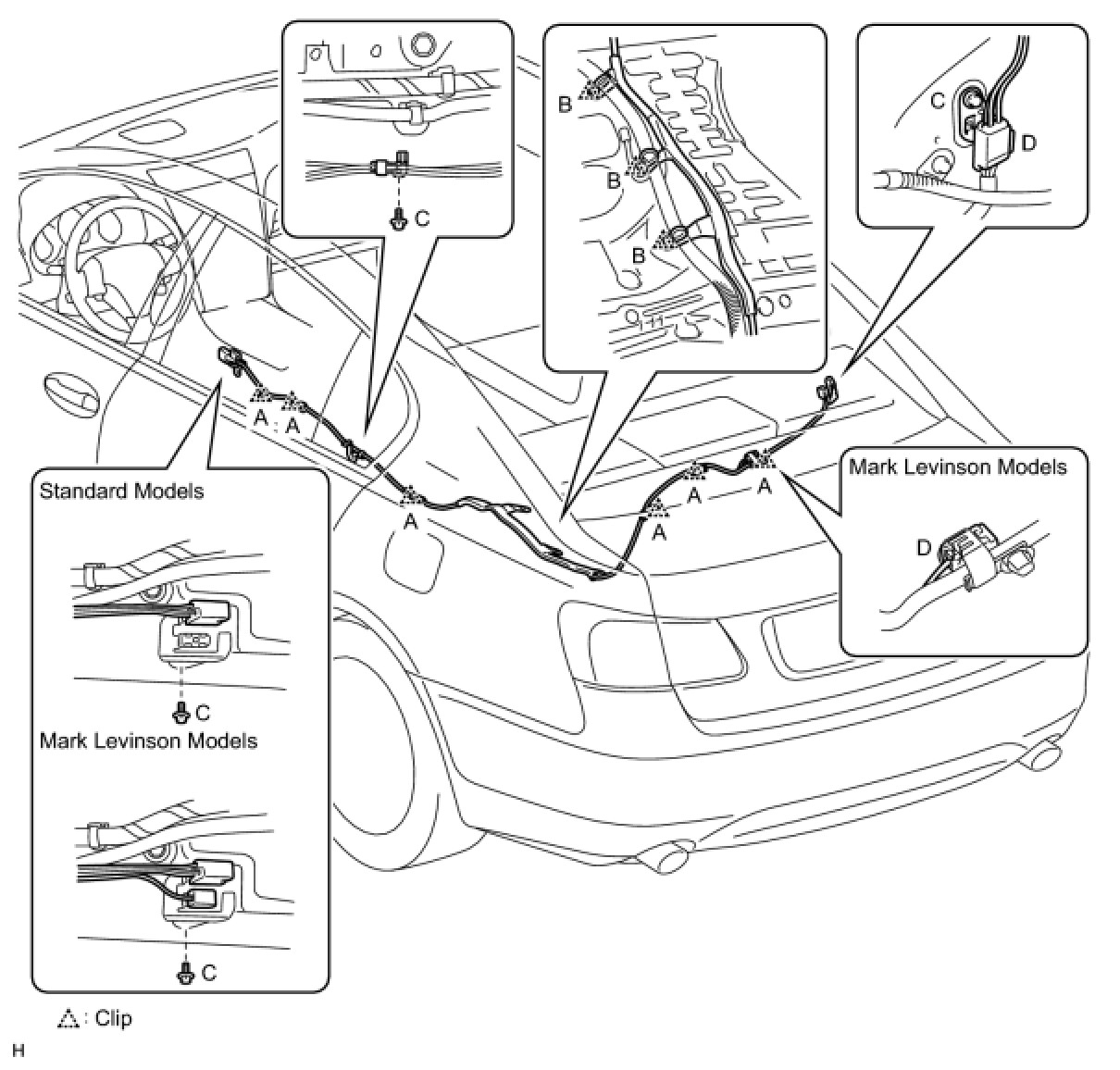

1. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY





(a) Attach the 6 clips labeled A.
(b) Attach the antenna cord protector's 3 clips labeled B to the floor stud bolts.
(c) Install the 3 bolts labeled C.
(d) Connect the connectors labeled D.
2. INSTALL REAR SEAT SIDE GARNISH RH Installation

3. INSTALL REAR DOOR SCUFF PLATE RH Installation

4. INSTALL REAR SEATBACK ASSEMBLY Installation

5. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH
6. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
7. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

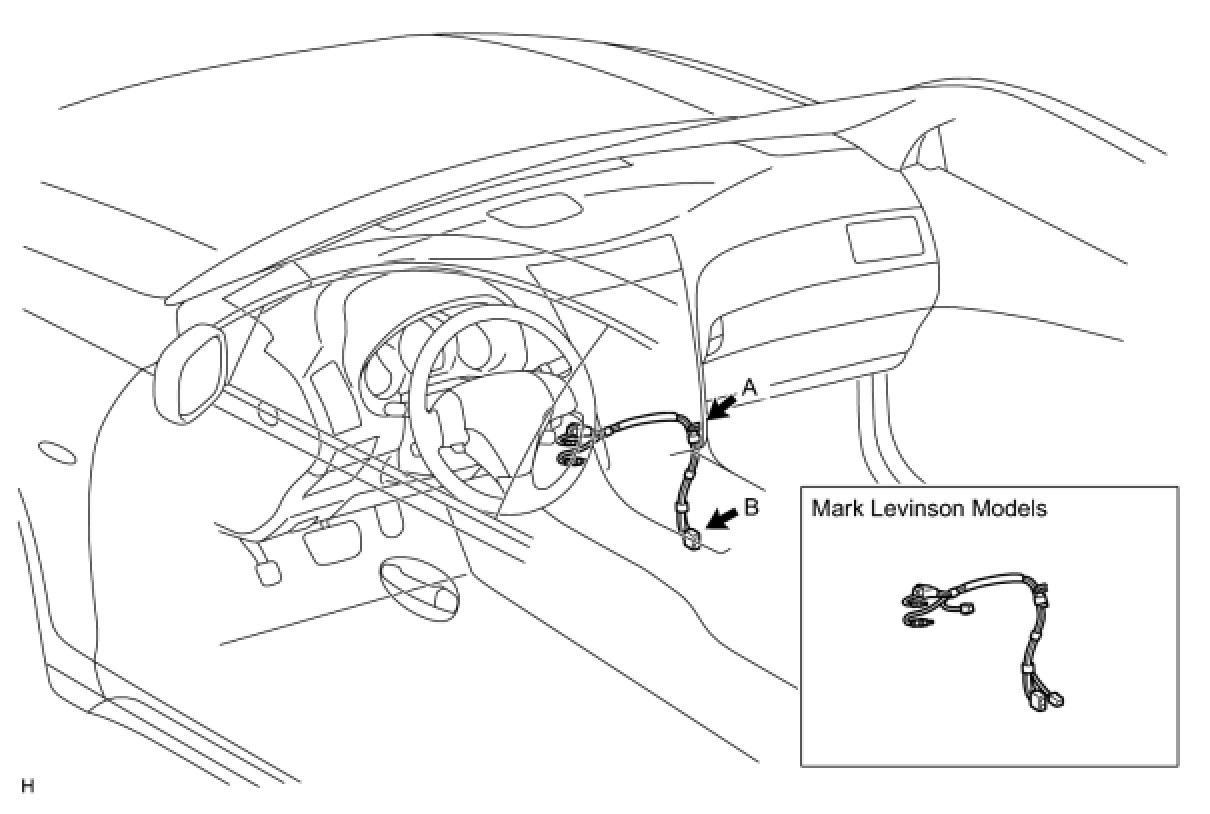

8. INSTALL ANTENNA CORD SUB-ASSEMBLY





(a) Attach the clip labeled A.
(b) Connect the connector labeled B.
9. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation

10. INSTALL CONSOLE BOX Installation

11. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

12. INSTALL CONSOLE BOX PLATE Installation

13. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

14. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

15. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation

16. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation

17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
18. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
