Removal

CELLULAR COMMUNICATION: TELEPHONE ANTENNA: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.
3. REMOVE TELEPHONE ANTENNA ASSEMBLY






(a) Detach the 4 claws and remove the 2 antenna cord connectors.






(b) Detach the 2 claws and remove the protector.






(c) Disconnect the 2 connectors.

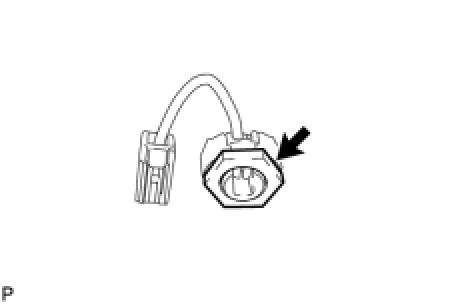

(d) Remove the antenna nut.






(e) Detach the 2 claws and remove the telephone antenna.
