Home >> Lexus >> 2008 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Transfer Case Four Wheel Drive Control System - UF1AE

Transfer Case Four Wheel Drive Control System - UF1AE

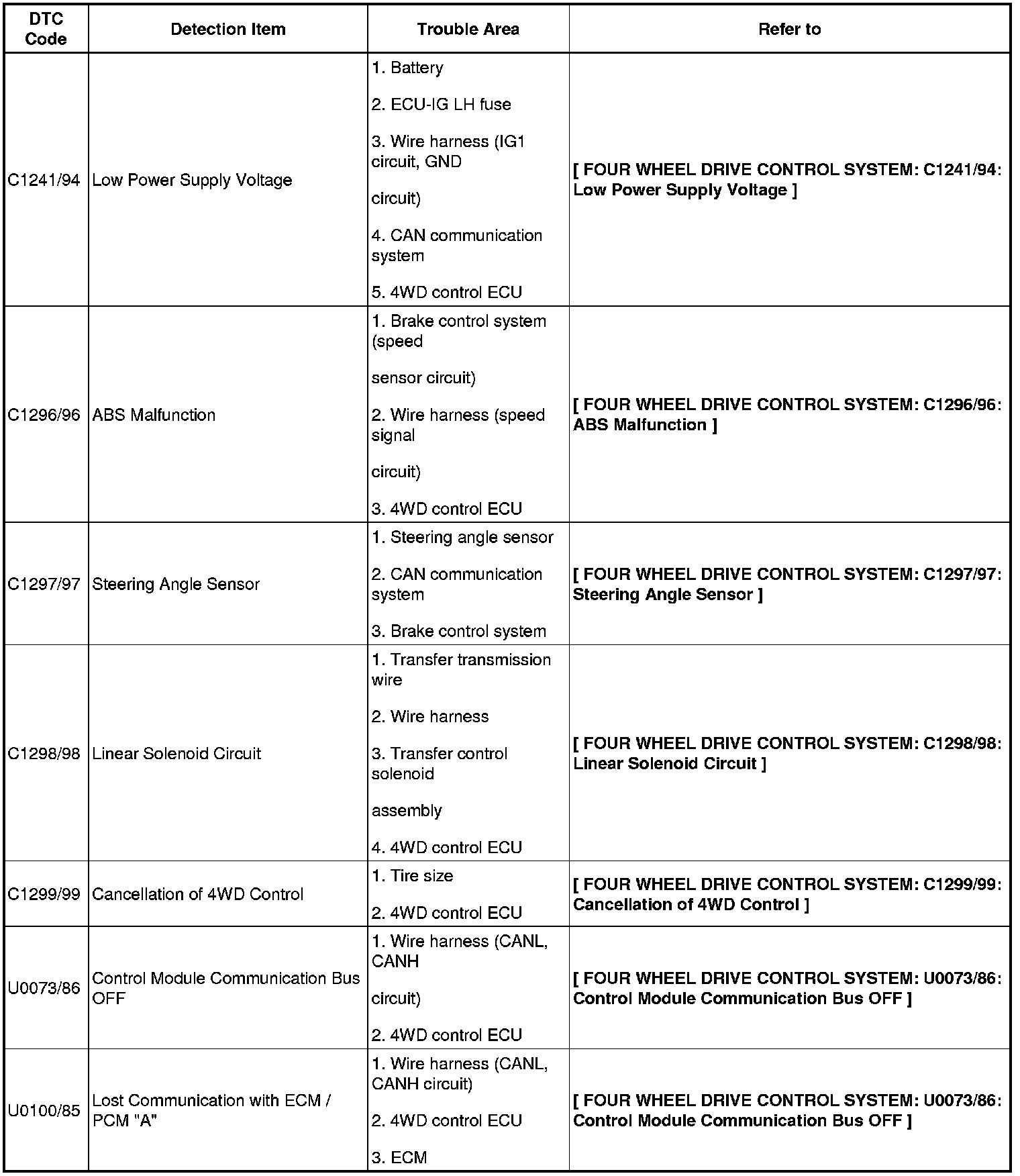

UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

FOUR WHEELS DRIVE CONTROL SYSTEM

C2141/94 - C1299/99, U0073/86 - U0100/85:

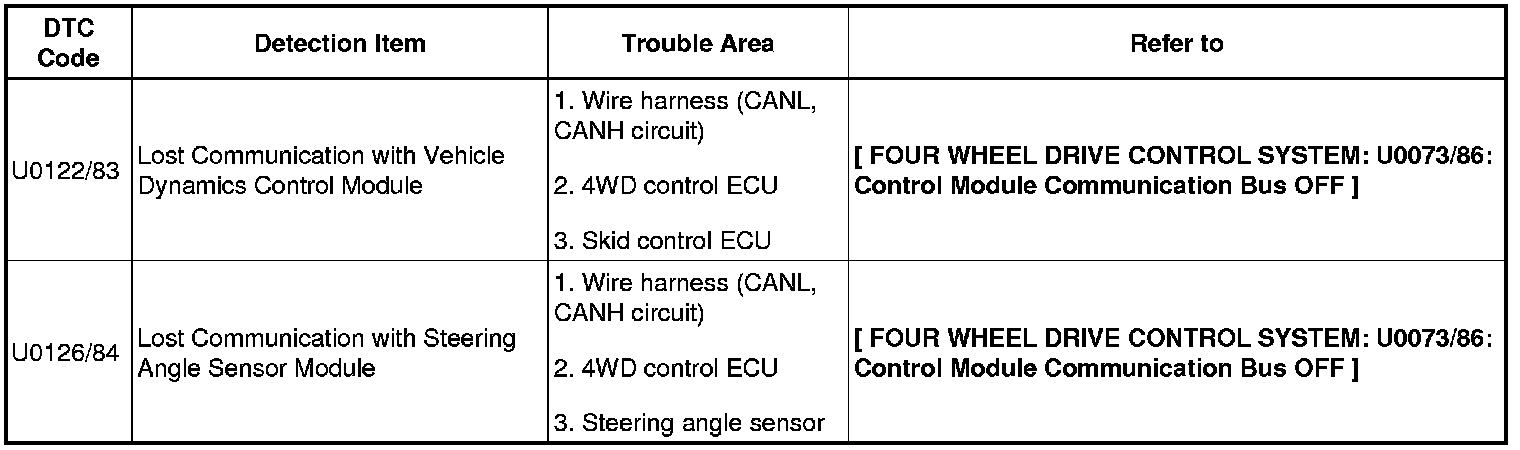

U0122/83 - U0126/84:
