Window Shade: Description and Operation

INTERIOR: REAR SUNSHADE SYSTEM

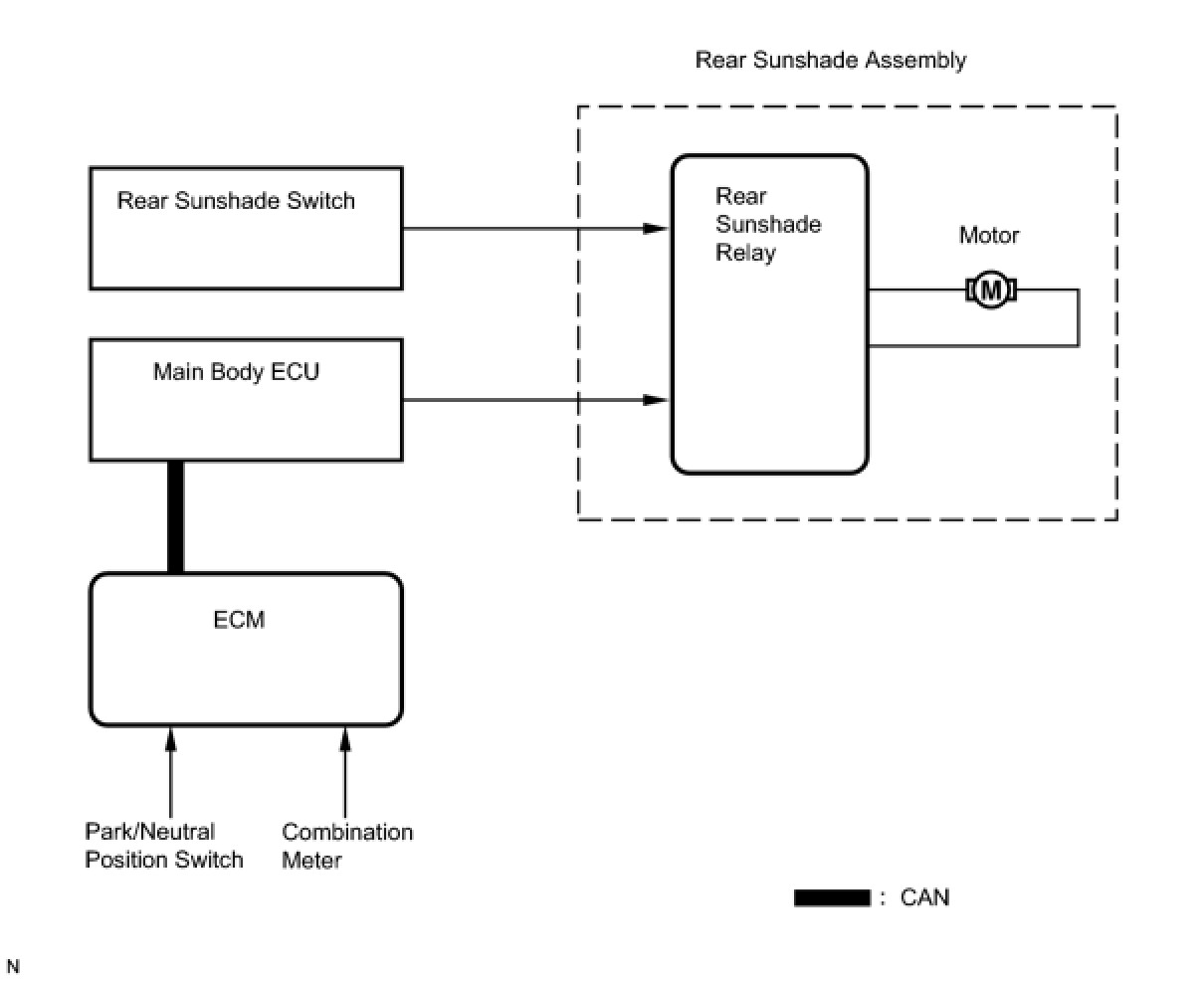

SYSTEM DIAGRAM

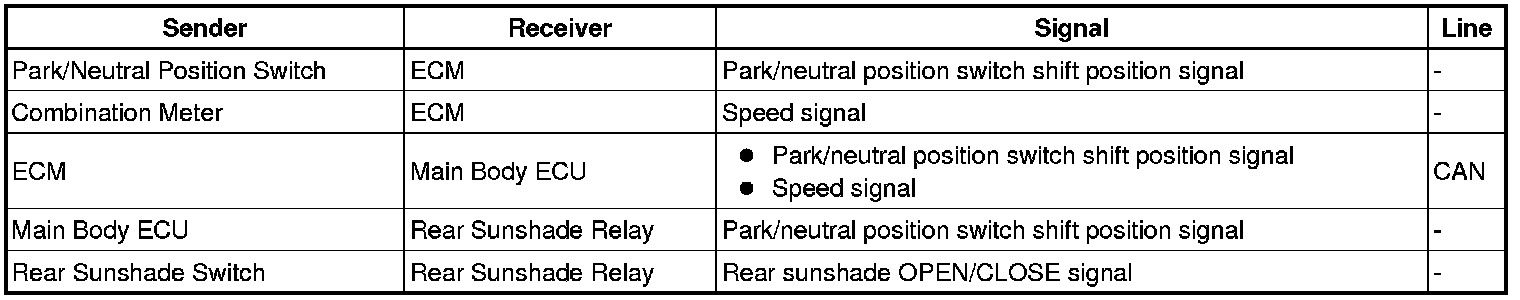

Communication table






SYSTEM DESCRIPTION

1. REAR SUNSHADE SYSTEM DESCRIPTION
(a) The rear sunshade is raised or lowered by operating the rear sunshade switch located in the lower instrument panel sub-assembly.
(b) When the shift lever in the R position, the park/neutral position switch sends a reverse-linked signal to the rear sunshade relay, and the rear sunshade lowers.
(c) When the shift lever is moved to the D or S position, or when the vehicle speed is 15 km/h (9.3 mph) or more, the rear sunshade is redeployed.
(d) Using Techstream, the reverse-linked sunshade lowering function's response time can be customized to one of the following (seconds): 0, 0.7, 0.9, 1.2.
