System Specifications
CRANKSHAFT PULLEYTorque: 250 Nm (2550 kgf-cm, 184 ft-lbf)
NO. 1 CHAIN TENSIONER ASSEMBLY
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
NO. 2 CHAIN TENSIONER ASSEMBLY
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
NO. 3 CHAIN TENSIONER ASSEMBLY
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
TIMING CHAIN COVER SUB-ASSEMBLY

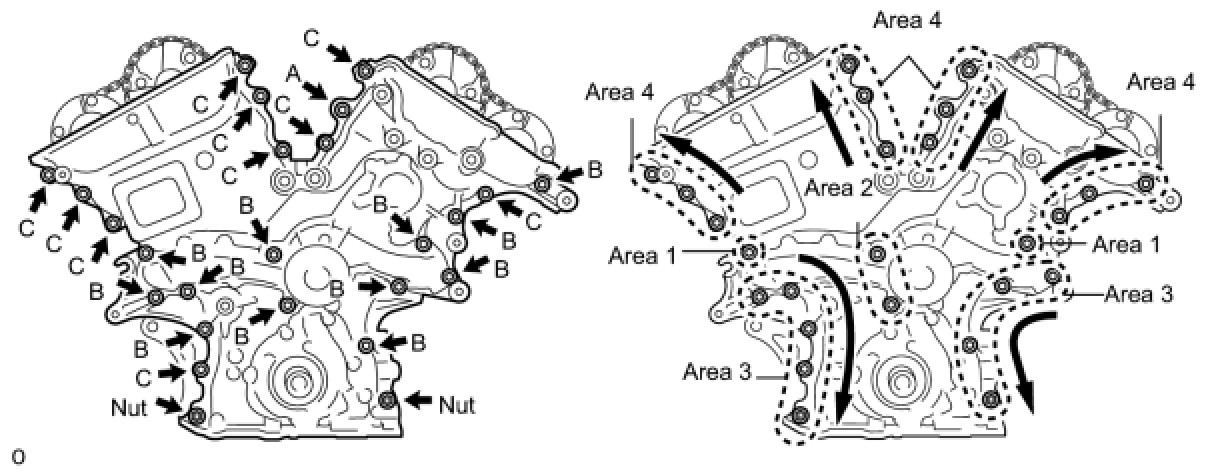

Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts

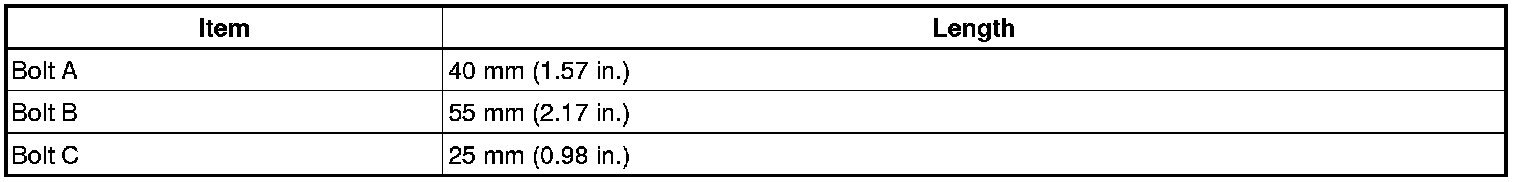

Bolt length:
Fully tighten the bolts in this order: Area 1 and Area 2
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts in Area 3
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts in Area 4
Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)for bolt A
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)for bolts except bolt A
Install a new gasket and the chain cover plate with the 4 bolts
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
HINT: Tighten the bolts in the order of lower to upper as shown in the illustration.
