Removal

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR:

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. PRECAUTION
CAUTION: Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE REAR SEAT CUSHION ASSEMBLY (w/ Rear Seat Side Airbag) Removal

4. REMOVE REAR SEATBACK ASSEMBLY (w/ Rear Seat Side Airbag) Removal

5. REMOVE REAR DOOR SCUFF PLATE (w/o Rear Seat Side Airbag) Removal

6. REMOVE REAR DOOR SCUFF PLATE (w/ Rear Seat Side Airbag) Removal

7. REMOVE REAR SEAT SIDE GARNISH (w/o Rear Seat Side Airbag) Removal

8. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY (w/ Rear Seat Side Airbag) Removal

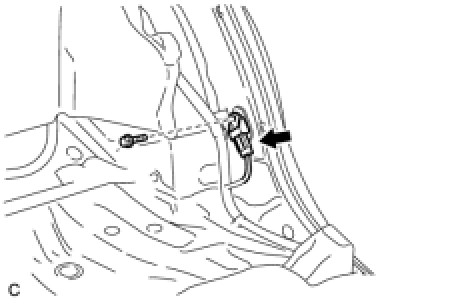

9. REMOVE REAR AIRBAG SENSOR






(a) Disconnect the connector.
(b) Remove the bolt and rear airbag sensor.
