Hazard Warning Switch: Testing and Inspection

LIGHTING: HAZARD WARNING SWITCH:

INSPECTION

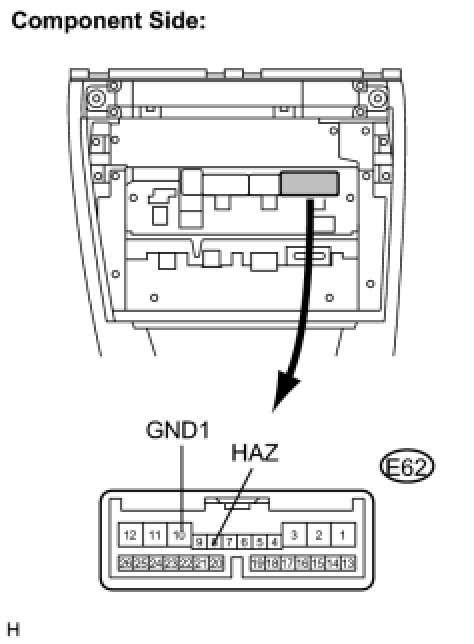

1. INSPECT AIR CONDITION PANEL SUB-ASSEMBLY (w/o Navigation System)

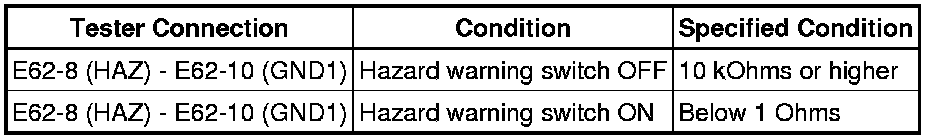

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the air condition panel sub-assembly.
2. INSPECT MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)

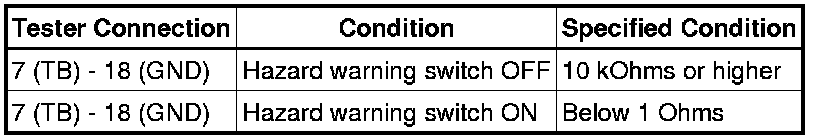

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the multi-display with radio receiver assembly.
