Installation

AUDIO / VISUAL: STEERING PAD SWITCH:

INSTALLATION

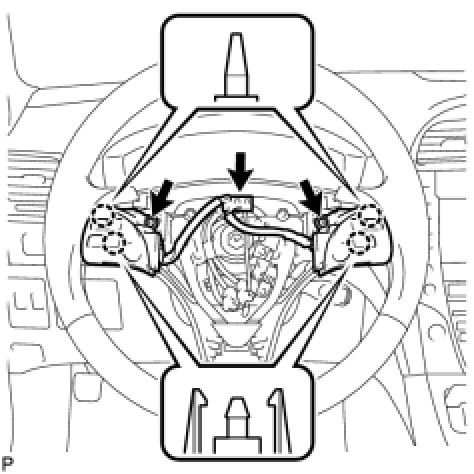

1. INSTALL STEERING PAD SWITCH ASSEMBLY






(a) Engage the 4 claws.
(b) Install the steering pad switch assembly with the 2 screws.
Torque: 2.4 Nm (25 kgf-cm, 21 in-lbf)
(c) Connect the connector to the spiral cable.
2. INSTALL STEERING PAD Installation

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization.

7. INSPECT SRS WARNING LIGHT Diagnosis System
