Removal

THEFT DETERRENT: ENGINE HOOD COURTESY SWITCH:

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) Removal

4. REMOVE HOOD LOCK ASSEMBLY

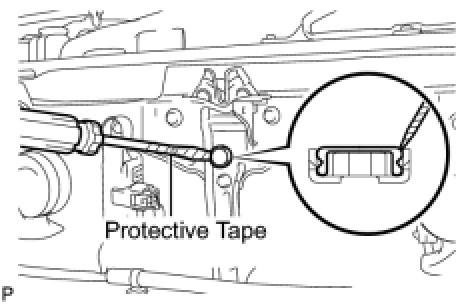

(a) Using a screwdriver, remove the hood lock nut cap as shown in the illustration.
HINT: Tape the screwdriver tip before use.





(b) Remove the 2 bolts and nut.






(c) Disconnect the hood lock control cable and connector.
(d) Remove the hood lock assembly.
