Installation

2GR-FE INTAKE: VACUUM SWITCHING VALVE:

INSTALLATION

1. INSTALL VACUUM SWITCHING VALVE

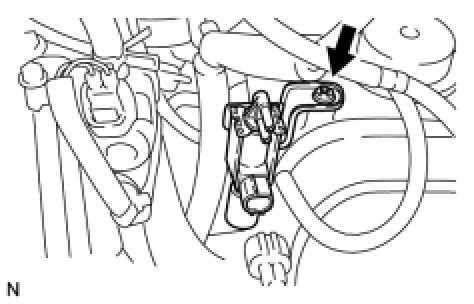

(a) Install the vacuum switching valve with the screw.

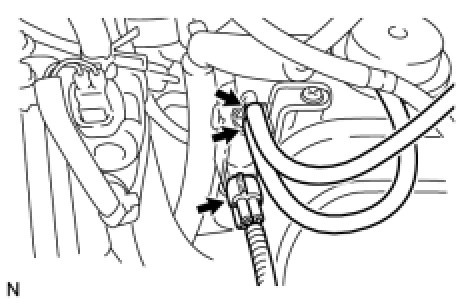

(b) Install the 2 vacuum hoses and vacuum switching valve connector.
2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
