Reassembly

2GR-FE FUEL: FUEL PUMP:

REASSEMBLY

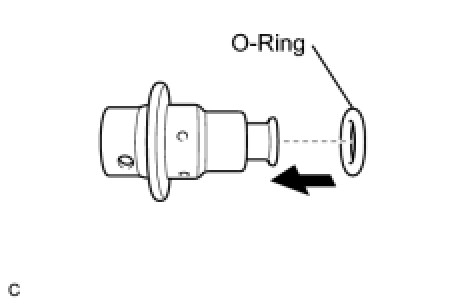

1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY






(a) Apply a light coat of spindle oil or gasoline to a new O-ring, and install it to the fuel pressure regulator.

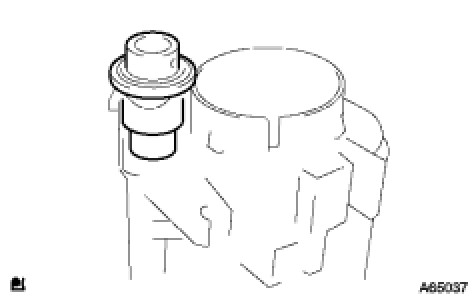

(b) Push in the fuel pressure regulator to the fuel filter.

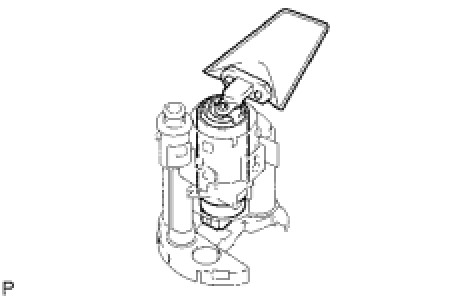

2. INSTALL FUEL PUMP






(a) Apply a light coat of gasoline or grease to the O-ring of the fuel pump.
(b) Push in the fuel pump to the fuel filter.

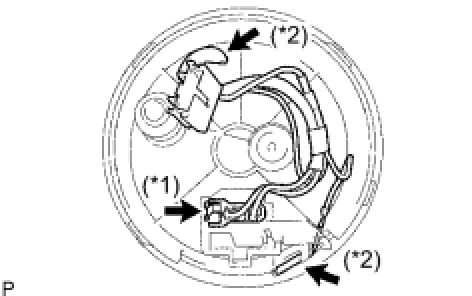

3. INSTALL FUEL PUMP HARNESS






(a) Connect the connector (*1).
(b) Install the fuel pump harness (*2).

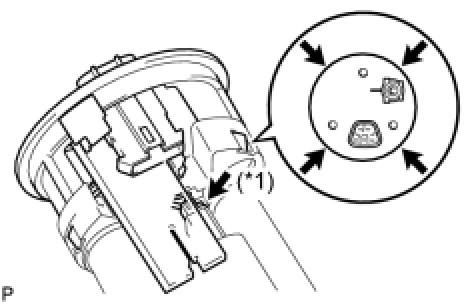

4. INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY






(a) Connect the fuel pump connector (*1).
(b) Install the fuel suction plate.

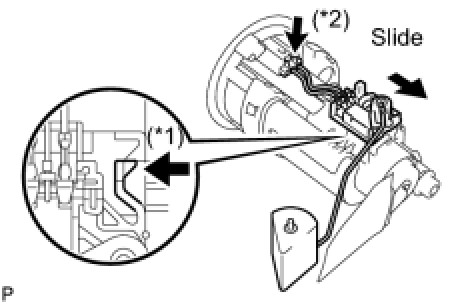

5. INSTALL FUEL SENDER GAUGE ASSEMBLY






(a) Slide the fuel sender gauge to engage with the claw (*1).
(b) Connect the fuel sender gauge connector (*2).

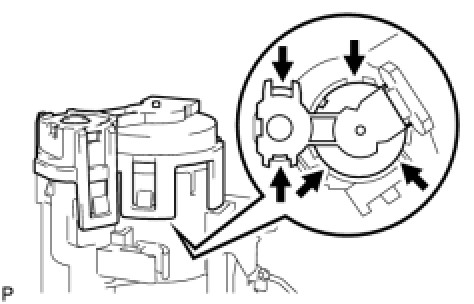

6. INSTALL FUEL PUMP CUSHION RUBBER






(a) Install the fuel pump cushion rubber to the fuel pump.

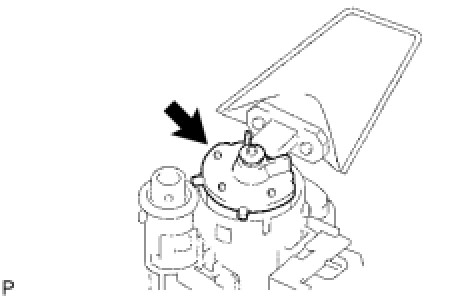

7. INSTALL NO. 2 FUEL SUCTION SUPPORT






(a) Install the No. 2 fuel suction support.
