2GR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR:

REMOVAL

1. REMOVE ENGINE UNDER COVER LH
2. REMOVE ENGINE UNDER COVER RH
3. REMOVE EXHAUST PIPE NO. 1 SUPPORT BRACKET Removal

4. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

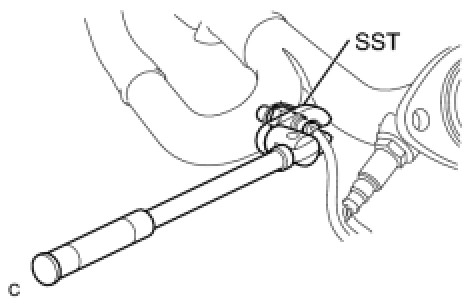

5. REMOVE HEATED OXYGEN SENSOR (for Bank 1)






(a) Using SST, remove the oxygen sensor.
SST: 09224-00010

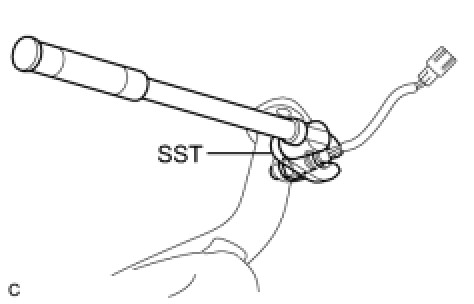

6. REMOVE HEATED OXYGEN SENSOR (for Bank 2)






(a) Using SST, remove the oxygen sensor.
SST: 09224-00010
