Engine Room Main Wire

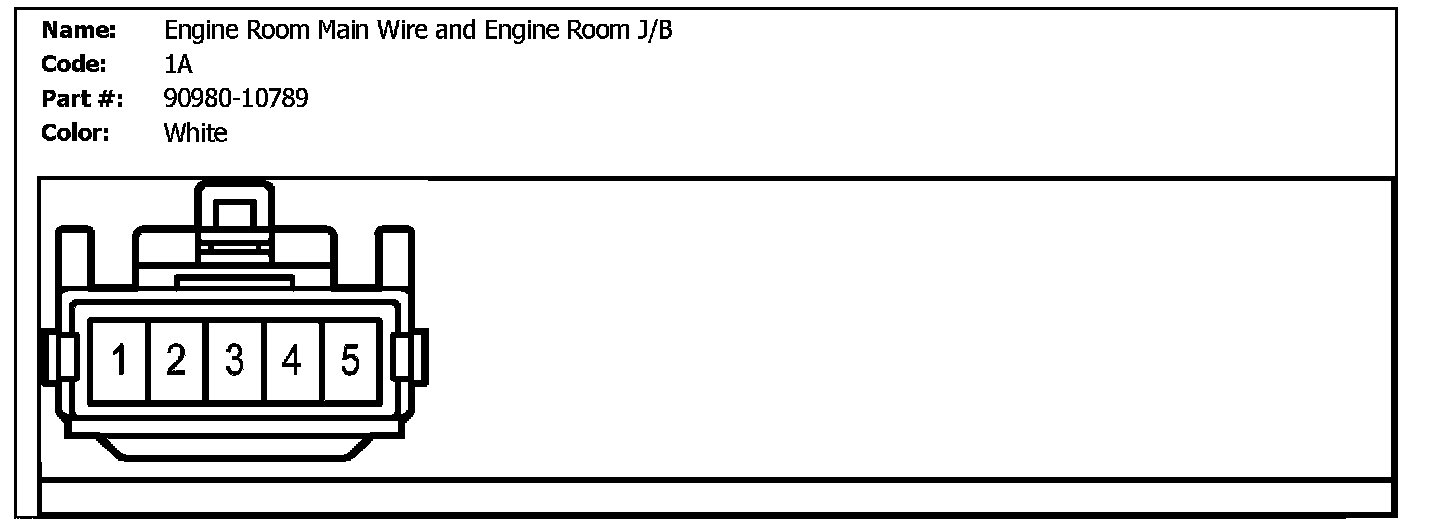

1A (Engine Room Main Wire And Engine Room J/B):

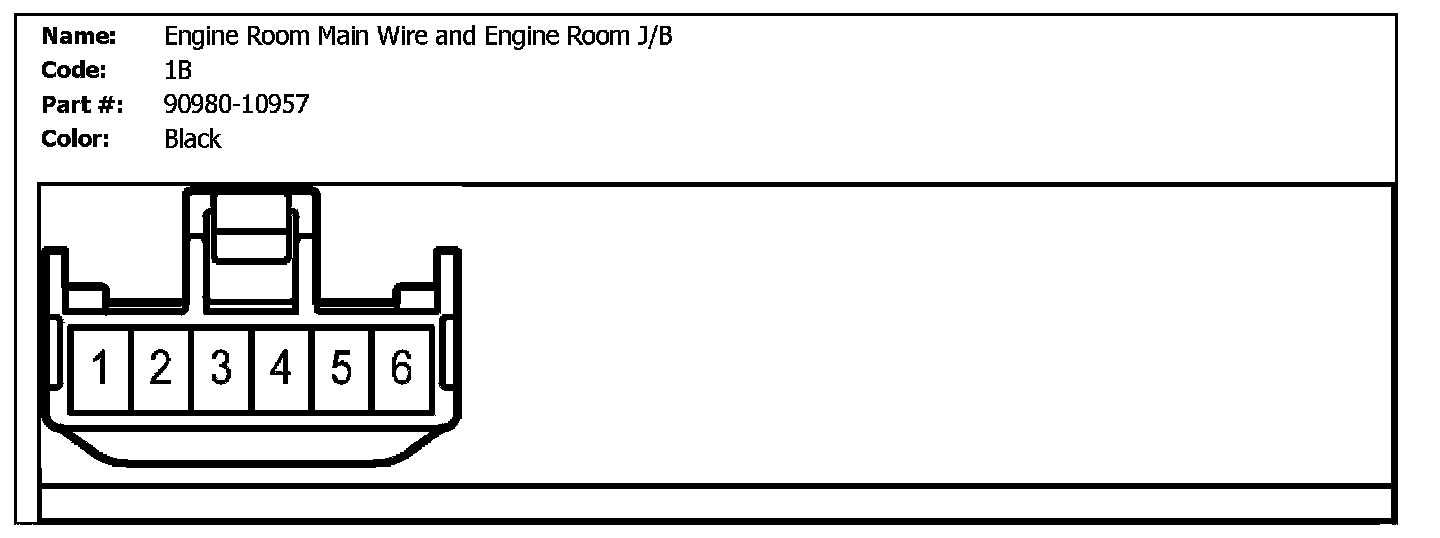

1B (Engine Room Main Wire And Engine Room J/B):

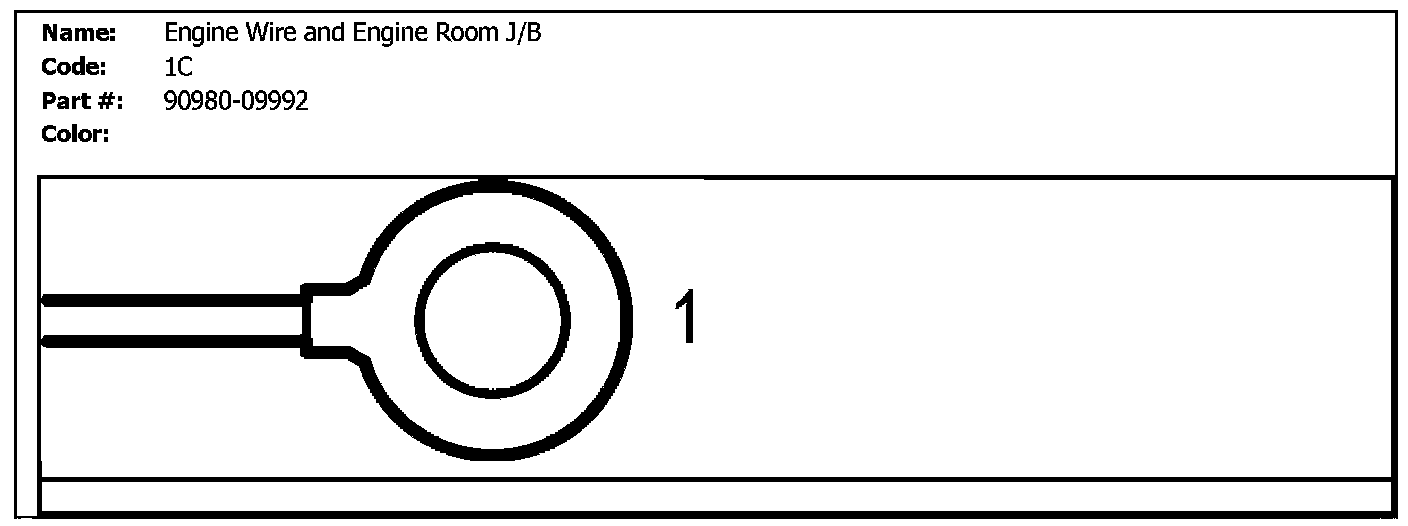

1C (Engine Wire And Engine Room J/B):

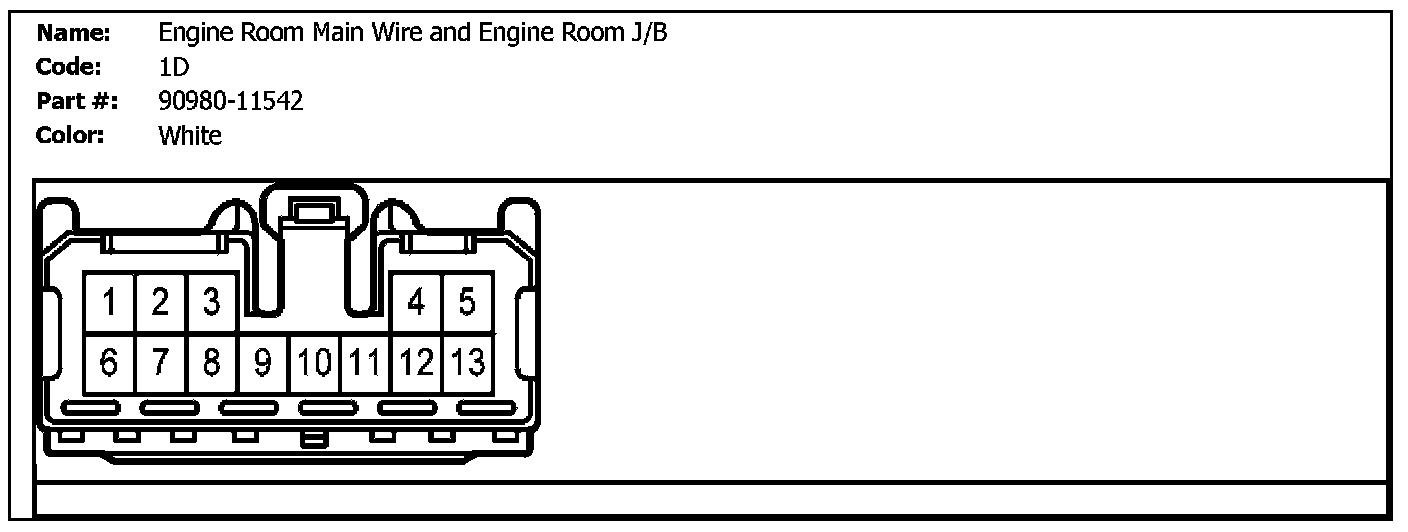

1D (Engine Room Main Wire And Engine Room J/B):

1E (Engine Room Main Wire And Engine Room J/B):

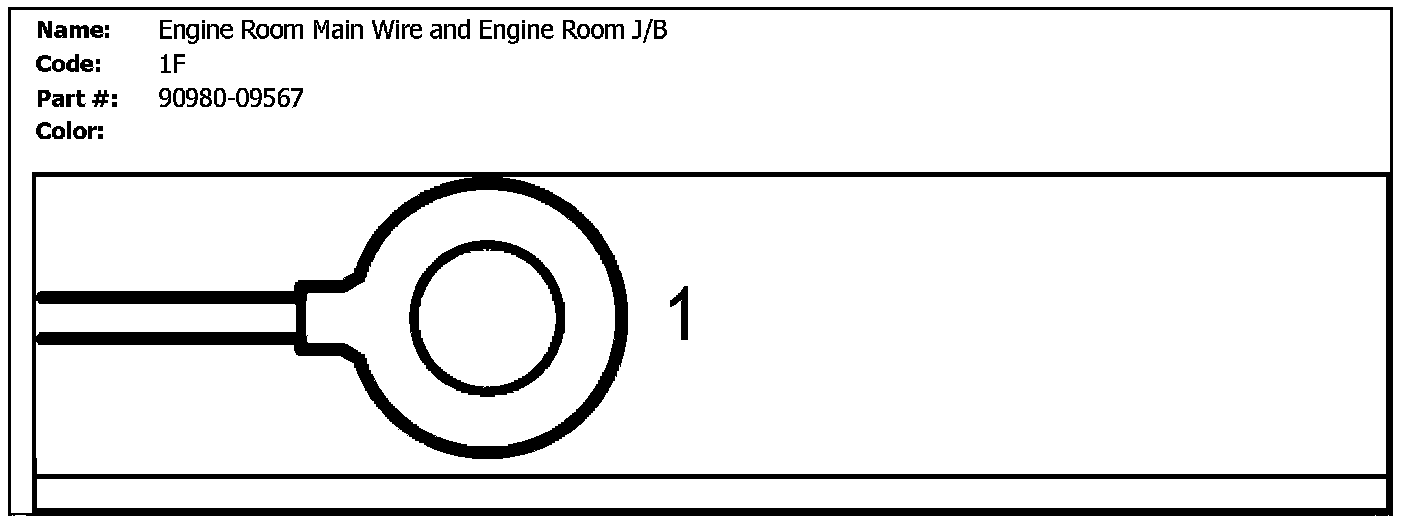

1F (Engine Room Main Wire And Engine Room J/B):

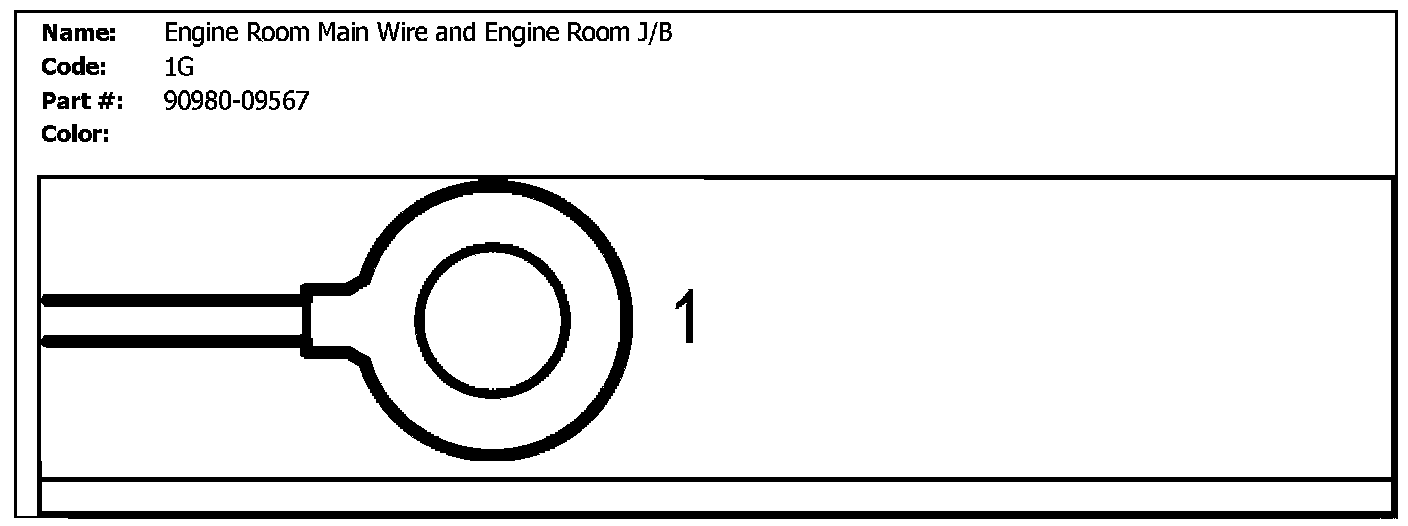

1G (Engine Room Main Wire And Engine Room J/B):

AA1 (Engine Room Main Wire And Engine Room Main Wire (Cowl Side Right):

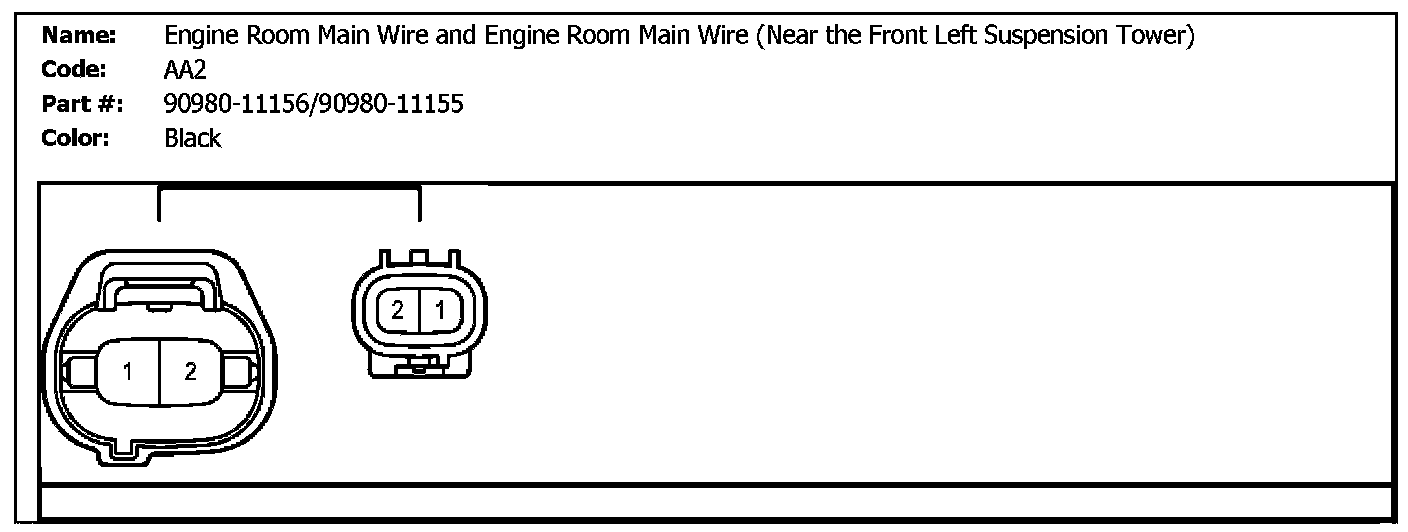

AA2 (Engine Room Main Wire And Engine Room Main Wire (Near The Front Left Suspension Tower)):

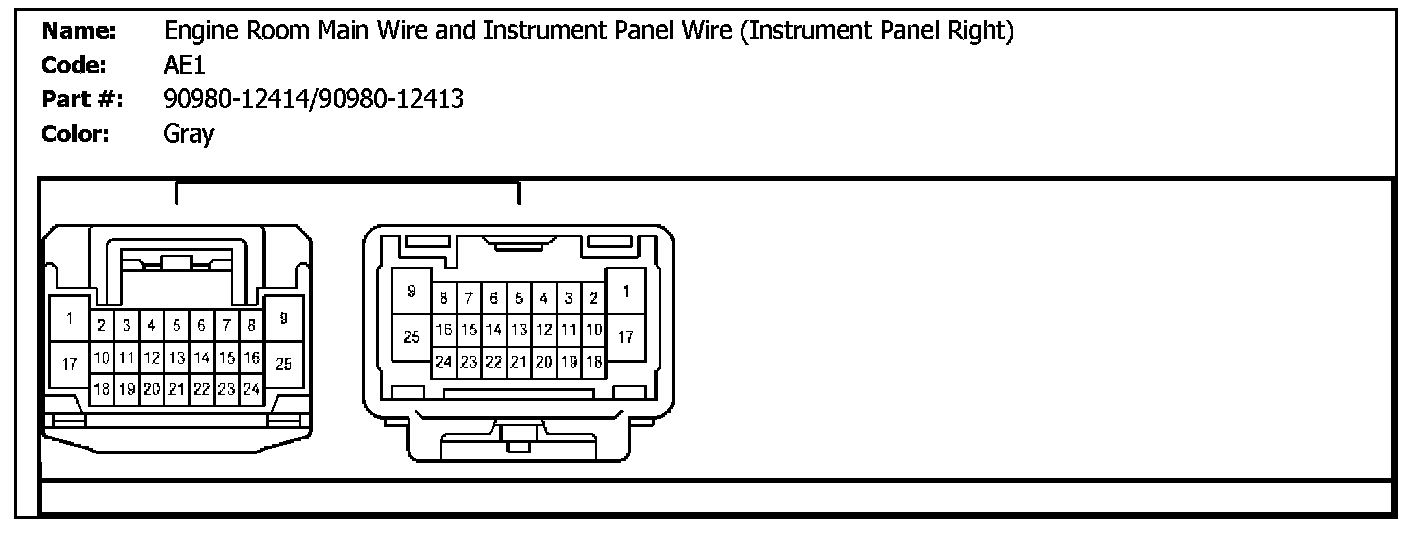

AE1 (Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Right)):

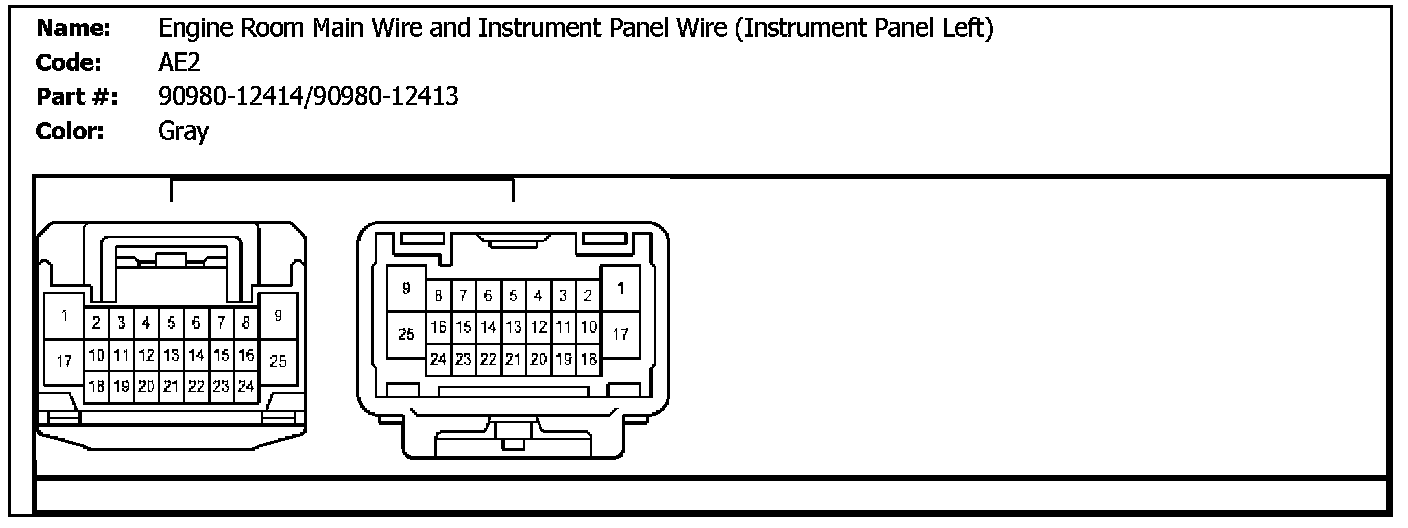

AE2 (Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Left)):

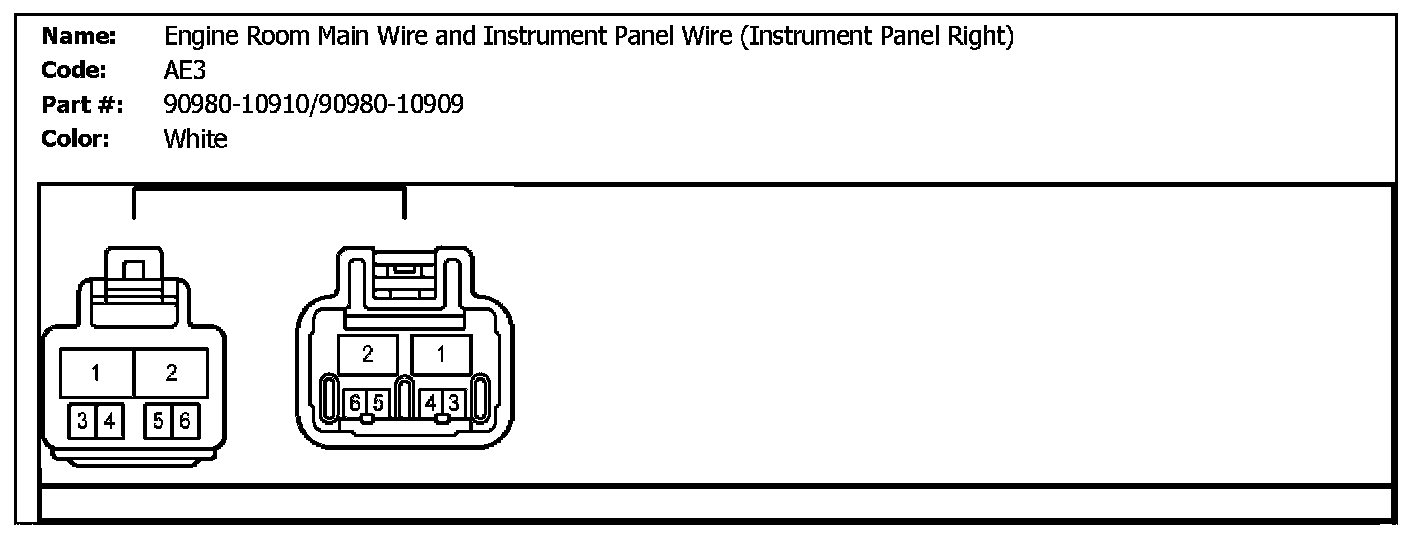

AE3 (Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Right)):

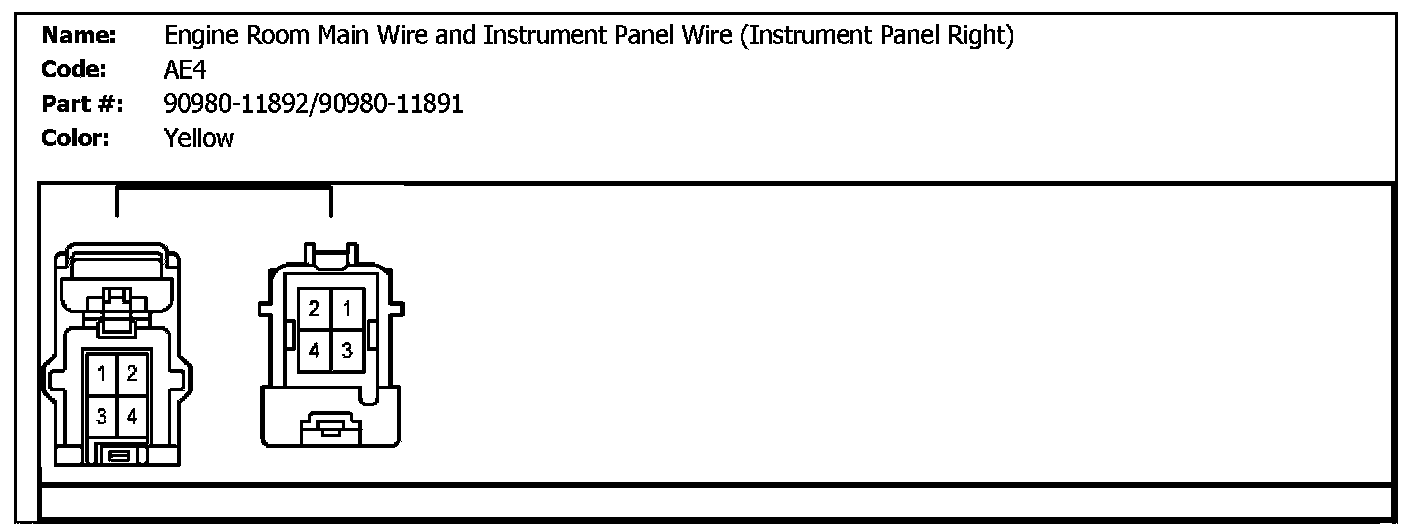

AE4 (Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Right):

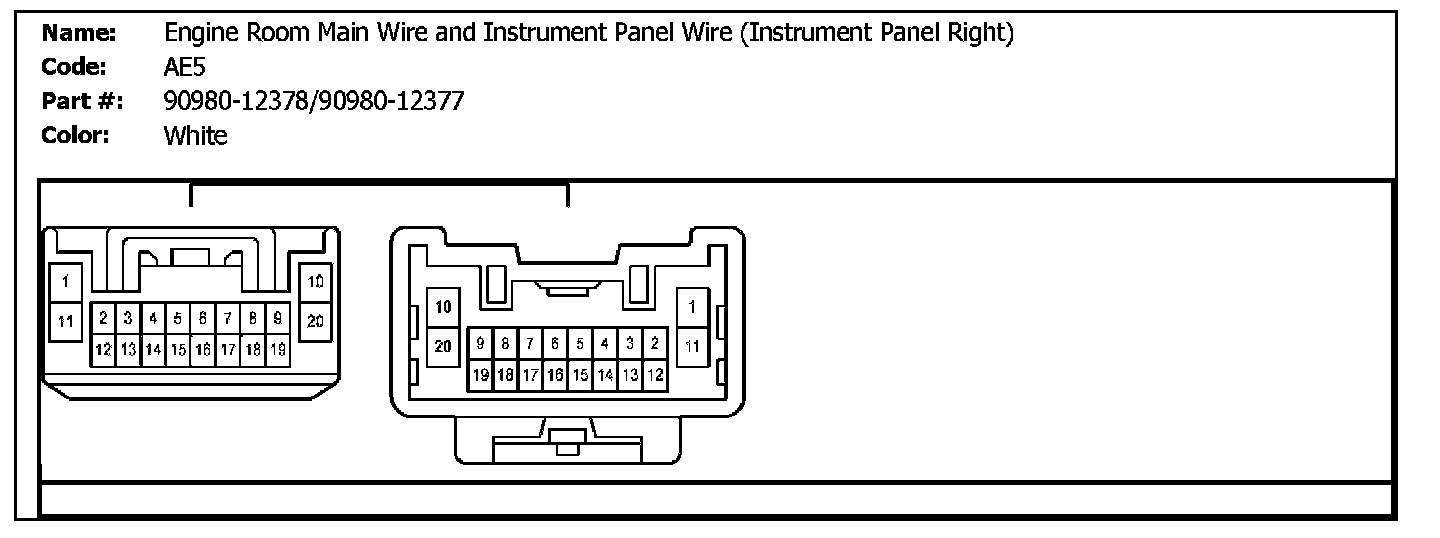

AE5 (Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Right)):

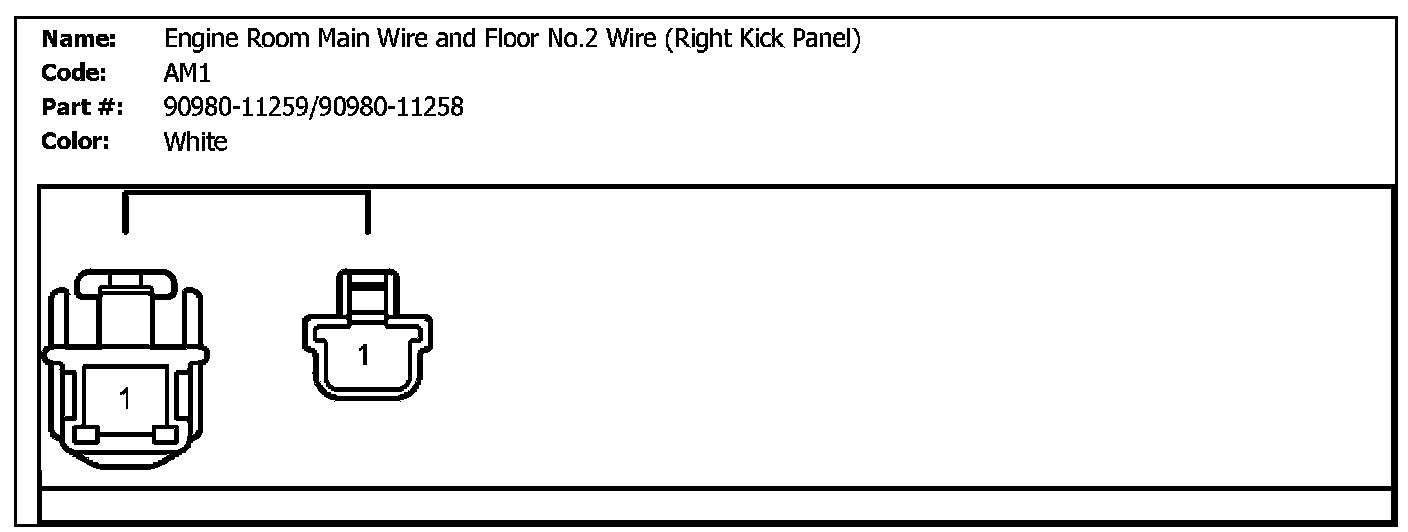

AM1 (Engine Room Main Wire And Floor No.2 Wire (Right Kick Panel)):

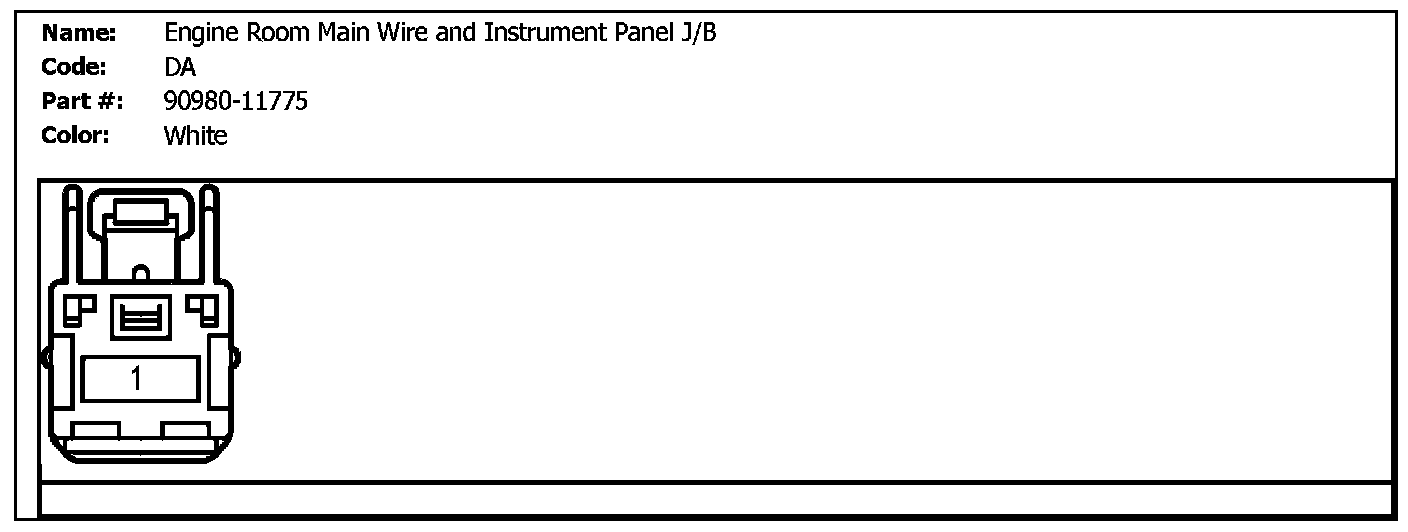

DA (Engine Room Main Wire And Instrument Panel J/B):

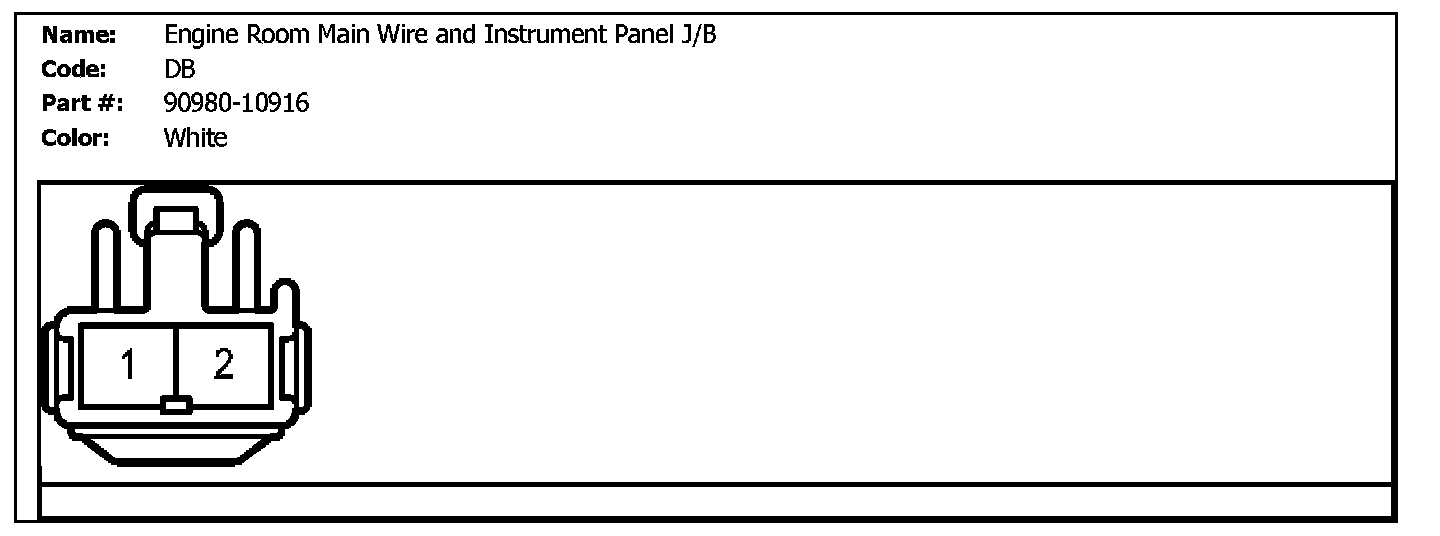

DB (Engine Room Main Wire And Instrument Panel J/B):

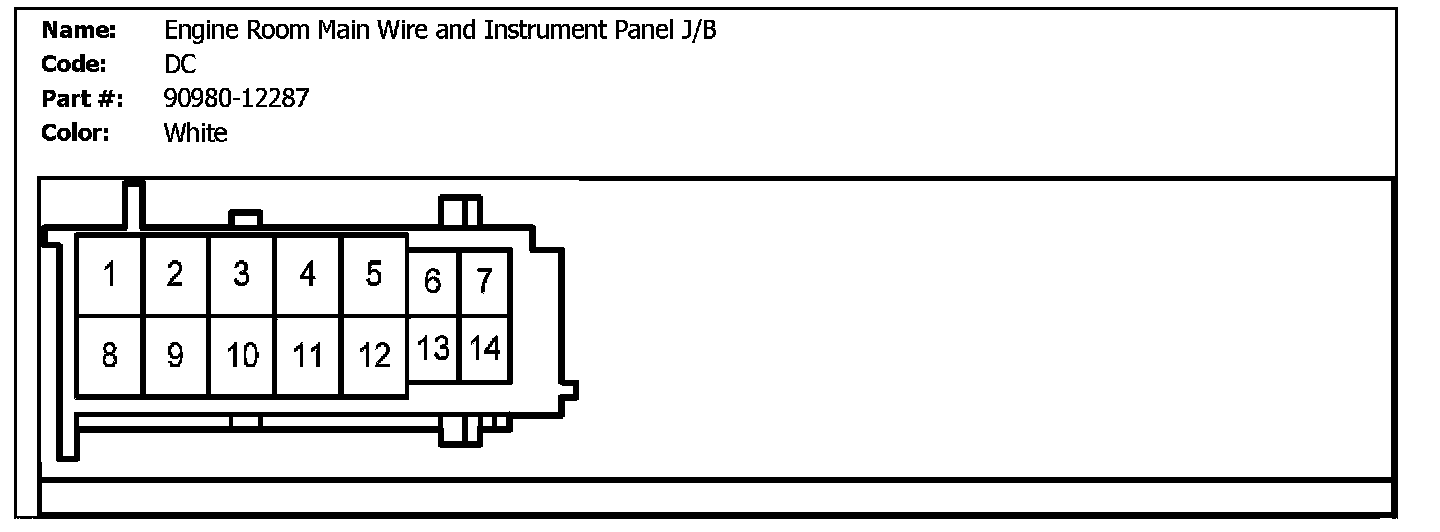

DC (Engine Room Main Wire And Instrument Panel J/B):

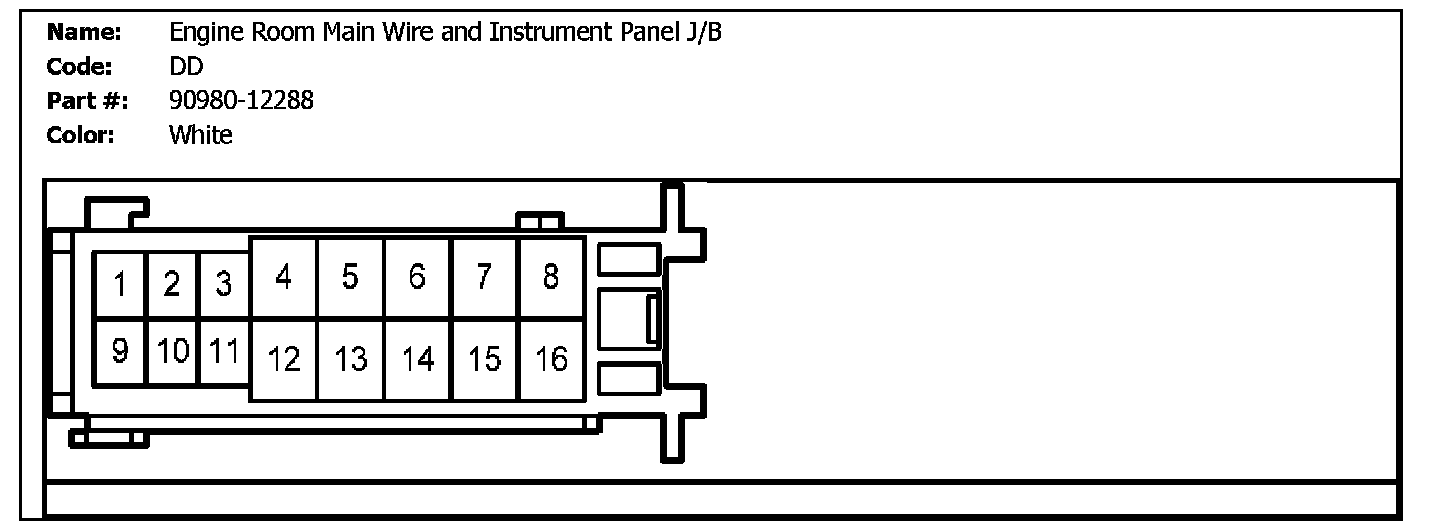

DD (Engine Room Main Wire And Instrument Panel J/B):
