FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2008
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Turn Signal Lamp
>>
Diagrams
Turn Signal Lamp: Diagrams

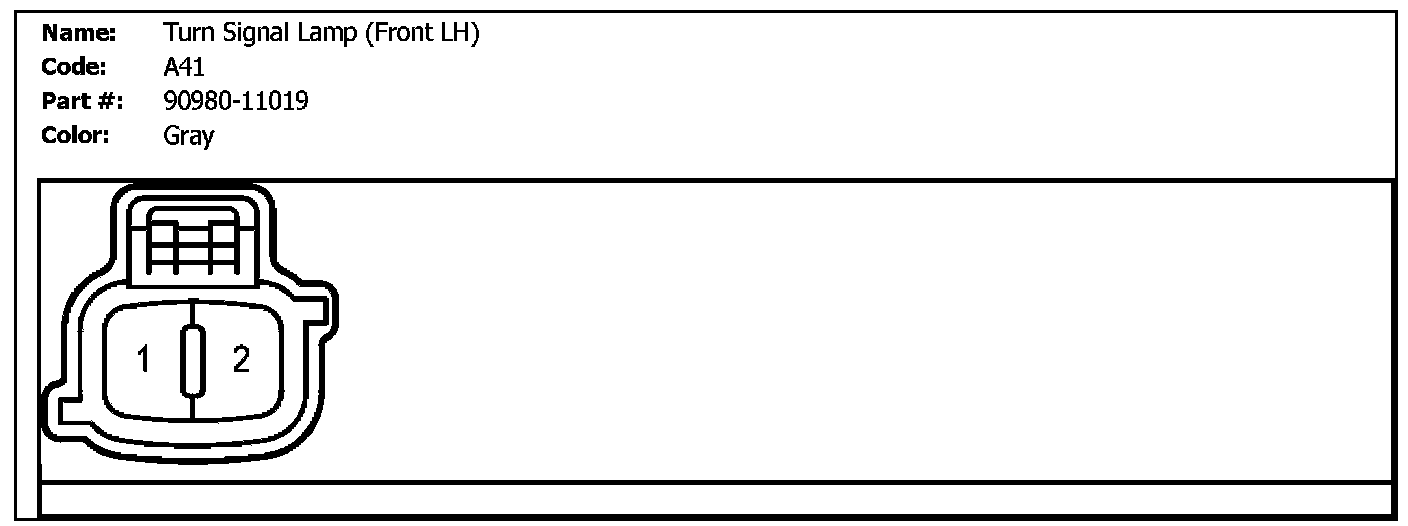

A41 (Turn Signal Lamp (Front LH)):

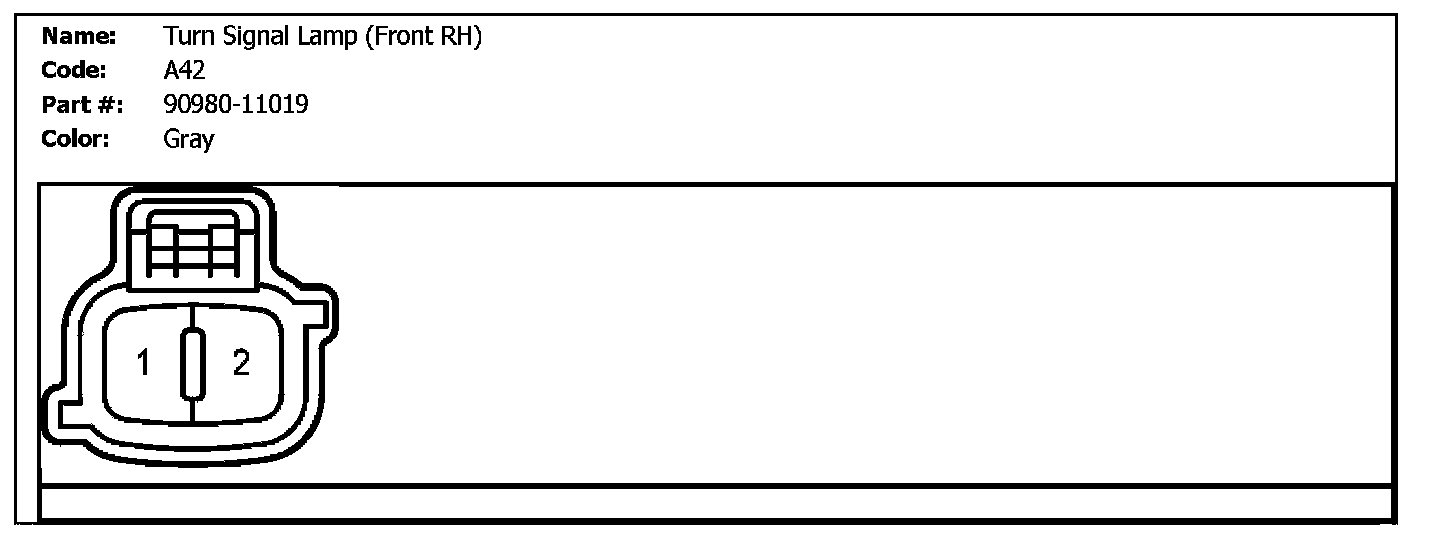

A42 (Turn Signal Lamp (Front RH)):

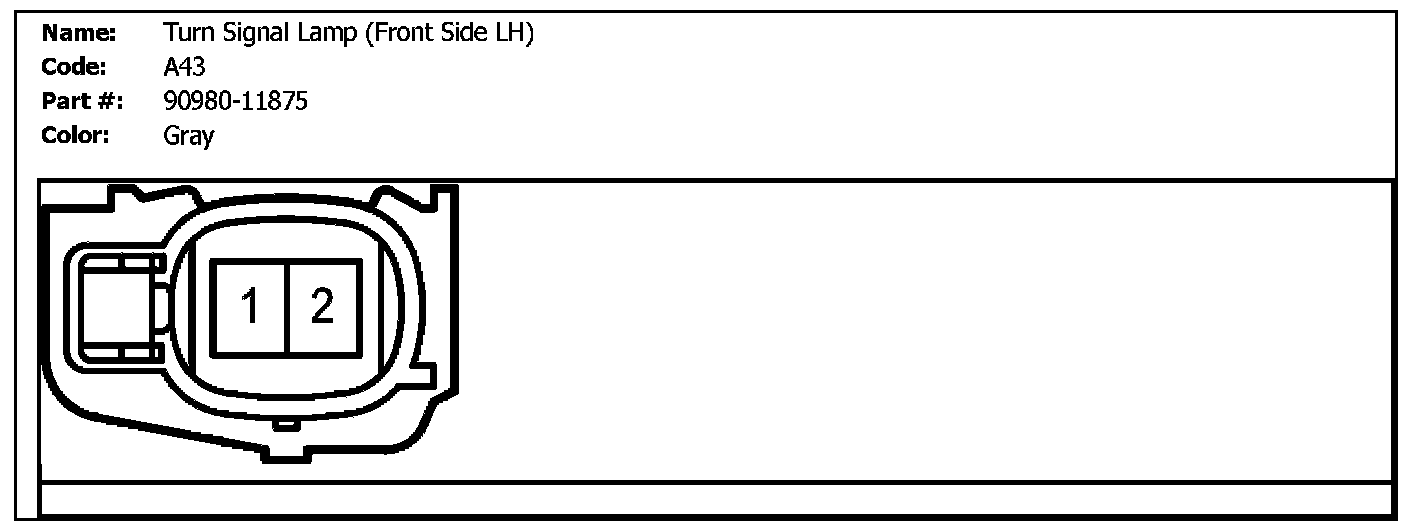

A43 (Turn Signal Lamp (Front Side LH):

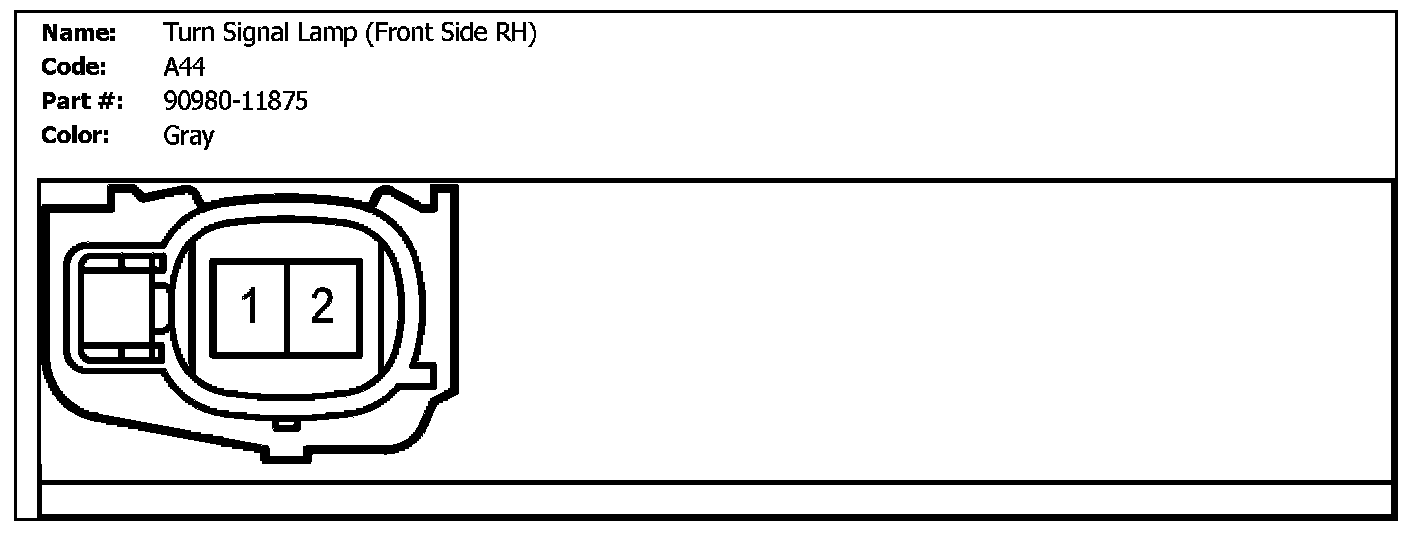

A44 (Turn Signal Lamp (Front Side RH)):
