Trunk Lamp: Testing and Inspection

LIGHTING: LUGGAGE COMPARTMENT ROOM LIGHT:

INSPECTION

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

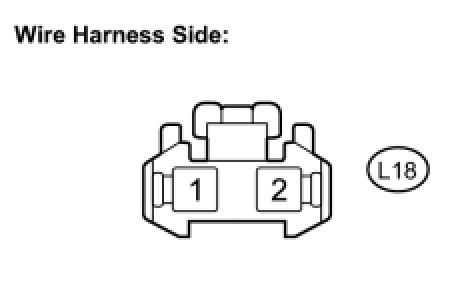

(a) Disconnect the L18 No. 1 luggage compartment light assembly connector.

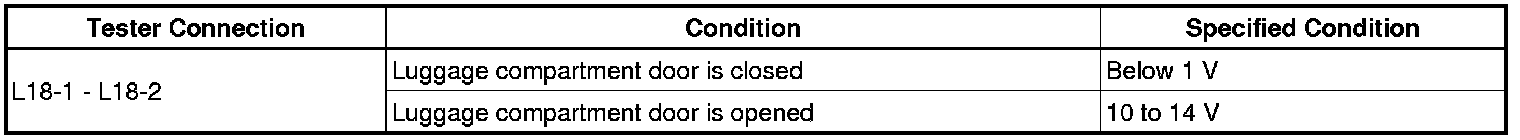

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not specified, there is a malfunction on the wire harness side.

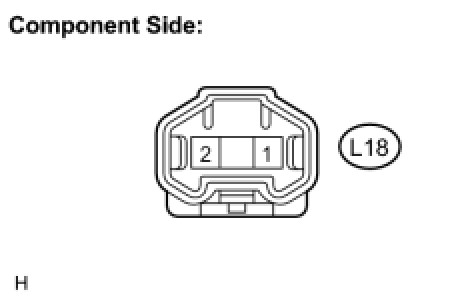

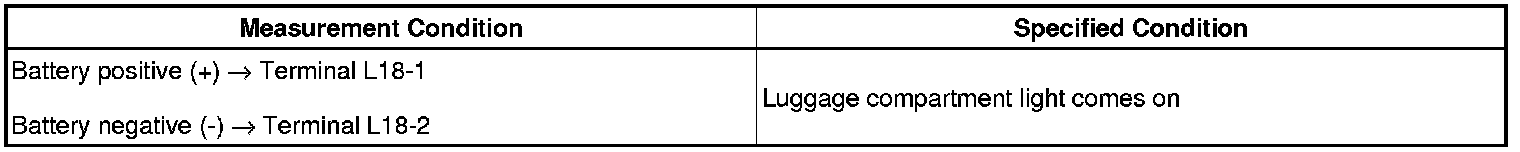

(c) Apply battery voltage to the No. 1 luggage compartment light assembly connector.
(d) Check that the No. 1 luggage compartment light comes on.
OK:





If the result is not as specified, replace the bulb or No. 1 luggage compartment light assembly.
