Component Tests and General Diagnostics

LIGHTING: GLOVE BOX LIGHT:

INSPECTION

1. INSPECT GLOVE BOX LIGHT ASSEMBLY

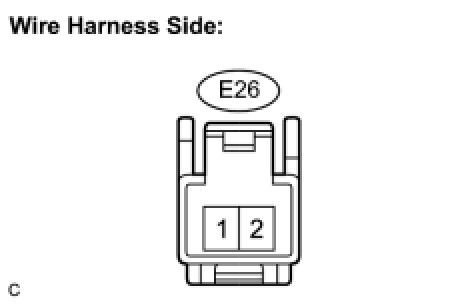

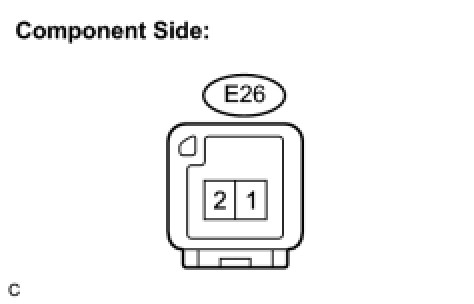

(a) Disconnect the E26 glove box light assembly connector.

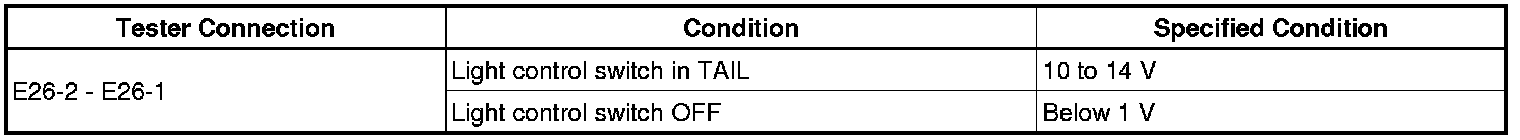

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not as specified, there is a malfunction on the wire harness side.

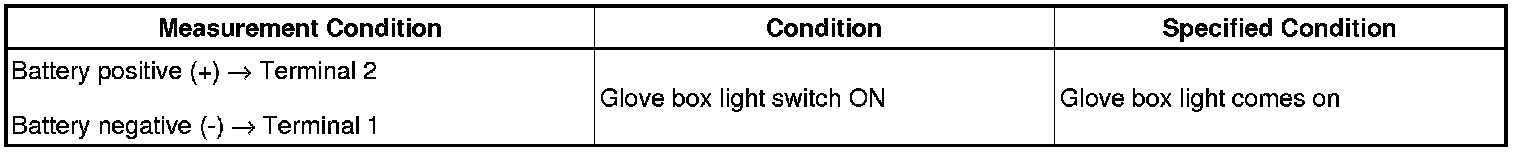

(c) Apply battery voltage to the glove box light assembly connector.
(d) Check that the glove box light comes on.
OK:





If the result is not as specified, replace the glove box light assembly.
