Reassembly

AIR CONDITIONING: BLOWER UNIT:

REASSEMBLY

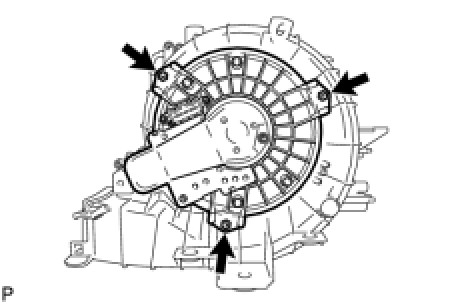

1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY






(a) Install the blower with fan motor sub-assembly with the 3 screws.

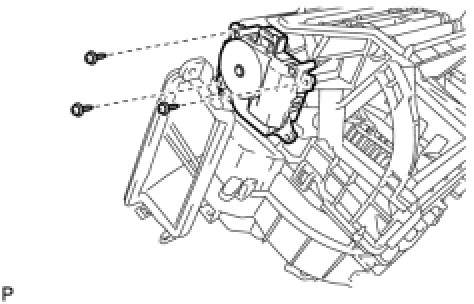

2. INSTALL AIR INLET SERVO MOTOR






(a) Install the air inlet servo motor with the 3 screws.

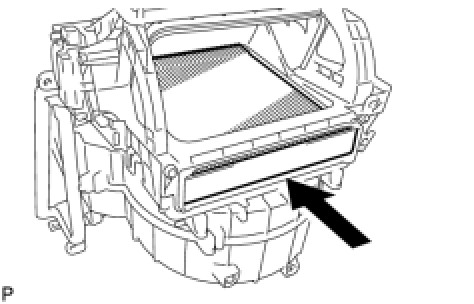

3. INSTALL CLEAN AIR FILTER






(a) Install the clean air filter as shown in the illustration.
4. INSTALL AIR FILTER COVER PLATE






(a) Engage the 2 claws to install the air filter cover plate.

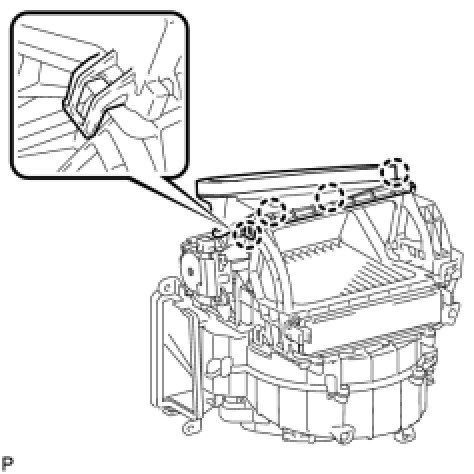

5. INSTALL AIR DUCT SUB-ASSEMBLY






(a) Engage the 4 claws to install the air duct sub-assembly.
