Home >> Lexus >> 2008 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Removal and Replacement >> Components

Components








2GR-FE ENGINE MECHANICAL: ENGINE ASSEMBLY:

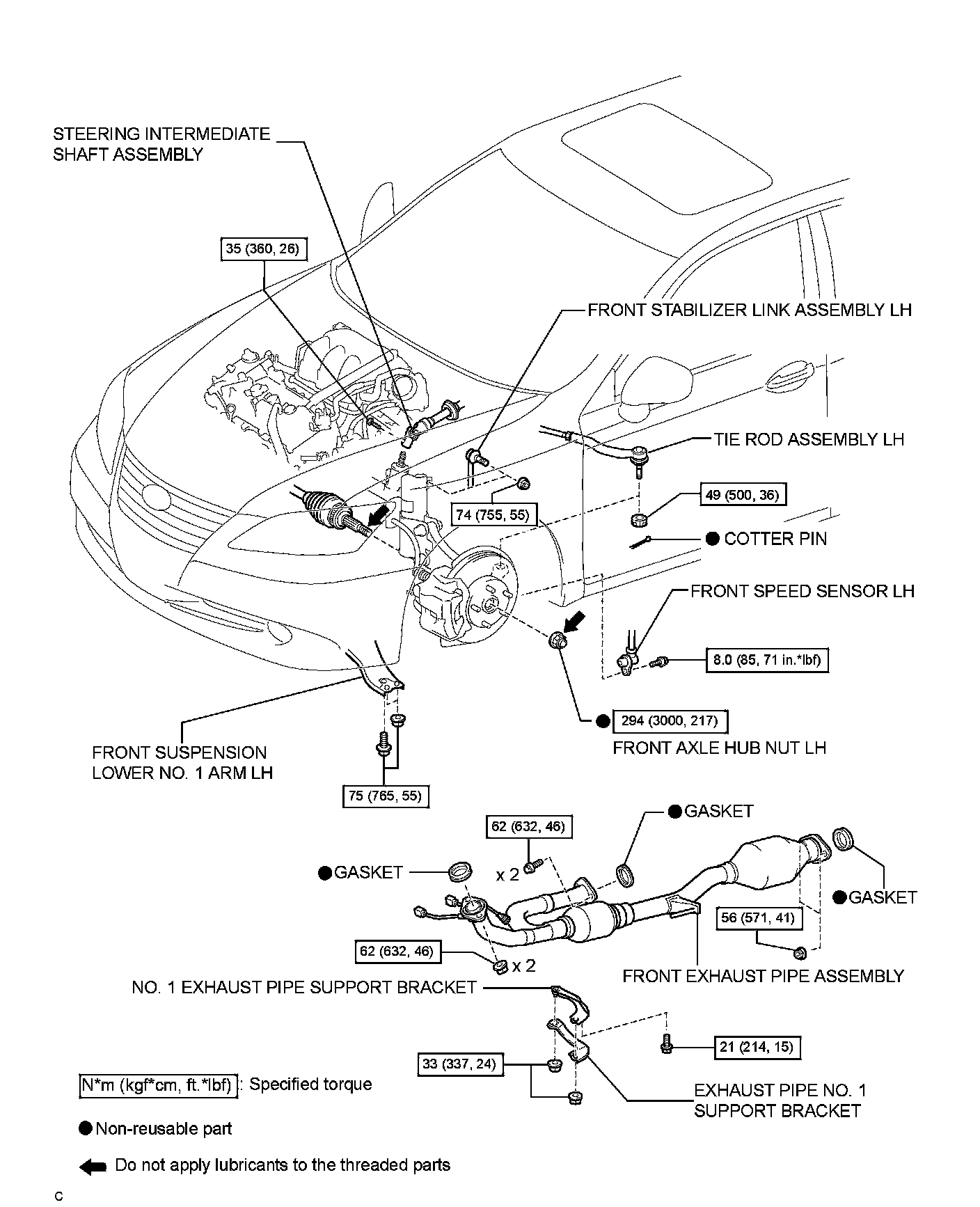

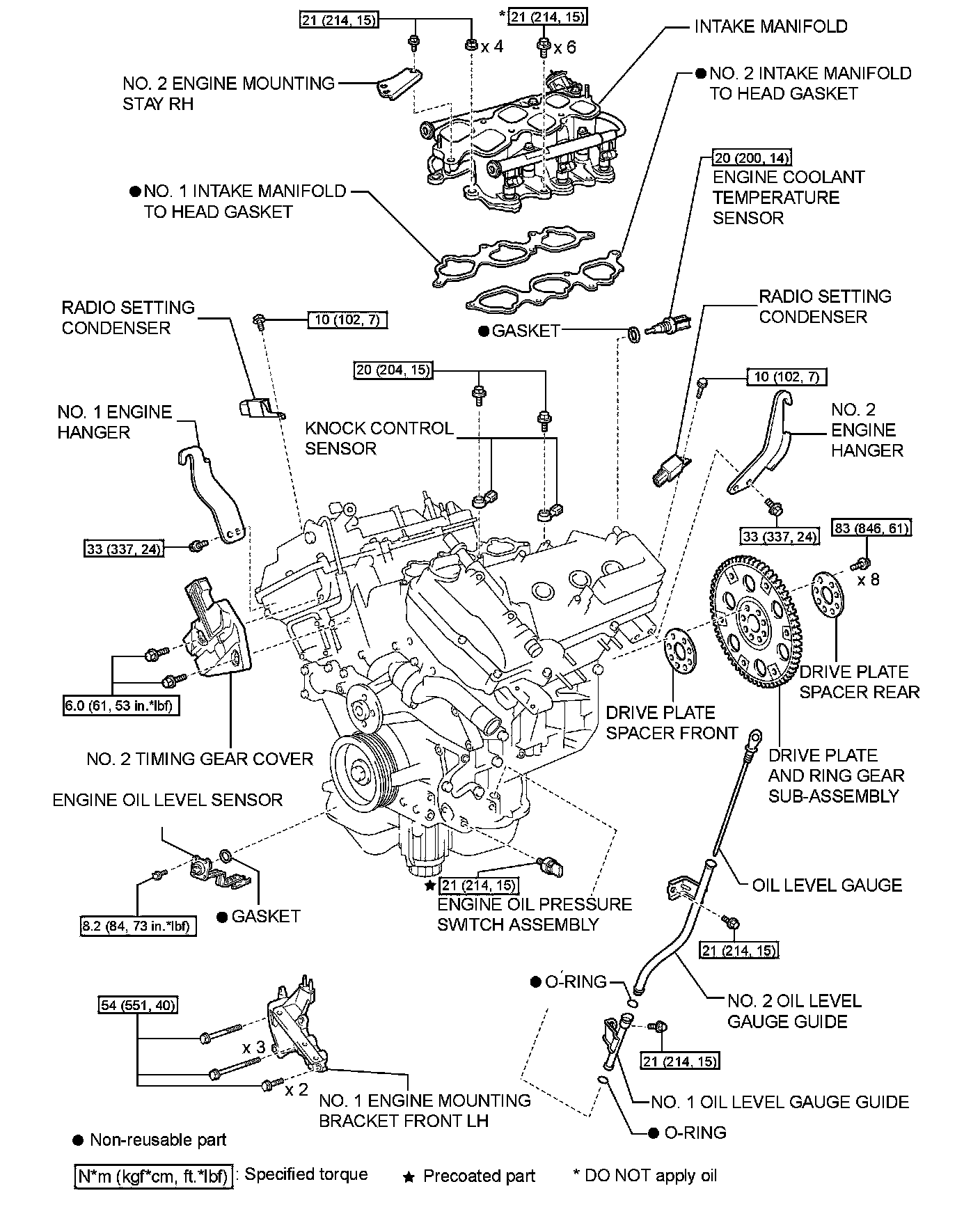

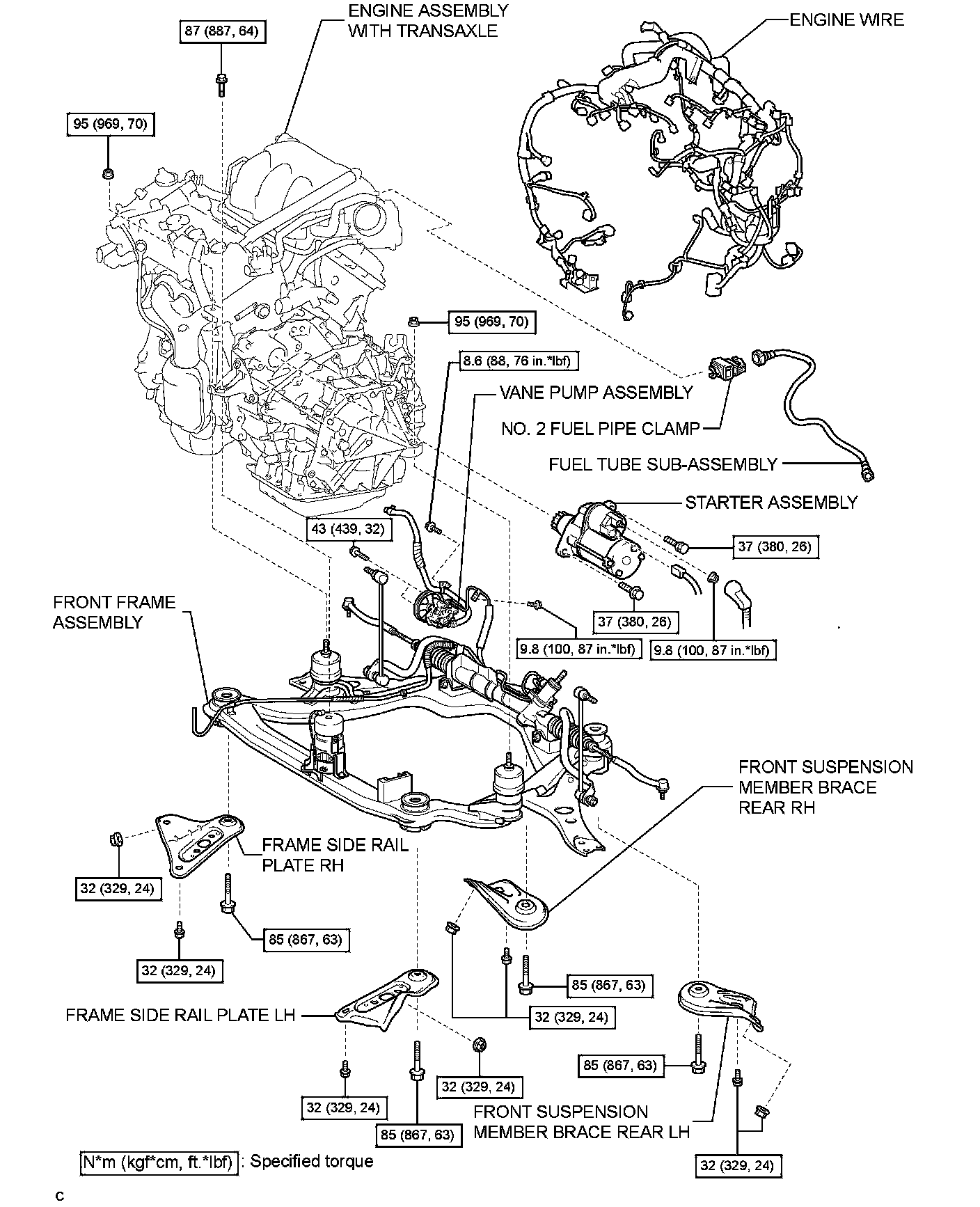

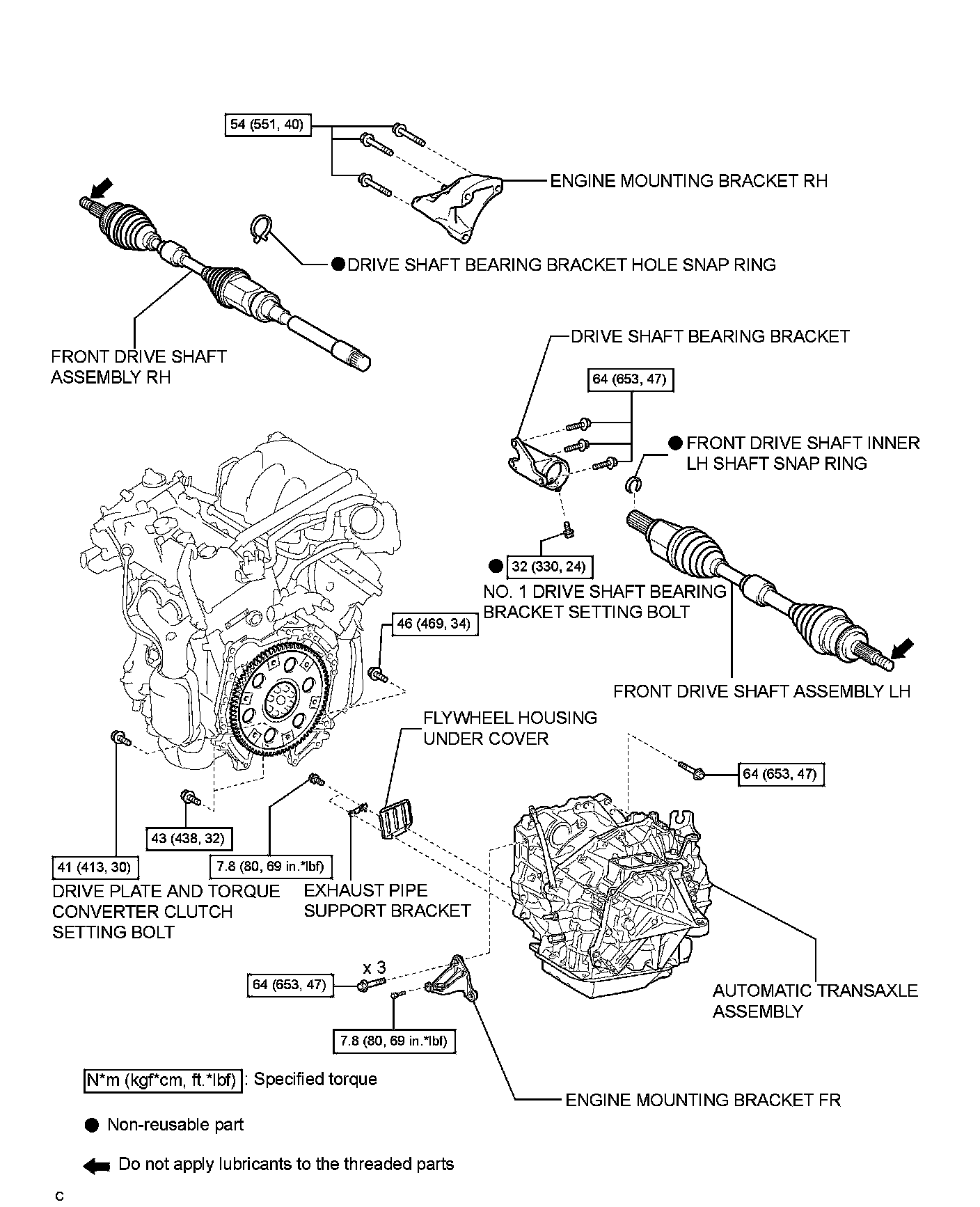

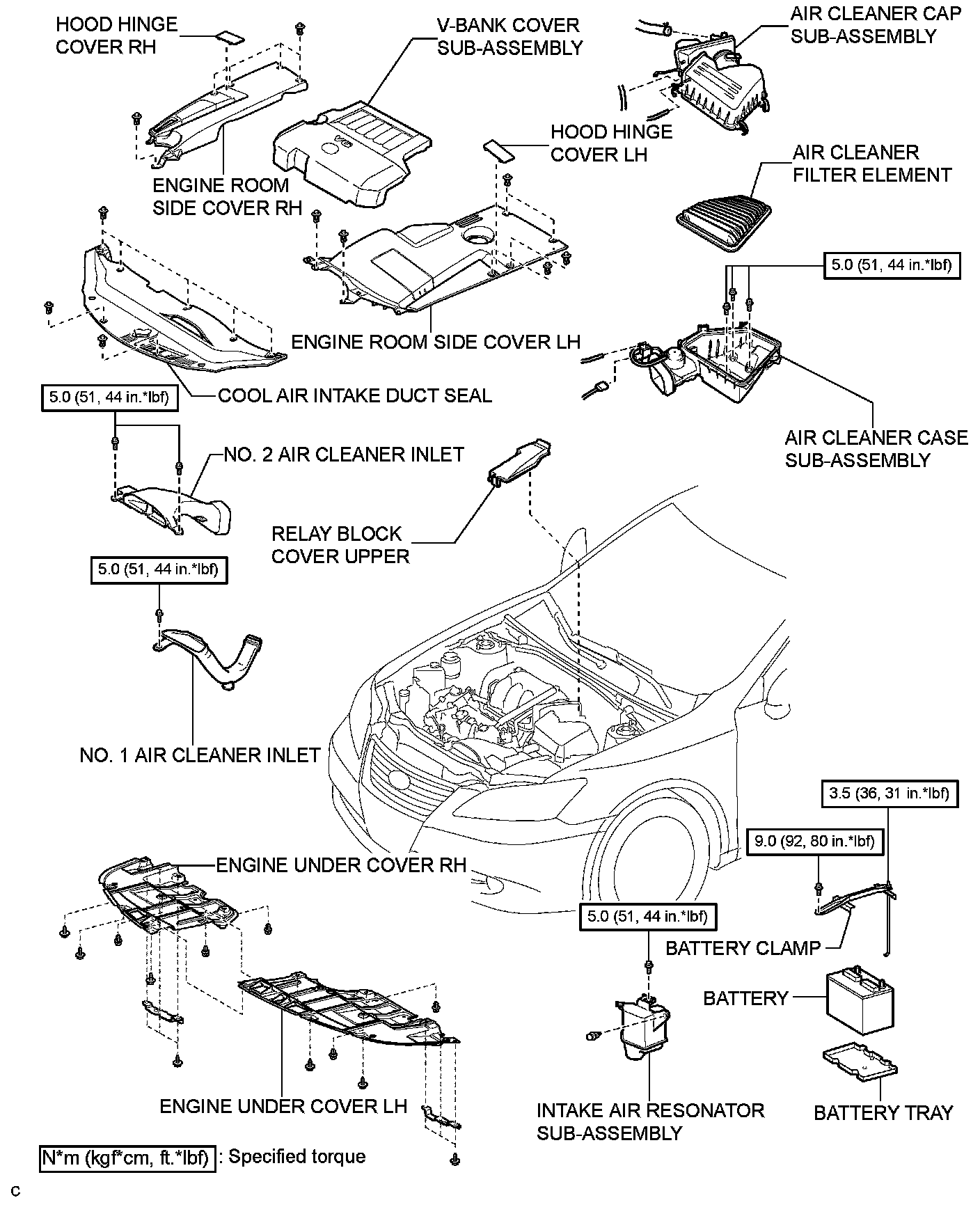

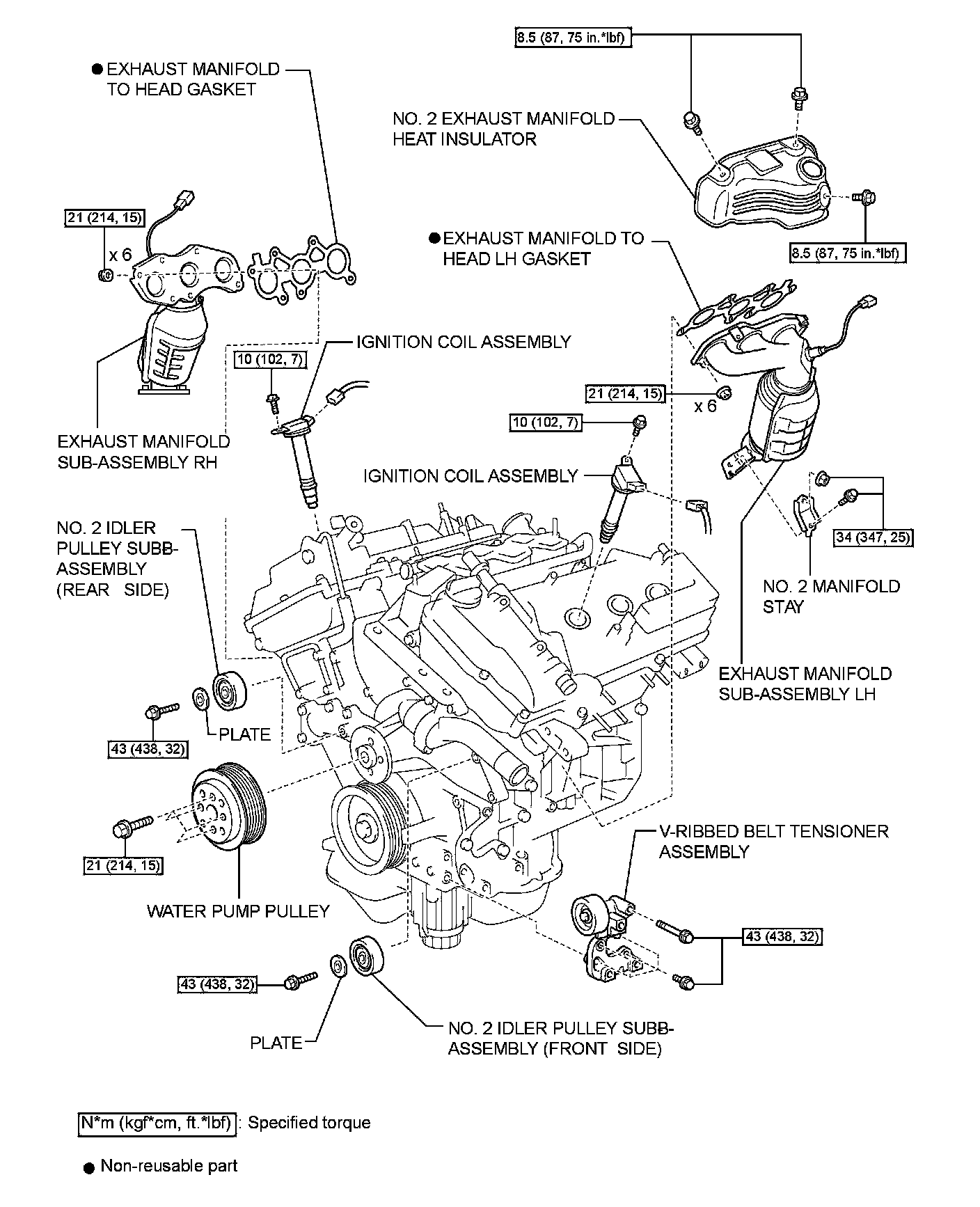

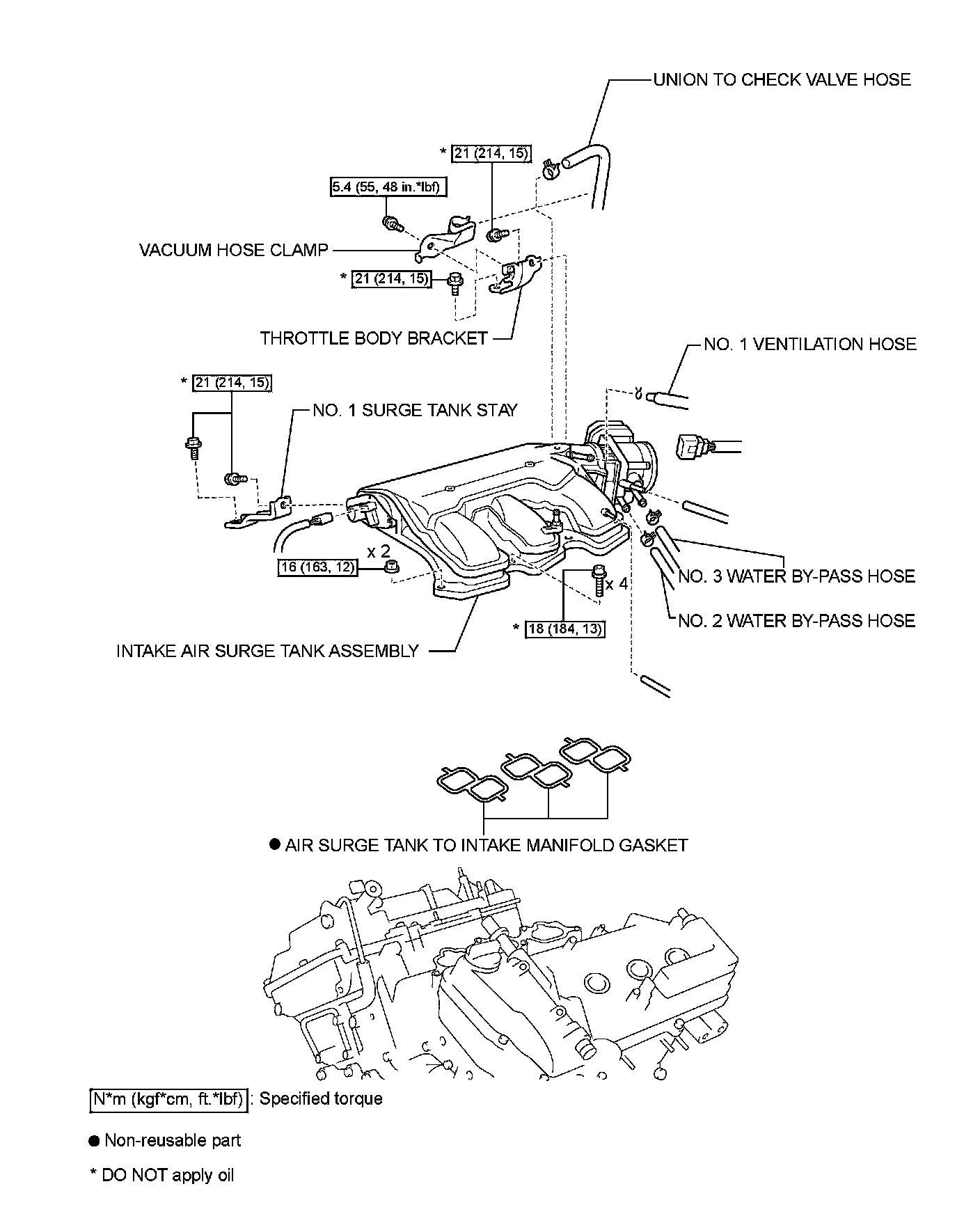

COMPONENTS
